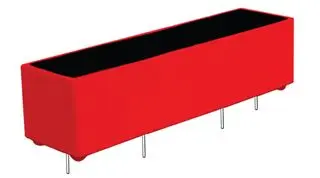

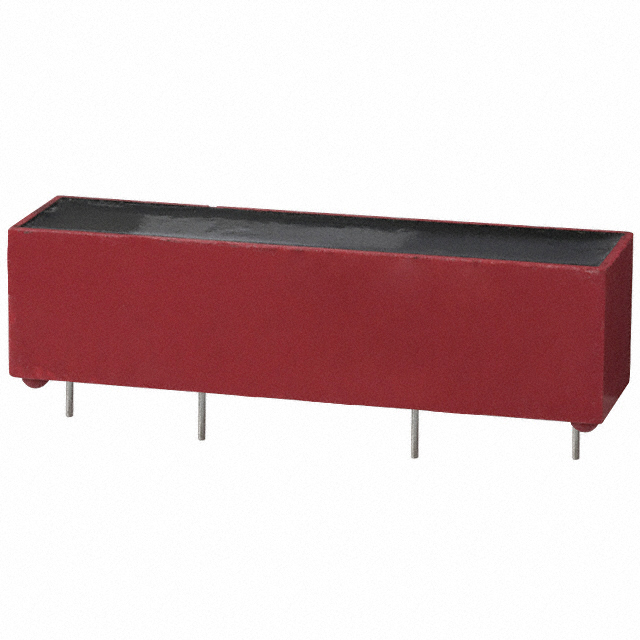

5501 Series
Manufacturer: COTO TECHNOLOGY
Beta
⌘K
RELAY REED SPST 3A 24V
| Part | Coil Resistance | Termination Style | Must Operate Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Coil Voltage | Features | Contact Rating (Current) | Coil Type | Mounting Type | Must Release Voltage | Switching Voltage [Max] | Coil Current | Contact Form | Operate Time | Release Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 COTO TECHNOLOGY | 575 Ohms | PC Pin | 18 VDC | 85 °C | -20 ░C | 24 VDC | EMI Shielded | 3 A | Non Latching | Through Hole | 2 VDC | 7500 VDC 7500 VAC | 41.7 mA | SPST-NO (1 Form A) | 3 ms | 3 ms |
 COTO TECHNOLOGY | 40 Ohms | PC Pin | 3.75 VDC | 85 °C | -20 ░C | 5 VDC | EMI Shielded | 3 A | Non Latching | Through Hole | 0.5 VDC | 7500 VDC 7500 VAC | 125 mA | SPST-NO (1 Form A) | 3 ms | 3 ms |
 COTO TECHNOLOGY | 175 Ohms | PC Pin | 9 VDC | 85 °C | -20 ░C | 12 VDC | EMI Shielded | 3 A | Non Latching | Through Hole | 1 VDC | 7500 VDC 7500 VAC | 68.6 mA | SPST-NO (1 Form A) | 3 ms | 3 ms |
