01070 Series

Catalog

ROTARY ENCODER OPTICAL 4096PPR

...

Part	Termination Style	Rotational Life (Cycles Min) [Min]	Orientation	Pulses per Revolution	Output Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Encoder Type	Mounting Type	Actuator Type
Sensata-BEI Encoders 01070-581	Connector	7.5B	User Selectable	4096	Quadrature with Index (Incremental)	28 V	5 V	Optical	Chassis Mount	Hole for Shaft
Sensata-BEI Encoders 01070-863	Connector	7.5B	User Selectable	100	Quadrature with Index (Incremental)	28 V	5 V	Optical	Chassis Mount	Hole for Shaft

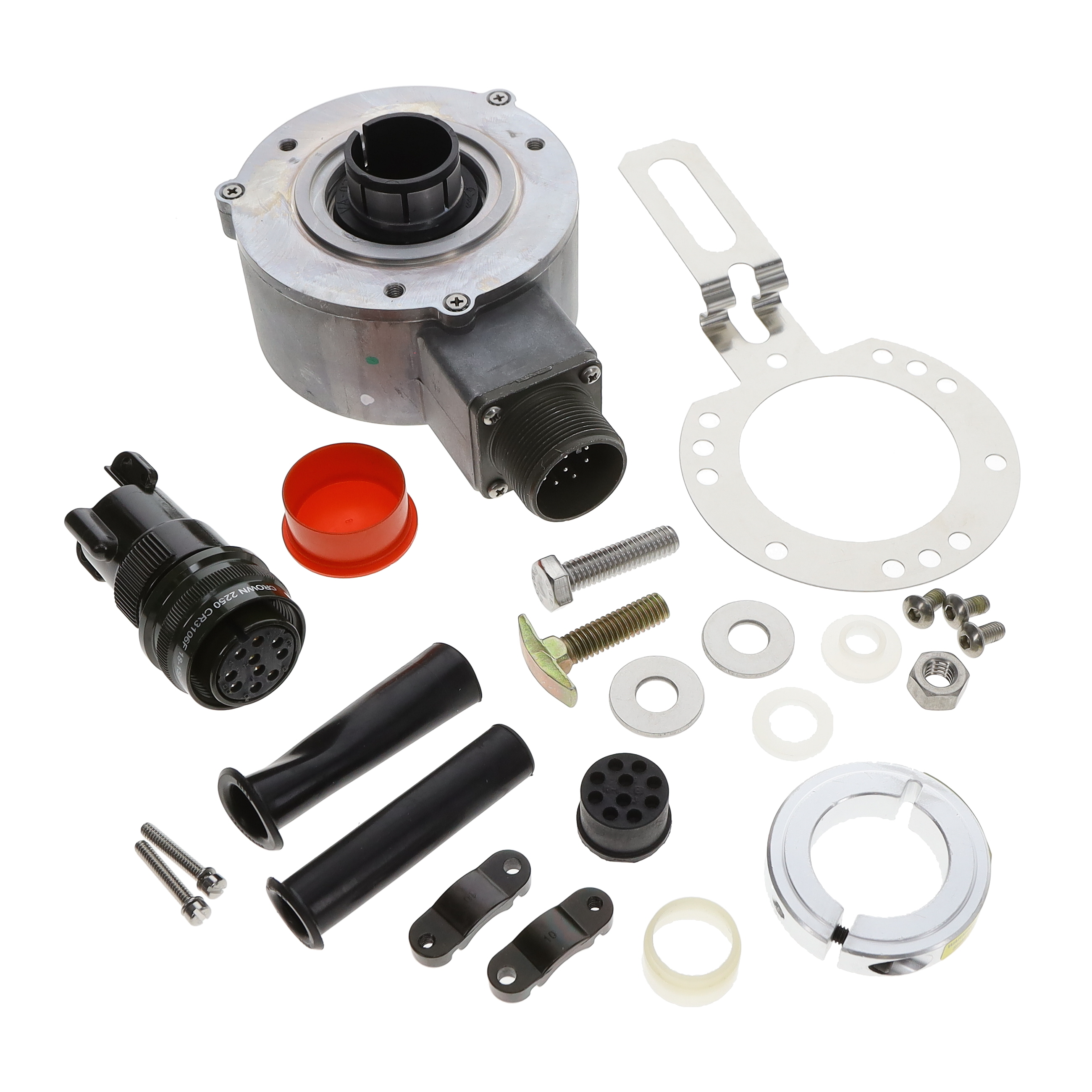

Sensata-BEI Encoders 01070-120	Connector	7.5B	User Selectable	1024	Quadrature with Index (Incremental)	28 V	5 V	Incremental	Servo Mount	Hole for Shaft
Sensata-BEI Encoders 01070-509	Connector	7.5B	User Selectable	100	Quadrature with Index (Incremental)	28 V	5 V	Optical	Chassis Mount	Hole for Shaft
Sensata-BEI Encoders 01070-1206	Connector	7.5B	User Selectable	1024	Quadrature with Index (Incremental)	28 V	5 V	Incremental	Chassis Mount	Hole for Shaft
Sensata-BEI Encoders 01070-319	Connector	7.5B	User Selectable	2048	Quadrature with Index (Incremental)	28 V	5 V	Optical	Chassis Mount	Hole for Shaft
Sensata-BEI Encoders 01070-294	Connector	7.5B	User Selectable	1024	Quadrature with Index (Incremental)	28 V	5 V	Optical	Chassis Mount	Hole for Shaft
Sensata-BEI Encoders 01070-273	Connector	7.5B	User Selectable	360	Quadrature with Index (Incremental)	28 V	5 V	Optical	Chassis Mount	Hole for Shaft

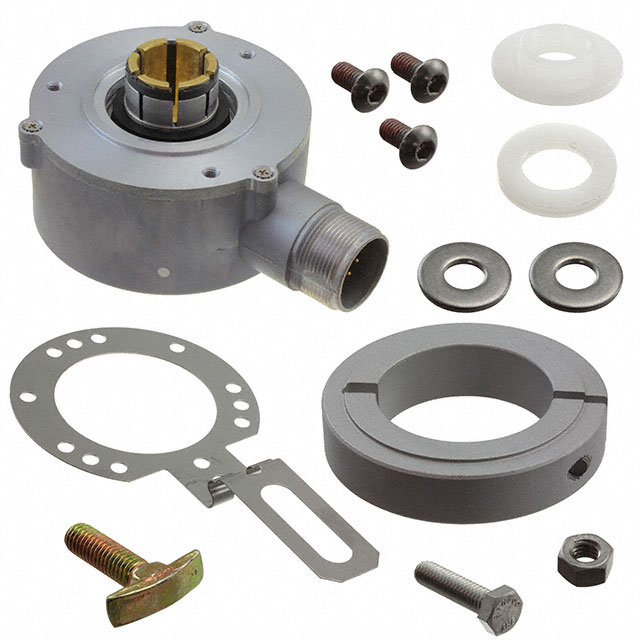

Sensata-BEI Encoders 01070-232	Connector	7.5B	User Selectable	5000	Quadrature with Index (Incremental)	28 V	5 V	Optical	Chassis Mount	Hole for Shaft
Sensata-BEI Encoders 01070-230	Connector	7.5B	User Selectable	500	Quadrature with Index (Incremental)	28 V	5 V	Optical	Chassis Mount	Hole for Shaft
