1877285 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

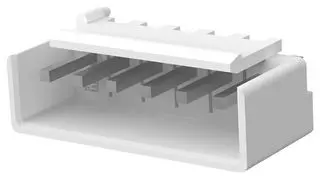

CONNECTOR, HEADER, 6POS, 1ROW, 3.96MM
| Part | Applications | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Style | Connector Type | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Shrouding | Termination | Insulation Height | Insulation Height | Contact Finish - Post | Fastening Type | Features | Overall Contact Length | Overall Contact Length | Contact Length - Mating | Contact Length - Mating | Material Flammability Rating | Voltage Rating | Contact Material | Insulation Color | Contact Shape | Mounting Type | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Number of Positions | Insulation Material | Contact Length - Post | Contact Length - Post | Current Rating (Amps) | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | General Purpose Industrial Lighting | 39.4 çin | 1 çm | Board to Cable/Wire | Header | 39.4 µin | 1 µm | Male Pin | 105 ░C | -25 °C | Shrouded - 4 Wall | Solder | 0.472 " | 12 mm | Tin | Locking Ramp | Board Guide | 14.4 mm | 0.567 in | 7.77 mm | 0.306 in | UL94 V-0 | 250 VAC | Brass | White | Square | Through Hole | 3.96 mm | 0.156 in | All | 6 | Polybutylene Terephthalate (PBT) Glass Filled | 0.142 in | 3.6 mm | 7.5 A | 1 |

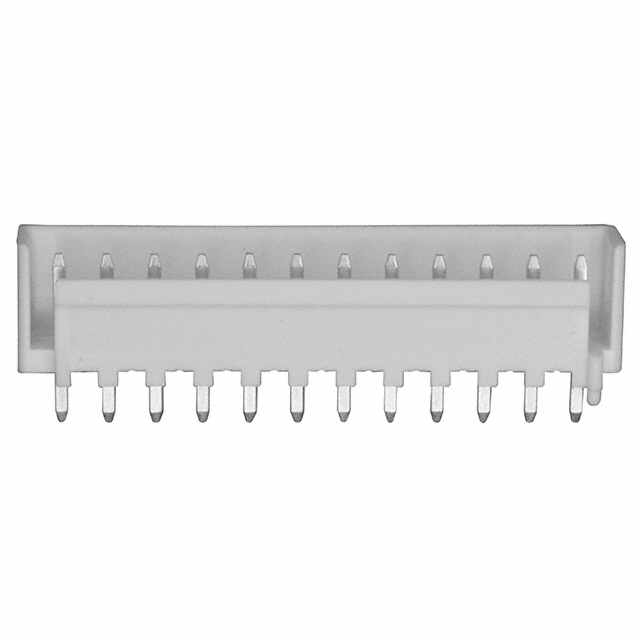

 TE Connectivity AMP Connectors | General Purpose Industrial Lighting | 39.4 çin | 1 çm | Board to Cable/Wire | Header | 39.4 µin | 1 µm | Male Pin | 105 ░C | -25 °C | Shrouded - 4 Wall | Solder | 0.472 " | 12 mm | Tin | Locking Ramp | Board Guide | 14.4 mm | 0.567 in | 7.77 mm | 0.306 in | UL94 V-0 | 250 VAC | Brass | White | Square | Through Hole | 3.96 mm | 0.156 in | All | 12 | Polybutylene Terephthalate (PBT) Glass Filled | 0.142 in | 3.6 mm | 7.5 A | 1 |

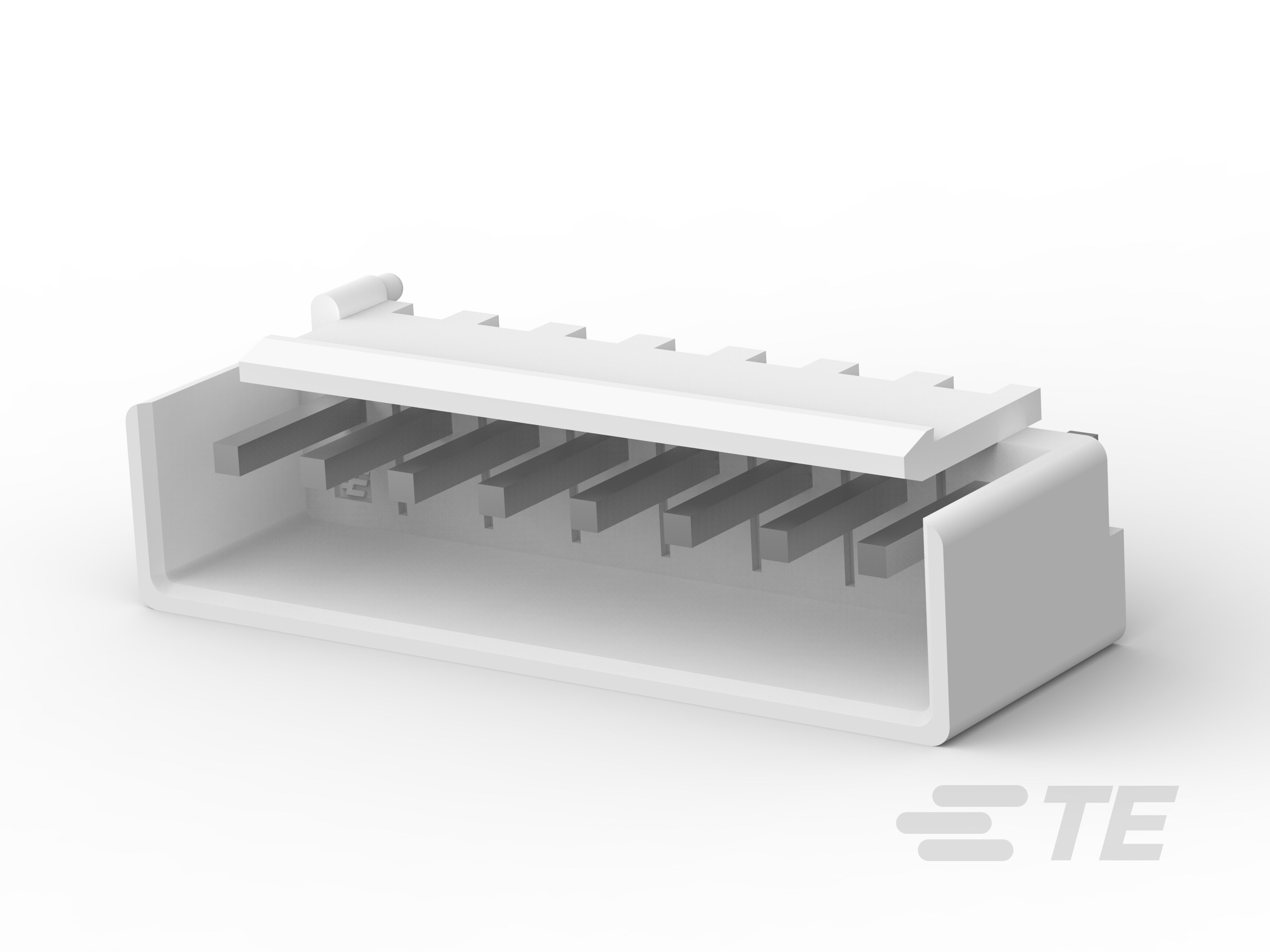

 TE Connectivity AMP Connectors | General Purpose Industrial Lighting | 39.4 çin | 1 çm | Board to Cable/Wire | Header | 39.4 µin | 1 µm | Male Pin | 105 ░C | -25 °C | Shrouded - 4 Wall | Solder | 0.472 " | 12 mm | Tin | Locking Ramp | Board Guide | 14.4 mm | 0.567 in | 7.77 mm | 0.306 in | UL94 V-0 | 250 VAC | Brass | White | Square | Through Hole | 3.96 mm | 0.156 in | All | 8 | Polybutylene Terephthalate (PBT) Glass Filled | 0.142 in | 3.6 mm | 7.5 A | 1 |
