VM3CQ Series

Catalog

SWITCH LIMIT SPDT 16A 125V

Part	Differential Travel	Differential Travel	Operating Position	Operating Position	Current Rating (Amps)	Switch Function	Pretravel	Pretravel	Operating Force	Release Force	Mounting Type	Voltage Rating - AC	Overtravel [custom]	Overtravel [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Termination Style	Circuit	Actuator Type
CIT Relay and Switch VM3CQF1802L00	0.016 in	0.4 mm	0.562 in	14.3 mm	16 A	On-Mom	0.055 in	1.4 mm	180 gf	90 gf	Chassis Mount	125 V	1.1 mm	0.045 "	120 °C	-40 C	10000000 Cycles	Quick Connect	SPDT	Round (Pin Plunger)

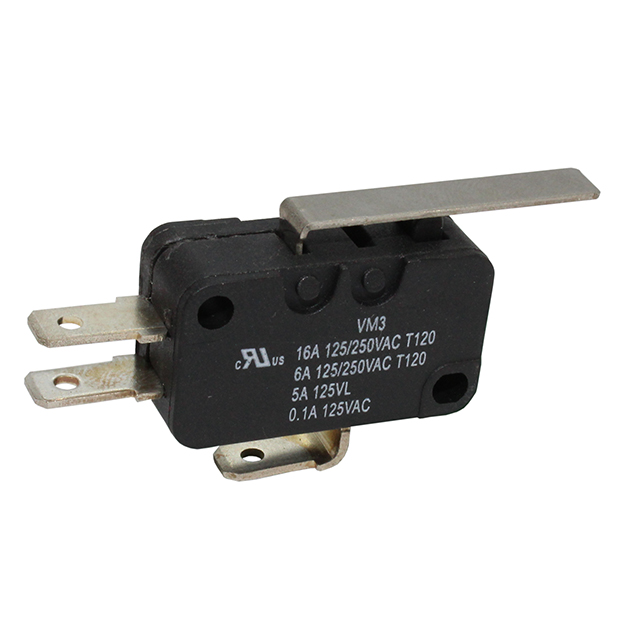

CIT Relay and Switch VM3CQF0802L03	0.025 in	0.6 mm	0.551 in	14 mm	16 A	On-Mom	0.131 in	3.3 mm	35 gf	18 gf	Chassis Mount	125 V	2.3 mm	0.09 "	120 °C	-40 C	10000000 Cycles	Quick Connect	SPDT	Lever Straight

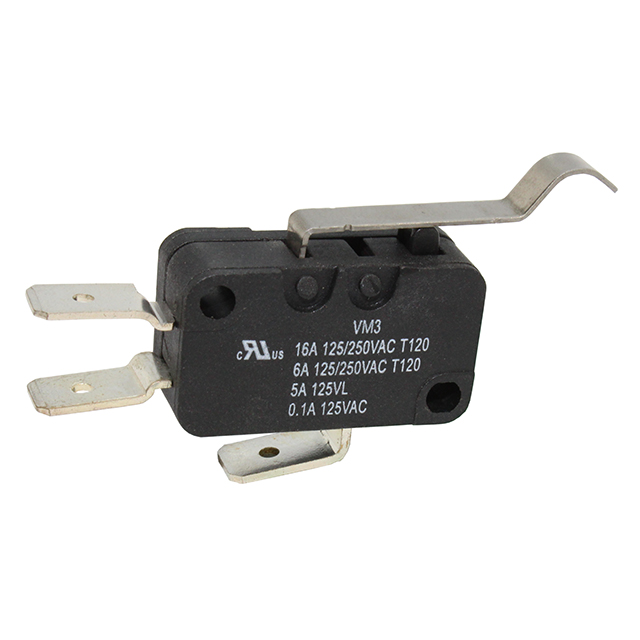

CIT Relay and Switch VM3CQF1801L02	0.027 in	0.7 mm	0.697 in	17.7 mm	16 A	On-Mom			80 gf		Chassis Mount	125 V	2.3 mm	0.09 "	120 °C	-40 C	10000000 Cycles	Quick Connect - 0.250" (6.3mm)	SPDT	Lever Simulated Roller

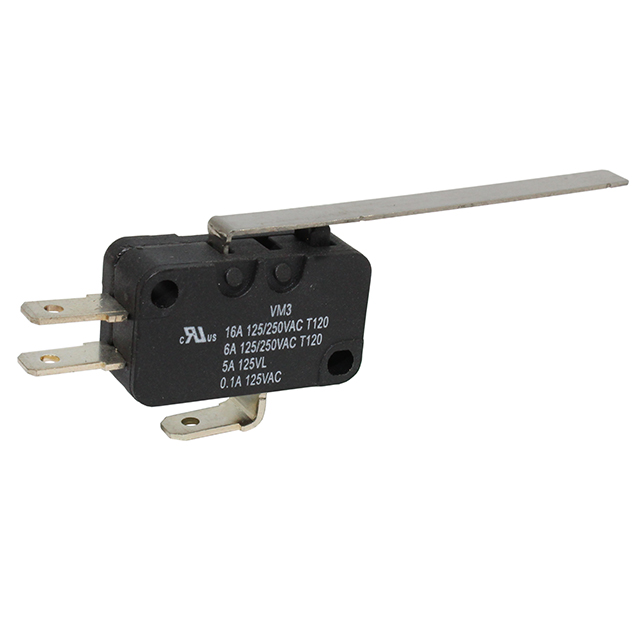

CIT Relay and Switch VM3CQF0802L07	0.075 in	1.9 mm	0.445 in	11.3 mm	16 A	On-Mom	0.303 in	7.7 mm	18 gf	10 gf	Chassis Mount	125 V	7.1 mm	0.278 "	120 °C	-40 C	10000000 Cycles	Quick Connect	SPDT	Lever Straight
