R22242 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

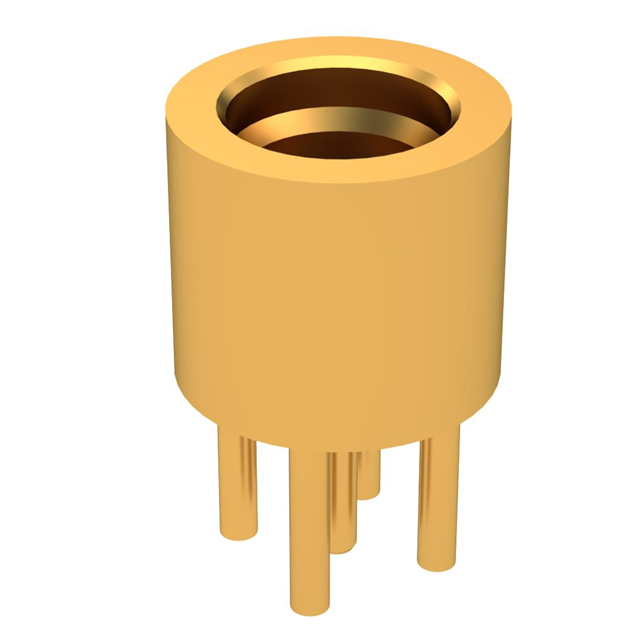

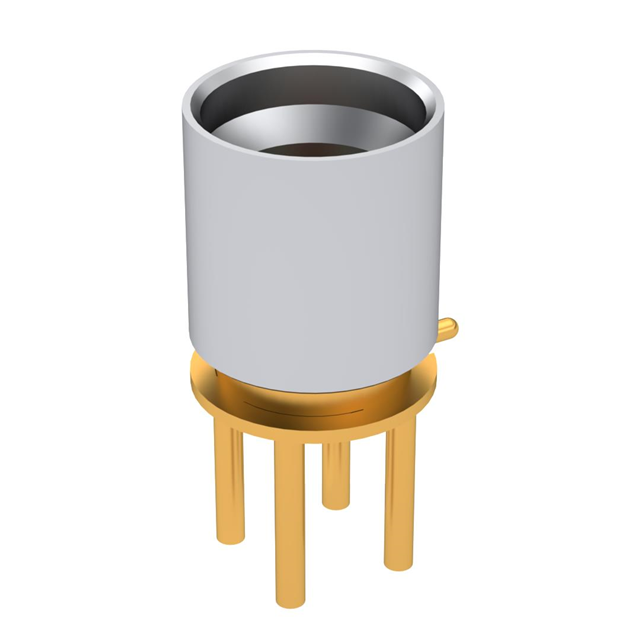

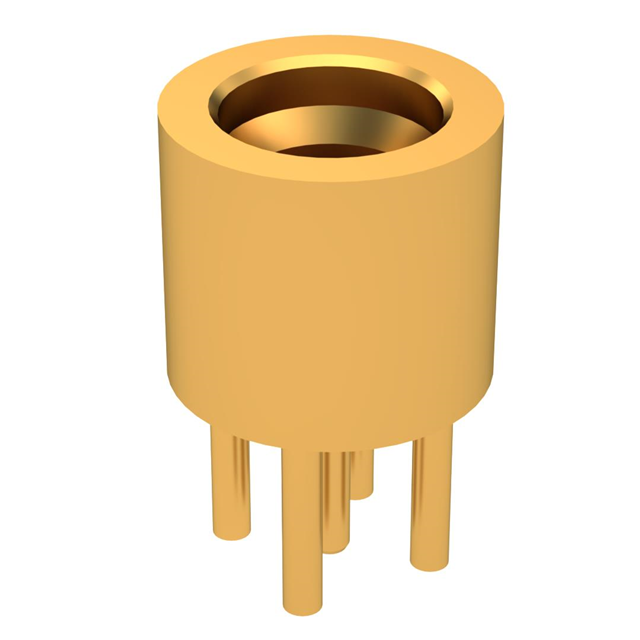

SMP M STR PCB LD C100
| Part | Body Material | Voltage Rating | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Mating Cycles | Center Contact Plating | Frequency - Max [Max] | Fastening Type | Housing Color | Center Contact Material | Impedance | Number of Ports | Contact Termination | Shield Termination | Mounting Type | Features | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Brass Stainless Steel | 335 V | Gold | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 500 | Gold | 18 GHz | Snap-On | Gold | Beryllium Copper | 50 Ohms | 1 | Solder | Solder | Through Hole | Limited Detent | Receptacle Male Pin |
 Radiall USA, Inc. | Stainless Steel | 335 V | Gold | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 1000 | Gold | 40 GHz | Snap-On | Gold | Beryllium Copper | 50 Ohms | 1 | Solder | Solder | Through Hole | Smooth Bore | Receptacle Male Pin |
 Radiall USA, Inc. | Stainless Steel | 335 V | Gold | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 1000 | Gold | 40 GHz | Snap-On | Gold | Beryllium Copper | 50 Ohms | 1 | Solder | Solder | Through Hole | Smooth Bore | Receptacle Male Pin |
Radiall USA, Inc. | Brass Stainless Steel | 335 V | Gold | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 1000 | Gold | 40 GHz | Snap-On | Gold Silver | Beryllium Copper | 50 Ohms | 1 | Solder | Solder | Through Hole | Smooth Bore | Receptacle Male Pin |
 Radiall USA, Inc. | Stainless Steel | 335 V | Gold | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | 12 GHz | Snap-On | Gold | Beryllium Copper | 50 Ohms | 1 | Solder | Solder | Panel Mount Through Hole | Full Detent | Receptacle Male Pin | |
 Radiall USA, Inc. | Brass Stainless Steel | 250 V | Gold | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | 40 GHz | Snap-On | Gold Silver | Beryllium Copper | 50 Ohms | 1 | Solder | Solder | Through Hole | Smooth Bore | Receptacle Male Pin | |
Radiall USA, Inc. | Stainless Steel | 335 V | Gold | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | 40 GHz | Snap-On | Gold | Beryllium Copper | 50 Ohms | 1 | Solder | Solder | Through Hole | Full Detent | Receptacle Male Pin | |
Radiall USA, Inc. | Brass Stainless Steel | 335 V | Gold | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 500 | Gold | 40 GHz | Snap-On | Gold Silver | Beryllium Copper | 50 Ohms | 1 | Solder | Solder | Through Hole | Limited Detent | Receptacle Male Pin |
 Radiall USA, Inc. | Brass Stainless Steel | 335 V | Gold | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | 18 GHz | Snap-On | Gold | Beryllium Copper | 50 Ohms | 1 | Solder | Solder | Through Hole | Full Detent | Receptacle Male Pin | |
 Radiall USA, Inc. | Stainless Steel | 335 V | Gold | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 500 | Gold | 12 GHz | Snap-On | Gold | Beryllium Copper | 50 Ohms | 1 | Solder | Solder | Panel Mount Through Hole | Limited Detent | Receptacle Male Pin |
