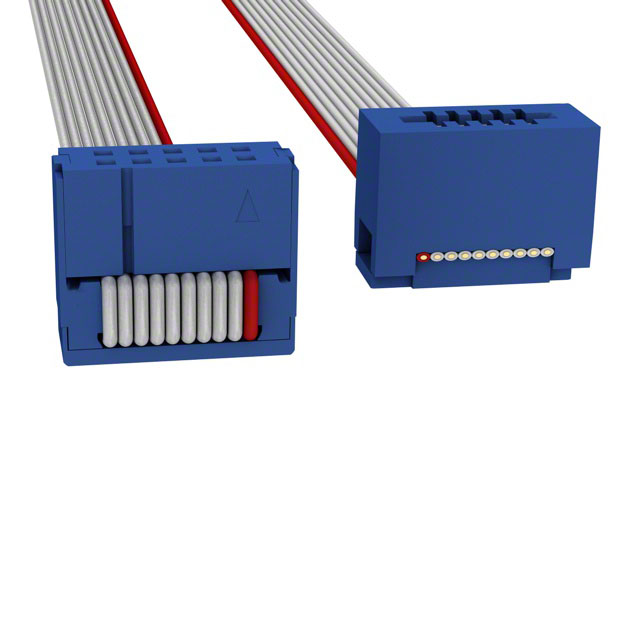

C3BEG-1 Series

Catalog

IDC CABLE - CSR10G/AE10M/CCE10G

Part	Connector Type	Pitch - Cable	Pitch - Cable	Cable Termination	Pitch - Connector	Pitch - Connector	Contact Finish	Shielding	Number of Positions	Length [x]	Length [x]	Color	Number of Rows [custom]	Features	Contact Finish Thickness	Contact Finish Thickness	Length	Length
CW Industries C3BEG-1018M	Socket to Card Edge	0.05 in	1.27 mm	IDC	0.1 in	2.54 mm	Gold	Unshielded	10	457.2 mm	1.5 ft	Multiple Ribbon	2	Strain Relief	0.25 Ám	10 Áin
CW Industries C3BEG-1018G	Socket to Card Edge	0.05 in	1.27 mm	IDC	0.1 in	2.54 mm	Gold	Unshielded	10	457.2 mm	1.5 ft		2	Strain Relief	0.25 Ám	10 Áin
CW Industries C3BEG-1036G	Socket to Card Edge	0.05 in	1.27 mm	IDC	0.1 in	2.54 mm	Gold	Unshielded	10				2	Strain Relief	0.25 Ám	10 Áin	91.44 cm	3 ft
CW Industries C3BEG-1036M	Socket to Card Edge	0.05 in	1.27 mm	IDC	0.1 in	2.54 mm	Gold	Unshielded	10			Multiple Ribbon	2	Strain Relief	0.25 Ám	10 Áin	91.44 cm	3 ft
