S2P-VH(L Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

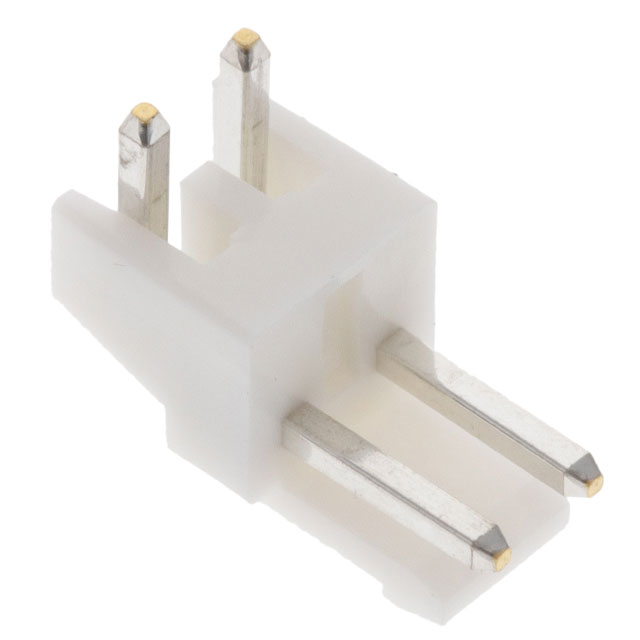

CONN HEADER R/A 2POS 3.96MM
| Part | Pitch - Mating | Pitch - Mating | Insulation Material | Material Flammability Rating | Insulation Color | Current Rating (Amps) | Contact Length - Post | Contact Length - Post | Contact Finish - Post | Mounting Type | Voltage Rating | Insulation Height | Insulation Height | Fastening Type | Termination | Contact Length - Mating | Contact Length - Mating | Number of Positions Loaded | Contact Shape | Connector Type | Shrouding | Style | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Number of Rows | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 3.96 mm | 0.156 in | Nylon 6/6 Polyamide (PA66) | UL94 V-0 | Natural | 10 A | 0.142 in | 3.6 mm | Tin | Right Angle Through Hole | 250 V | 0.335 " | 8.51 mm | Locking Ramp | Solder | 0.303 in | 7.7 mm | All | Square | Header | Shrouded - 1 Wall | Board to Cable/Wire | Male Pin | 85 °C | -25 °C | Brass | 1 | 2 |
