Manufacturer: Tensility International Corp

Catalog

Catalog

HOOK-UP STRND 14AWG PURPLE

...

Part	Jacket (Insulation) Material	Voltage	Ratings	Length	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Conductor Strand [diameter]	Conductor Strand [custom]	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness [z]	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Jacket Color	Connector Type	Usage	Shielding	Color	Spool Size [x]	Spool Size [x]	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Style	Mounting Type	Number of Positions/Contacts	Features
Tensility International Corp 30-02528	Fluorinated Ethylene-Propylene (FEP)	300 VDC	UL Style 1332	305 m	1000.7 ft	0.099 in	2.51 mm	14.5 AWG	0.0146 "	19	Copper Tinned	0.33 mm	0.013 "	-80 °C	200 °C	Hook-Up	Purple

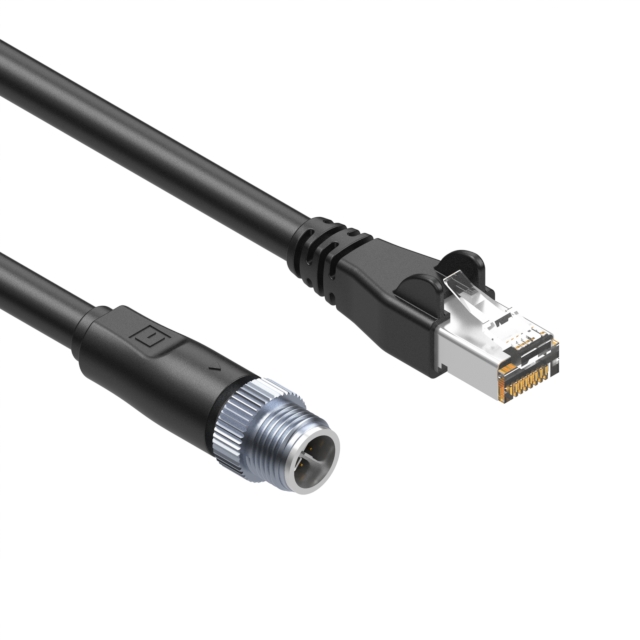

Tensility International Corp 10-03965				10 m	32.81 ft											Round		Circular 08 pos Male to RJ45 8p8c	Cat6a Industrial Environments - IP67	Shielded	Black
Tensility International Corp 30-02595	Fluorinated Ethylene-Propylene (FEP)	300 VDC	UL Style 1332	1 m 305 m	3.28 ft 1000.7 ft	0.041 in	1.04 mm	28 AWG			Copper Tinned	0.33 mm	0.013 "	-80 °C	200 °C	Hook-Up	Blue					305 m	1000.7 ft	98.43 ft 498.7 ft	30 m 152 m	7	0.005 in

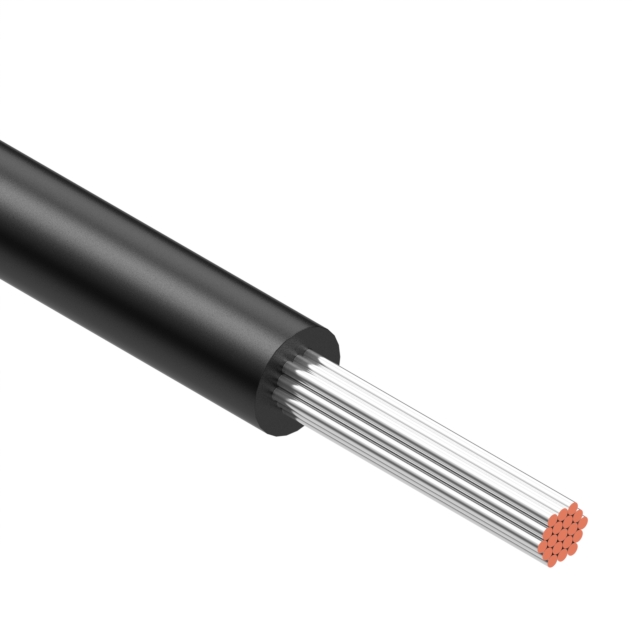

Tensility International Corp 30-02562	Fluorinated Ethylene-Propylene (FEP)	300 VDC	UL Style 1332	1 m 305 m	3.28 ft 1000.7 ft			22 AWG			Copper Tinned	0.33 mm	0.013 "	-80 °C	200 °C	Hook-Up	Black					305 m	1000.7 ft	98.43 ft 498.7 ft	30 m 152 m	19	0.0059 in	0.056 in	1.42 mm

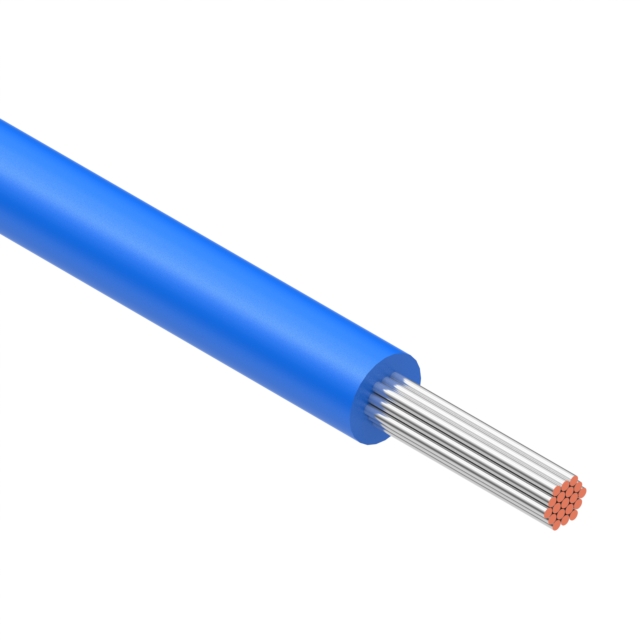

Tensility International Corp 30-02535	Fluorinated Ethylene-Propylene (FEP)	300 VDC	UL Style 1332	1 m 305 m	3.28 ft 1000.7 ft	0.085 in	2.16 mm	16 AWG			Copper Tinned	0.33 mm	0.013 "	-80 °C	200 °C	Hook-Up	Blue					305 m	1000.7 ft	98.43 ft 498.7 ft	30 m 152 m	19	0.0118 in
Tensility International Corp 30-02563	Fluorinated Ethylene-Propylene (FEP)	300 VDC	UL Style 1332	1 m 305 m	3.28 ft 1000.7 ft			22 AWG			Copper Tinned	0.33 mm	0.013 "	-80 °C	200 °C	Hook-Up	White					305 m	1000.7 ft	98.43 ft 498.7 ft	30 m 152 m	19	0.0059 in	0.056 in	1.42 mm

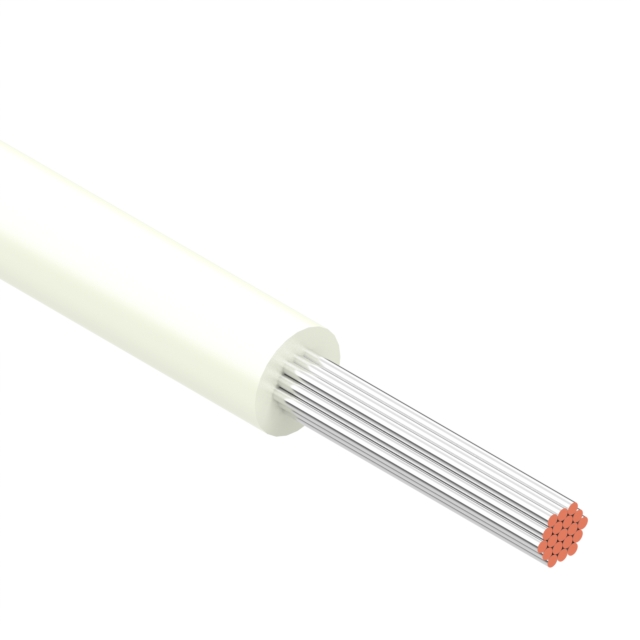

Tensility International Corp 30-02553	Fluorinated Ethylene-Propylene (FEP)	300 VDC	UL Style 1332	1 m 305 m	3.28 ft 1000.7 ft	0.064 in	1.63 mm	20 AWG	0.0075 "		Copper Tinned	0.33 mm	0.013 "	-80 °C	200 °C	Hook-Up	White					305 m	1000.7 ft	98.43 ft 498.7 ft	30 m 152 m	19

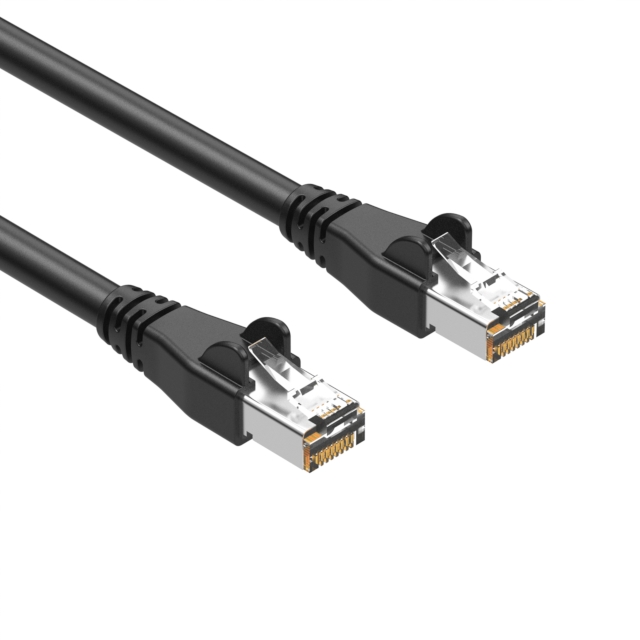

Tensility International Corp 10-03975				3 m	9.84 ft											Round Cable		Plug to Plug		Shielded	Black									Cat6a	Free Hanging (In-Line)	8p8c (RJ45 Ethernet)	26 AWG

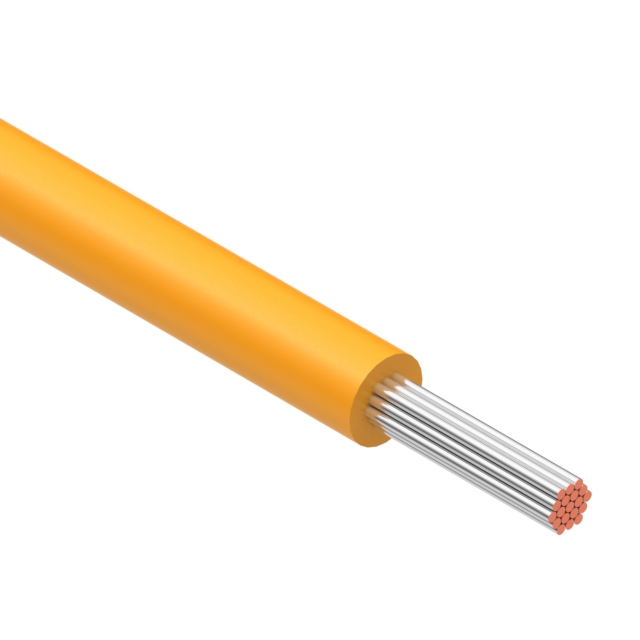

Tensility International Corp 30-02537	Fluorinated Ethylene-Propylene (FEP)	300 VDC	UL Style 1332	305 m	1000.7 ft	0.085 in	2.16 mm	16 AWG			Copper Tinned	0.33 mm	0.013 "	-80 °C	200 °C	Hook-Up	Orange									19	0.0118 in
Tensility International Corp 30-02574	Fluorinated Ethylene-Propylene (FEP)	300 VDC	UL Style 1332	1 m 305 m	3.28 ft 1000.7 ft	0.05 "	1.27 mm	24 AWG	0.0079 in	7 Strands	Copper Tinned	0.33 mm	0.013 "	-80 °C	200 °C	Hook-Up	Yellow					305 m	1000.7 ft	98.43 ft 498.7 ft	30 m 152 m
