0600-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

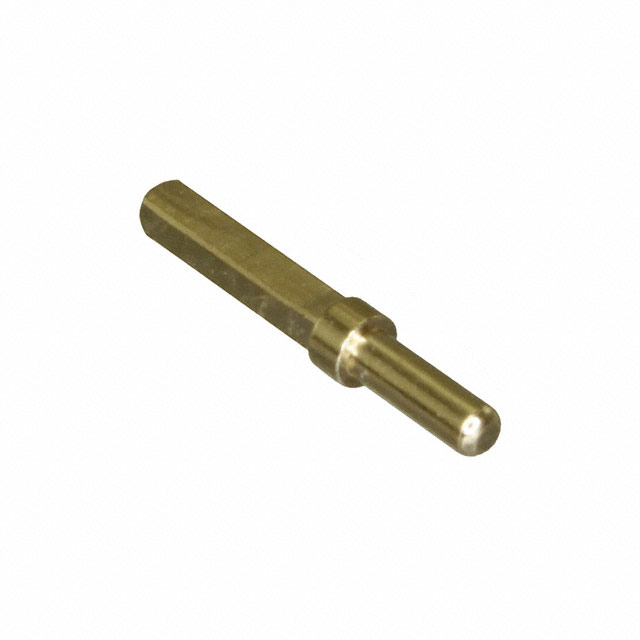

CONN PC PIN CIRC 0.048DIA GOLD
| Part | Flange Diameter [diameter] | Flange Diameter [diameter] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Contact Finish | Terminal Style | Contact Material | Termination | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Overall | Length - Overall | Length - Above Flange | Length - Above Flange [x] | Length - Below Flange [x] | Length - Below Flange [x] | Contact Finish Thickness | Contact Finish Thickness | Insulation | Terminal Type | Mounting Type | Pin Size - Below Flange | Pin Size - Below Flange |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 1.77 mm | 0.07 in | 1.22 mm | 0.048 in | Gold | Double End | Brass Alloy | Solder | 1.32 mm | 0.052 in | 11.18 mm | 0.44 in | 3.81 mm | 0.15 in | 6.35 mm | 0.25 " | 20 µin | 0.51 µm | Non-Insulated | PC Pin | Through Hole | 1.19 mm | 0.047 in |
 Mill-Max Manufacturing Corp. | 1.78 mm | 0.07 in | 1.22 mm | 0.048 in | Tin | Double End | Brass Alloy | Solder | 1.32 mm | 0.052 in | 11.18 mm | 0.44 in | 3.81 mm | 0.15 in | 6.35 mm | 0.25 " | 200 Áin | 5.08 Ám | Non-Insulated | PC Pin | Through Hole | 1.19 mm | 0.047 in |
