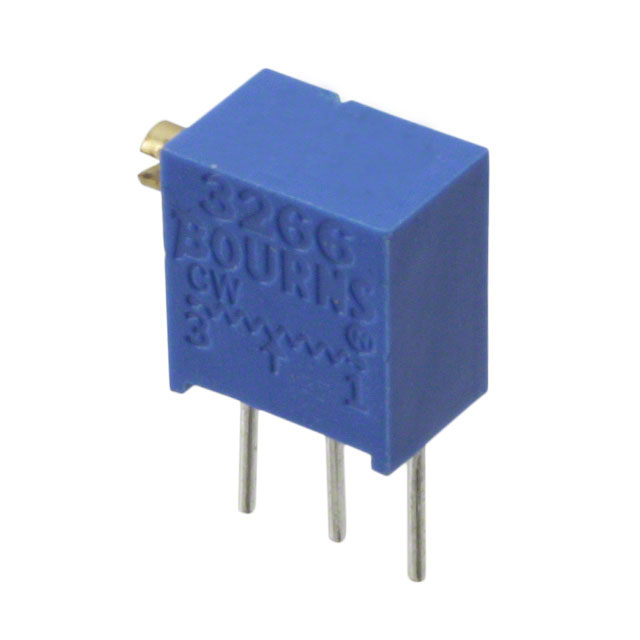

3266Z Series

Catalog

TRIMMER 100OHM 0.25W PC PIN SIDE

Part	Mounting Type	Temperature Coefficient	Power (Watts)	Power (Watts)	Resistance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Tolerance	Adjustment Type	Number of Turns	Resistive Material	Termination Style
Bourns Inc. 3266Z-1-101	Through Hole	100 ppm/°C	0.25 W	0.25 W	100 Ohms	4.32 mm	0.17 in	0.25 in	6.35 mm	10 %	Side Adjustment	12	Cermet	PC Pins
Bourns Inc. 3266Z-1-101LF	Through Hole	100 ppm/°C	0.25 W	0.25 W	100 Ohms	4.32 mm	0.17 in	0.25 in	6.35 mm	10 %	Side Adjustment	12	Cermet	PC Pins
Bourns Inc. 3266Z-1-100LF	Through Hole	100 ppm/°C	0.25 W	0.25 W	10 Ohms	4.32 mm	0.17 in	0.25 in	6.35 mm	10 %	Side Adjustment	12	Cermet	PC Pins
Bourns Inc. 3266Z-1-103LF	Through Hole	100 ppm/°C	0.25 W	0.25 W	10000 Ohms	4.32 mm	0.17 in	0.25 in	6.35 mm	10 %	Side Adjustment	12	Cermet	PC Pins
Bourns Inc. 3266Z-1-500	Through Hole	100 ppm/°C	0.25 W	0.25 W	50 Ohms	4.32 mm	0.17 in	0.25 in	6.35 mm	10 %	Side Adjustment	12	Cermet	PC Pins
Bourns Inc. 3266Z-1-100	Through Hole	100 ppm/°C	0.25 W	0.25 W	10 Ohms	4.32 mm	0.17 in	0.25 in	6.35 mm	10 %	Side Adjustment	12	Cermet	PC Pins
Bourns Inc. 3266Z-1-501	Through Hole	100 ppm/°C	0.25 W	0.25 W	0.5 kOhms	4.32 mm	0.17 in	0.25 in	6.35 mm	10 %	Side Adjustment	12	Cermet	PC Pins
Bourns Inc. 3266Z-1-202LF	Through Hole	100 ppm/°C	0.25 W	0.25 W	2 kOhms	4.32 mm	0.17 in	0.25 in	6.35 mm	10 %	Side Adjustment	12	Cermet	PC Pins
Bourns Inc. 3266Z-1-103	Through Hole	100 ppm/°C	0.25 W	0.25 W	10000 Ohms	4.32 mm	0.17 in	0.25 in	6.35 mm	10 %	Side Adjustment	12	Cermet	PC Pins
Bourns Inc. 3266Z-1-504	Through Hole	100 ppm/°C	0.25 W	0.25 W		4.32 mm	0.17 in	0.25 in	6.35 mm	10 %	Side Adjustment	12	Cermet	PC Pins
