LD6815 Series
Manufacturer: Freescale Semiconductor - NXP
Beta
⌘K
IC REG LINEAR 2.8V 150MA 5TSOP
| Part | Current - Output | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Number of Regulators | Supplier Device Package | PSRR | Current - Quiescent (Iq) | Output Configuration | Voltage Dropout (Max) [Max] | Voltage - Output (Min/Fixed) | Protection Features | Mounting Type | Current - Supply (Max) [Max] | Voltage - Input (Max) [Max] | Output Type | Control Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

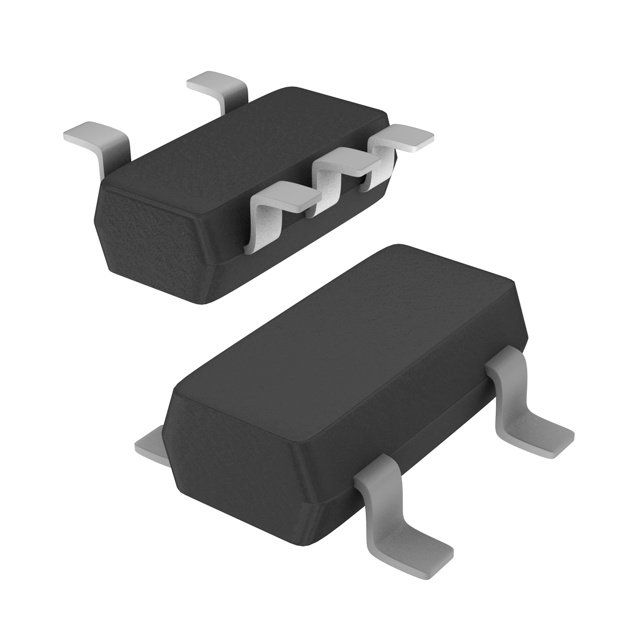

 Freescale Semiconductor - NXP | 150 mA | SC-74A SOT-753 | 85 °C | -40 °C | 1 | 5-TSOP | 75 dB | 35 µA | Positive | 0.25 V | 2.8 V | Over Current Transient Voltage | Surface Mount | 150 µA | 5.5 V | 1.81 mOhm | Enable |
Freescale Semiconductor - NXP | 150 mA | SC-74A SOT-753 | 85 °C | -40 °C | 1 | 5-TSOP | 75 dB | 35 µA | Positive | 0.25 V | 1.2 V | Over Current Transient Voltage | Surface Mount | 150 µA | 5.5 V | 1.81 mOhm | Enable |
Freescale Semiconductor - NXP | 150 mA | SC-74A SOT-753 | 85 °C | -40 °C | 1 | 5-TSOP | 75 dB | 35 µA | Positive | 0.25 V | Over Current Transient Voltage | Surface Mount | 150 µA | 5.5 V | 1.81 mOhm | Enable | |
Freescale Semiconductor - NXP | 150 mA | SC-74A SOT-753 | 85 °C | -40 °C | 1 | 5-TSOP | 75 dB | 35 µA | Positive | 0.25 V | 2.8 V | Over Current Transient Voltage | Surface Mount | 150 µA | 5.5 V | 1.81 mOhm | Enable |
Freescale Semiconductor - NXP | 150 mA | SC-74A SOT-753 | 85 °C | -40 °C | 1 | 5-TSOP | 75 dB | 35 µA | Positive | 0.25 V | 3.3 V | Over Current Transient Voltage | Surface Mount | 150 µA | 5.5 V | 1.81 mOhm | Enable |
Freescale Semiconductor - NXP | 150 mA | SC-74A SOT-753 | 85 °C | -40 °C | 1 | 5-TSOP | 75 dB | 35 µA | Positive | 0.25 V | 2.5 V | Over Current Transient Voltage | Surface Mount | 150 µA | 5.5 V | 1.81 mOhm | Enable |
Freescale Semiconductor - NXP | 150 mA | SC-74A SOT-753 | 85 °C | -40 °C | 1 | 5-TSOP | 75 dB | 35 µA | Positive | 0.25 V | 1.2 V | Over Current Transient Voltage | Surface Mount | 150 µA | 5.5 V | 1.81 mOhm | Enable |
Freescale Semiconductor - NXP | 150 mA | SC-74A SOT-753 | 85 °C | -40 °C | 1 | 5-TSOP | 75 dB | 35 µA | Positive | 0.25 V | 1.5 V | Over Current Transient Voltage | Surface Mount | 150 µA | 5.5 V | 1.81 mOhm | Enable |
Freescale Semiconductor - NXP | 150 mA | SC-74A SOT-753 | 85 °C | -40 °C | 1 | 5-TSOP | 75 dB | 35 µA | Positive | 0.25 V | 2.1 V | Over Current Transient Voltage | Surface Mount | 150 µA | 5.5 V | 1.81 mOhm | Enable |
Freescale Semiconductor - NXP | 150 mA | SC-74A SOT-753 | 85 °C | -40 °C | 1 | 5-TSOP | 75 dB | 35 µA | Positive | 0.25 V | 2.5 V | Over Current Transient Voltage | Surface Mount | 150 µA | 5.5 V | 1.81 mOhm | Enable |
