LM2901_XFCS Series

onsemi Description

Manufacturer: ON Semiconductor

Catalog

onsemi Description

Catalog

onsemi Description

Part	Current - Output (Typ)	Current - Input Bias (Max) [Max]	Package / Case [custom]	Package / Case [custom]	Package / Case	Type	Supplier Device Package	Mounting Type	Number of Elements	Current - Quiescent (Max) [Max]	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Input Offset (Max) [Max]	Package / Case [x]	Package / Case [y]
ON Semiconductor LM2901VDTBR2G	16 mA	0.25 µA	0.173 "	4.4 mm	14-TSSOP	General Purpose	14-TSSOP	Surface Mount	4	2.5 mA	CMOS Open-Collector TTL	125 °C	-40 °C	18 V 36 V	3 V	±1.5V	7 mV

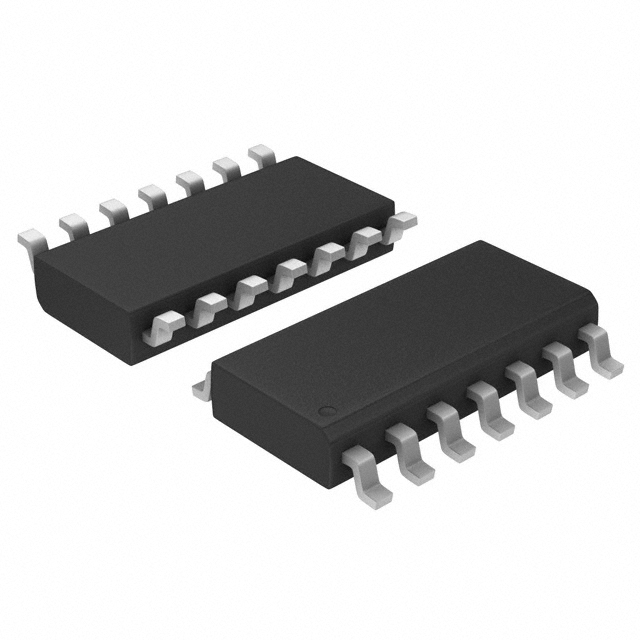

ON Semiconductor LM2901DG	16 mA	0.25 µA			14-SOIC	General Purpose		Surface Mount	4	2.5 mA	CMOS Open-Collector TTL	105 ░C	-40 °C	18 V 36 V	3 V	±1.5V	7 mV	0.154 in	3.9 mm
ON Semiconductor LM2901VDG	16 mA	0.25 µA			14-SOIC	General Purpose		Surface Mount	4	2.5 mA	CMOS Open-Collector TTL	125 °C	-40 °C	18 V 36 V	3 V	±1.5V	7 mV	0.154 in	3.9 mm
ON Semiconductor LM2901DTBR2	16 mA	0.25 µA	0.173 "	4.4 mm	14-TSSOP	General Purpose	14-TSSOP	Surface Mount	4	2.5 mA	CMOS Open-Collector TTL	105 ░C	-40 °C	18 V 36 V	3 V	±1.5V	7 mV
ON Semiconductor LM2901DR2G	16 mA	0.25 µA			14-SOIC	General Purpose		Surface Mount	4	2.5 mA	CMOS Open-Collector TTL	105 ░C	-40 °C	18 V 36 V	3 V	±1.5V	7 mV	0.154 in	3.9 mm
ON Semiconductor LM2901M	18 mA	0.25 µA			14-SOIC	General Purpose	14-SOP	Surface Mount	4	2.5 mA	DTL MOS Open-Collector TTL	85 °C	-40 °C	18 V 36 V	1 V 2 V		7 mV	0.154 in	3.9 mm
ON Semiconductor LM2901VN
ON Semiconductor LM2901VDR2G	16 mA	0.25 µA			14-SOIC	General Purpose		Surface Mount	4	2.5 mA	CMOS Open-Collector TTL	125 °C	-40 °C	18 V 36 V	3 V	±1.5V	7 mV	0.154 in	3.9 mm
ON Semiconductor LM2901MX	18 mA	0.25 µA			14-SOIC	General Purpose	14-SOP	Surface Mount	4	2.5 mA	DTL MOS Open-Collector TTL	85 °C	-40 °C	18 V 36 V	1 V 2 V		7 mV	0.154 in	3.9 mm
ON Semiconductor LM2901DR2
