TPS84259 Series

4.5V to 40V, 2A up to 15W Negative-Output Integrated Power Solution

Catalog

4.5V to 40V, 2A up to 15W Negative-Output Integrated Power Solution

Part	Current - Output (Max) [Max]	Efficiency	Type	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Control Features	Applications	Supplier Device Package	Features	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type

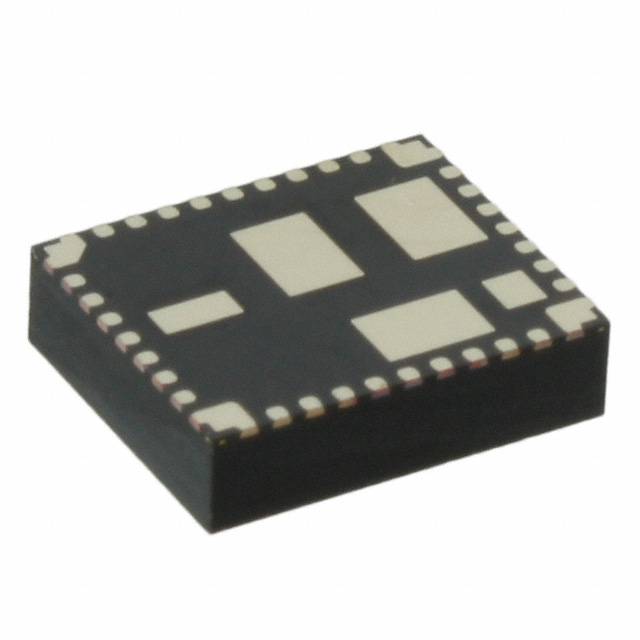

Texas Instruments TPS84259RKGT	2 A	86 %	Non-Isolated PoL Module	4.5 V	85 °C	-40 °C	41-BQFN Module	Active High Enable	ITE (Commercial)	41-B1QFN (11x9)	OCP OTP UVLO	1	9 mm	0.11 in	2.8 mm	0.43 "	0.35 "	11 mm	Surface Mount
Texas Instruments TPS84259RKGR	2 A	86 %	Non-Isolated PoL Module	4.5 V	85 °C	-40 °C	41-BQFN Module	Active High Enable	ITE (Commercial)	41-B1QFN (11x9)	OCP OTP UVLO	1	9 mm	0.11 in	2.8 mm	0.43 "	0.35 "	11 mm	Surface Mount

Catalog

4.5V to 40V, 2A up to 15W Negative-Output Integrated Power Solution

Key Features

• Complete Integrated Power Solution AllowsSmall Footprint, Low-Profile DesignWide Input-Voltage Range from 4.5 V to 40 VOutput Adjustable from –3 V to –17 VSupplies up to 2-A of Output Current45-V Surge CapabilitySynchronizes to an External ClockAdjustable Slow StartProgrammable Undervoltage Lockout (UVLO)Output Overcurrent ProtectionOvertemperature ProtectionOperating Temperature Range: –40°C to +85°CEnhanced Thermal Performance: 14°C/WMeets EN55022 Class B EmissionsFor Design Help visithttp://www.ti.com/TPS84259Complete Integrated Power Solution AllowsSmall Footprint, Low-Profile DesignWide Input-Voltage Range from 4.5 V to 40 VOutput Adjustable from –3 V to –17 VSupplies up to 2-A of Output Current45-V Surge CapabilitySynchronizes to an External ClockAdjustable Slow StartProgrammable Undervoltage Lockout (UVLO)Output Overcurrent ProtectionOvertemperature ProtectionOperating Temperature Range: –40°C to +85°CEnhanced Thermal Performance: 14°C/WMeets EN55022 Class B EmissionsFor Design Help visithttp://www.ti.com/TPS84259

Description

The TPS84259 is an easy-to-use negative output voltage power module that combines a 15-W DC/DC converter with an inductor, and passives into a low-profile QFN package. This total power solution allows as few as five external components and eliminates the loop compensation and magnetics part selection process. The 9 × 11 × 2.8 mm QFN package is easy to solder onto a printed circuit board. Its compact design also contains fewer components and possesses excellent power dissipation capability. The TPS84259 offers the flexibility and the feature-set of a discrete design and is ideal for powering a wide range of ICs and analog circuits requiring a negative output voltage. Advanced packaging technology affords a robust and reliable power solution, compatible with standard QFN mounting and testing techniques. The TPS84259 is an easy-to-use negative output voltage power module that combines a 15-W DC/DC converter with an inductor, and passives into a low-profile QFN package. This total power solution allows as few as five external components and eliminates the loop compensation and magnetics part selection process. The 9 × 11 × 2.8 mm QFN package is easy to solder onto a printed circuit board. Its compact design also contains fewer components and possesses excellent power dissipation capability. The TPS84259 offers the flexibility and the feature-set of a discrete design and is ideal for powering a wide range of ICs and analog circuits requiring a negative output voltage. Advanced packaging technology affords a robust and reliable power solution, compatible with standard QFN mounting and testing techniques.
