CWSB21DA Series
Manufacturer: NKK Switches
Beta
⌘K

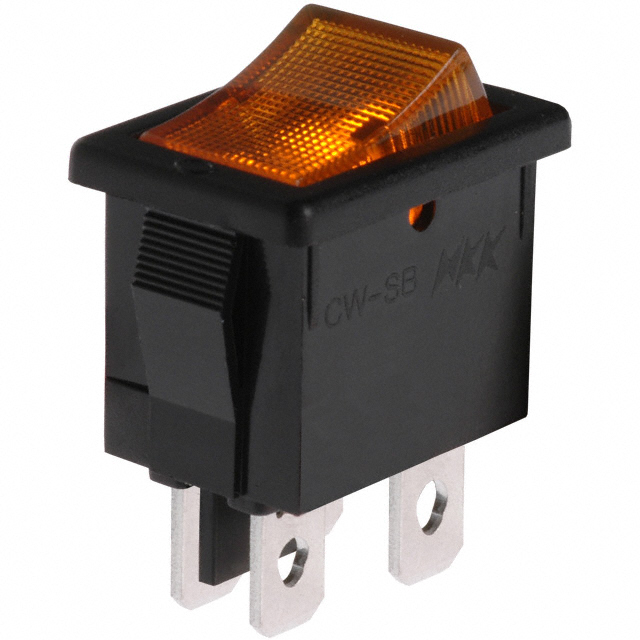

ROCKER SWITCH, ILLUMINATED, DPST, ON-NONE-OFF, AMBER, PANEL MOUNT, 9 A
| Part | Electrical Life | Mechanical Life | Circuit | Illumination Type, Color | Features | Switch Function | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Termination Style | Illumination Voltage (Nominal) | Voltage Rating - AC | Color - Actuator/Cap | Approval Agency | Mounting Type | Current Rating (Amps) | Actuator Type | Actuator Marking | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 10000 Cycles | 30000 Steps | DPST | Neon Amber | Audible Click | On-Off | 12.9 mm | 19.2 mm | Quick Connect | 125 VAC | 125 V | Amber | cULus | Panel Mount Snap-In | 9 A | Concave (Curved) - Illuminated | No Marking | 85 °C | -20 ░C |
