342102 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

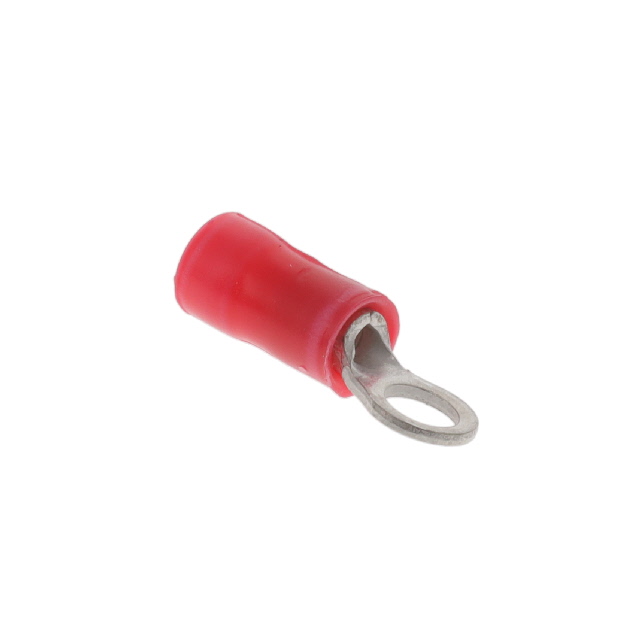

CONN RING CIRC 16-22AWG #6 CRIMP
| Part | Thickness | Thickness | Width - Outer Edges | Width - Outer Edges | Color | Length - Overall [x] | Length - Overall [x] | Stud/Tab Size | Termination | Mounting Type | Insulation | Terminal Type | Material - Insulation | Wire Gauge [Max] | Wire Gauge [Min] | Contact Finish | Contact Material | Insulation Diameter [Min] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Max] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.031 in | 0.79 mm | 5.59 mm | 0.22 in | Red | 0.689 in | 17.5 mm | 6 Stud | Crimp | Free Hanging (In-Line) | Insulated | Circular | Poly-Vinyl Chloride (PVC) | 22 AWG | 16 AWG | Tin | Copper | 0.106 " | 2.69 mm | 0.142 in | 3.61 mm | Serrated Termination |
