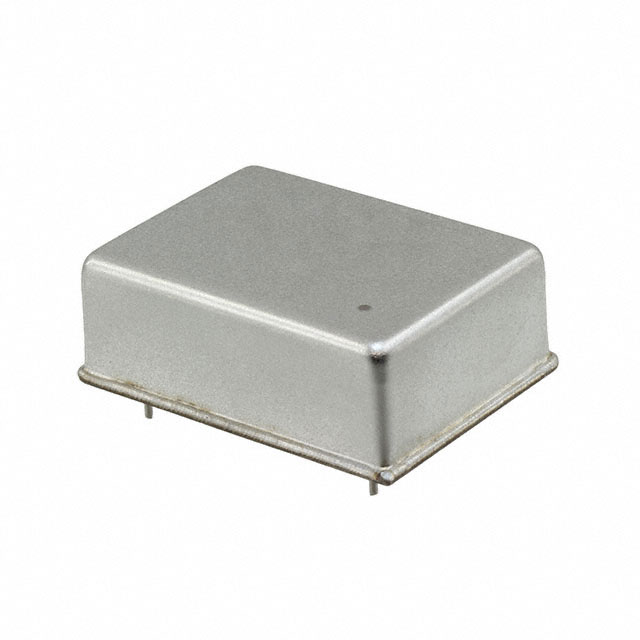

AOCTQ5 Series
Manufacturer: Abracon LLC
Beta
⌘K
OCXO OSCILLATORS OCXO 36X27 5 PIN 10MHZ +/-10PPB -40°C ~ 85°C SINE WAVE 5V -155DBC/HZ AT 10KHZ
| Part | Frequency | Package / Case | Package / Case | Package / Case | Height - Seated (Max) [Max] | Height - Seated (Max) | Output | Frequency Stability | Mounting Type | Type | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Min] | Base Resonator [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Abracon LLC | 10 MHz | 5 Leads 6-DIP | 1 in | 25.4 mm | 0.476 " | 12.1 mm | Sine Wave | 10 ppb | Through Hole | OCXO | 36 mm | 1.417 in | 1.063 in | 27 mm | 85 °C | -40 C | Crystal |
 Abracon LLC | 10 MHz | 5 Leads 6-DIP | 1 in | 25.4 mm | 0.476 " | 12.1 mm | CMOS | 5 ppb | Through Hole | OCXO | 36 mm | 1.417 in | 1.063 in | 27 mm | 85 °C | -45 °C | Crystal |
 Abracon LLC | 10 MHz | 5 Leads 6-DIP | 1 in | 25.4 mm | 0.476 " | 12.1 mm | CMOS | 3 ppb | Through Hole | OCXO | 36 mm | 1.417 in | 1.063 in | 27 mm | 85 °C | -45 °C | Crystal |
