PLN0xx-ER20 Series
Manufacturer: Bourns Inc.
Beta
⌘K

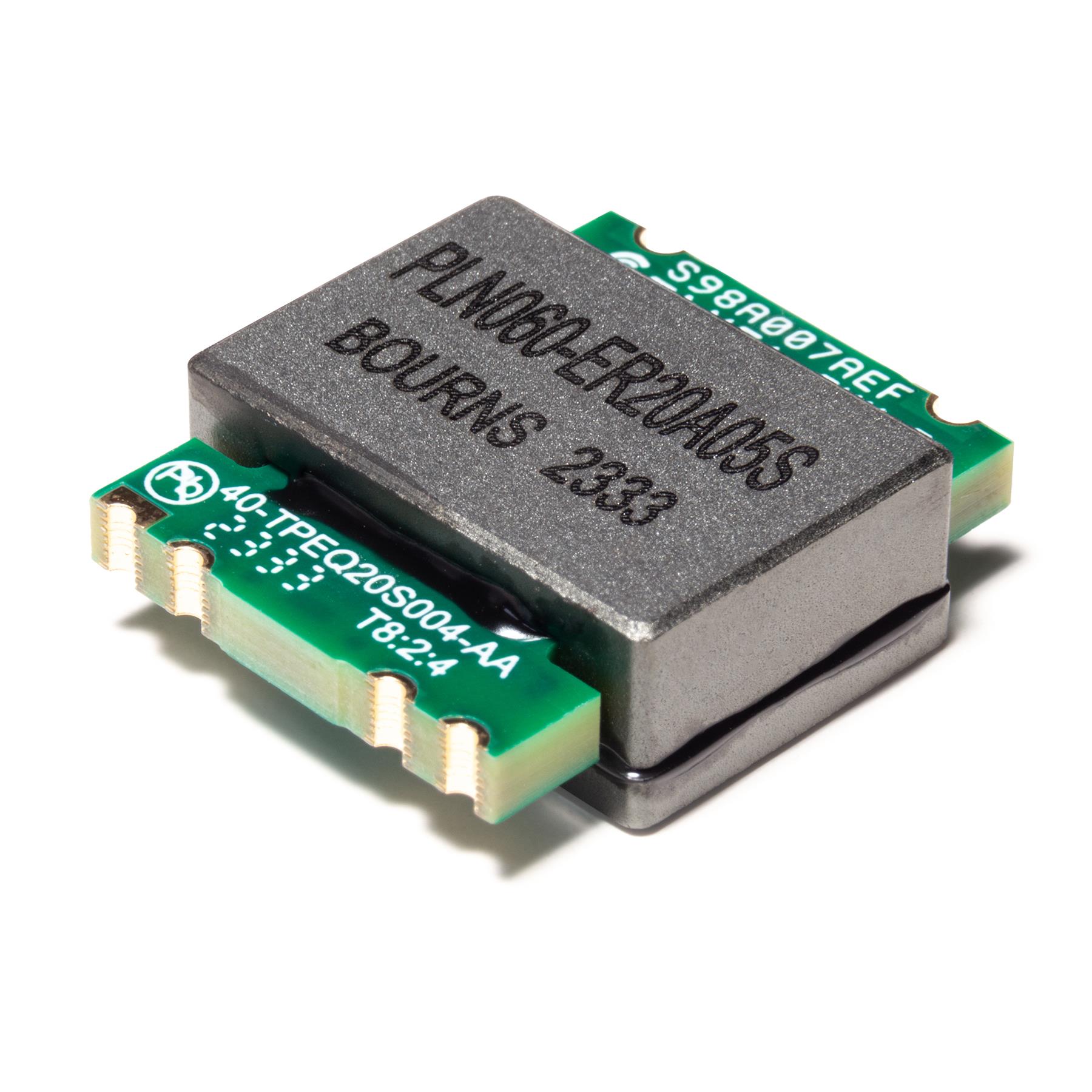

POWER TRANSFORMERS PLANAR TRANSFORMER, 60W, ER20, VOUT 24V
| Part | Type | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Applications | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Primary [Max] | Voltage - Primary [Min] | Voltage - Auxiliary | Style | Mounting Type | Voltage - Isolation | Frequency | Inductance @ Frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | For DC/DC Converters | 8 mm | 0.315 in | Power over Ethernet (PoE) | 21 mm | 0.827 in | 22.5 mm | 0.886 in | 125 °C | -40 C | 72 V | 36 V | 12 V | Planar | Surface Mount | 1500 VAC | 200 kHz | 21 µH |
