ERNI MaxiBridge Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

DRCB 2,54 10 M SMD * 137 E012 094 GURT *

Part	Contact Material	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Number of Positions Loaded	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Style	Current Rating (Amps)	Insulation Height	Insulation Height	Mounting Type	Contact Shape	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Fastening Type	Shrouding	Insulation Material	Contact Finish - Mating	Number of Positions	Features	Color	Contact Termination	Pitch	Pitch	Number of Rows	Voltage Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 474016-E	Copper Alloy	4.09 mm	0.161 in	Tin	All	UL94 V-0	-55 C	150 °C	Solder	Board to Cable/Wire	12 A	5.05 mm	0.199 in	Surface Mount	Square	2	0.1 "	2.54 mm	Black	Male Pin	0.1 in	2.54 mm	Header	Latch Holder	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Gold	10	Board Guide Solder Retention
TE Connectivity AMP Connectors 474265-E							-55 C	150 °C						Free Hanging (In-Line)						Female Socket			Receptacle	Latch Lock		Nylon Polyamide (PA)		6	Sealed	Black	Crimp	0.1 "	2.54 mm	1
TE Connectivity AMP Connectors 464688-E	Copper Alloy	4.09 mm	0.161 in	Tin	All	UL94 V-0	-40 C	105 ░C	Solder		11.1 A	9.4 mm	0.37 in	Surface Mount	Square	2	0.1 "	2.54 mm	Green	Male Pin	0.1 in	2.54 mm	Header	Push-Pull	Shrouded - 4 Wall		Gold	20	Board Guide Solder Retention						500 VAC
TE Connectivity AMP Connectors 384473-E	Copper Alloy	4.09 mm	0.161 in	Tin	All	UL94 V-0	-55 C	150 °C	Solder	Board to Cable/Wire	15 A	5.05 mm	0.199 in	Right Angle Surface Mount	Square		0.1 "	2.54 mm	Green	Male Pin			Header	Push-Pull	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Gold	4	Board Guide Solder Retention					1

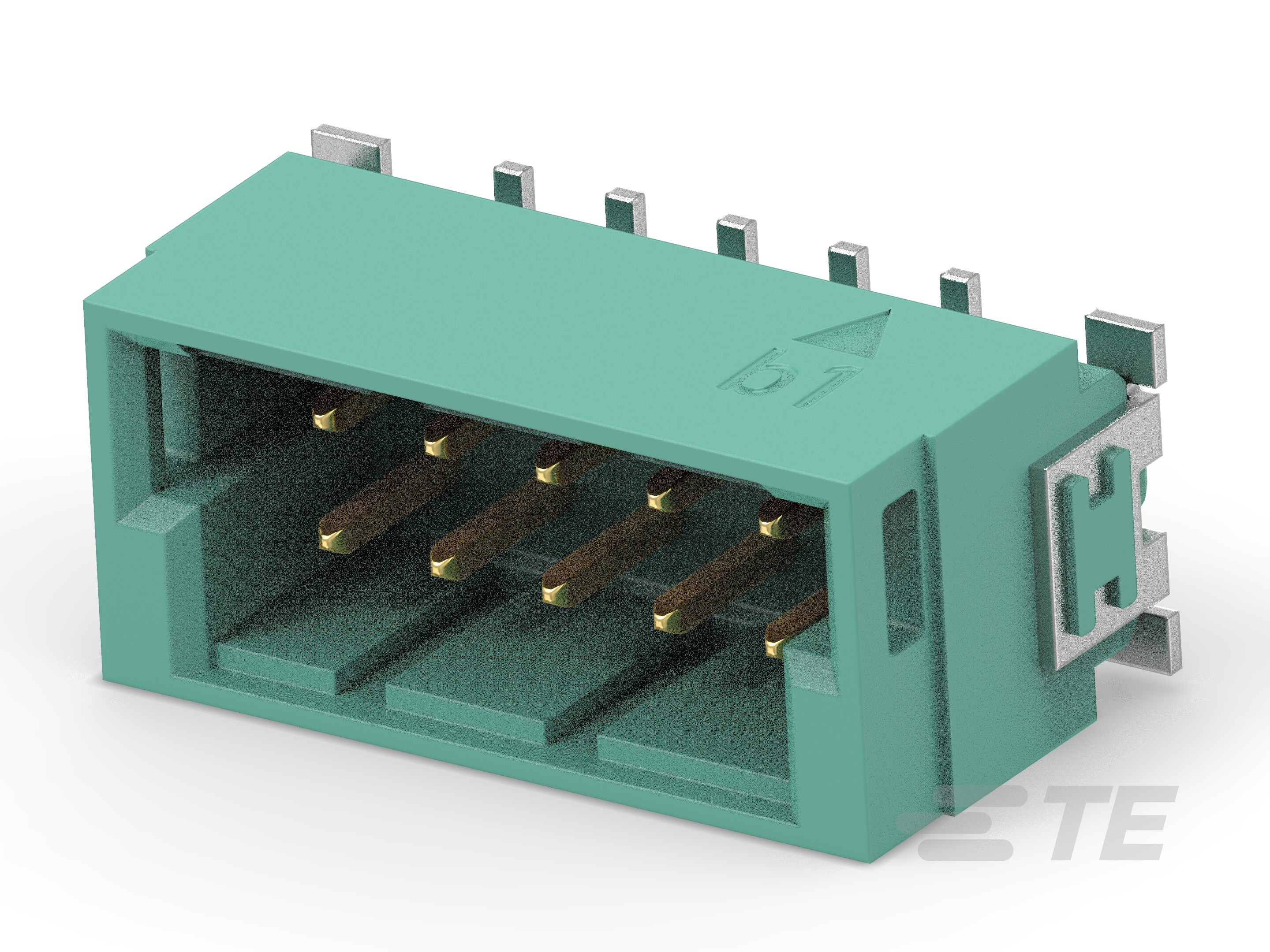

TE Connectivity AMP Connectors 474008-E	Copper Alloy	4.09 mm	0.161 in	Tin	All	UL94 V-0	-40 C	105 ░C	Solder		12.7 A	9.4 mm	0.37 in	Surface Mount	Square	2	0.1 "	2.54 mm	Green	Male Pin	0.1 in	2.54 mm	Header	Push-Pull	Shrouded - 4 Wall		Gold	10	Board Guide Pick and Place Solder Retention						500 VAC
TE Connectivity AMP Connectors 234832-E	Copper Alloy	4.09 mm	0.161 in	Tin	All	UL94 V-0	-55 C	150 °C	Solder	Board to Cable/Wire	12 A	5.05 mm	0.199 in	Right Angle Surface Mount	Square		0.1 "	2.54 mm	Black	Male Pin			Header	Latch Holder	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Gold	2	Board Guide Solder Retention					1

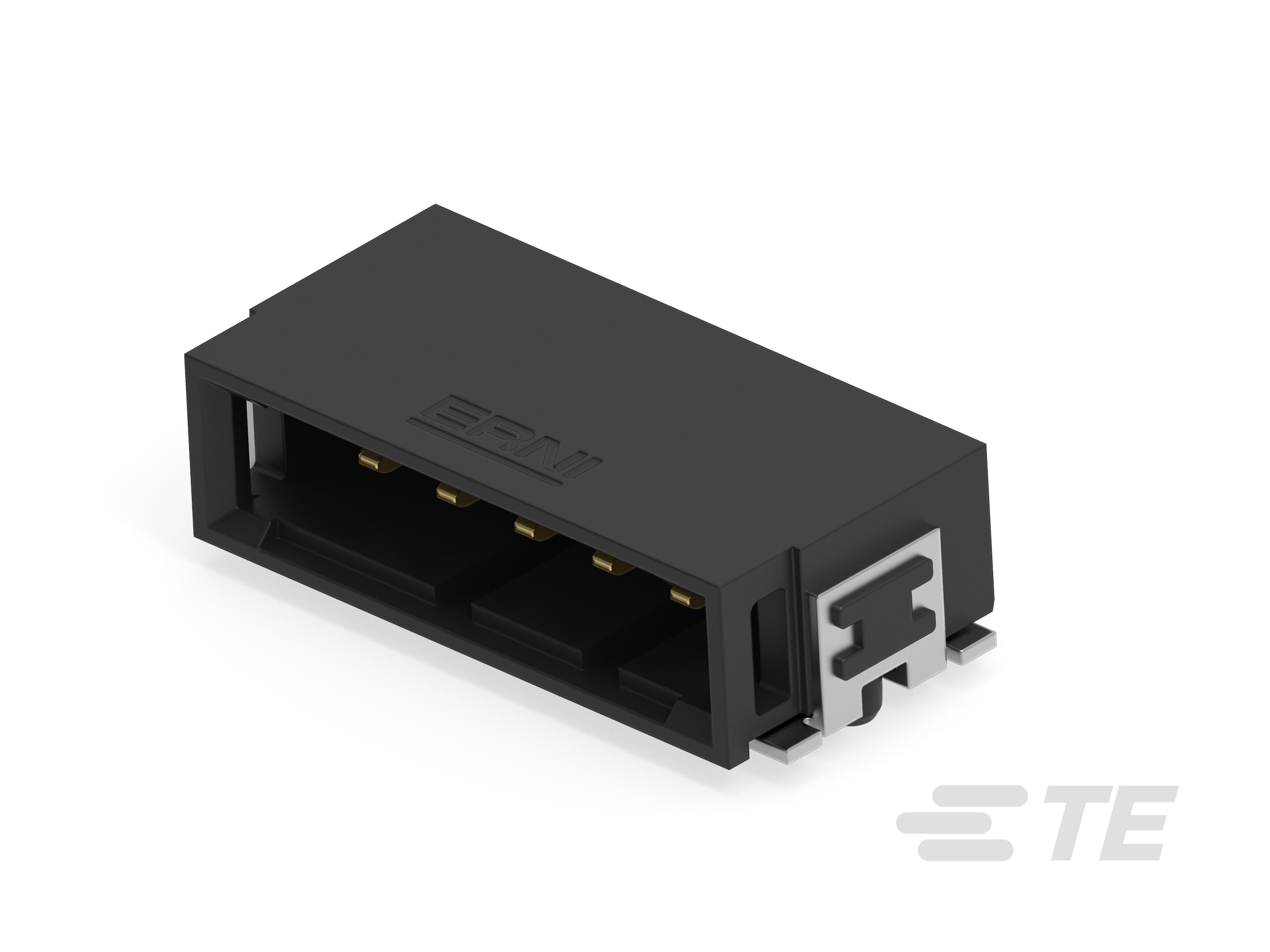

TE Connectivity AMP Connectors 254823-E	Phosphor Bronze			Gold	All	UL94 V-0	-55 C	125 °C	Solder	Board to Cable/Wire	12 A			Through Hole	Square		0.1 "	2.54 mm	Black	Male Pin			Header		Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Gold	5						1
TE Connectivity AMP Connectors 484198-E							-55 C	150 °C						Free Hanging (In-Line)						Female Socket			Receptacle	Latch Lock		Nylon Polyamide (PA)			Sealed	Black	Crimp	0.1 "	2.54 mm	1

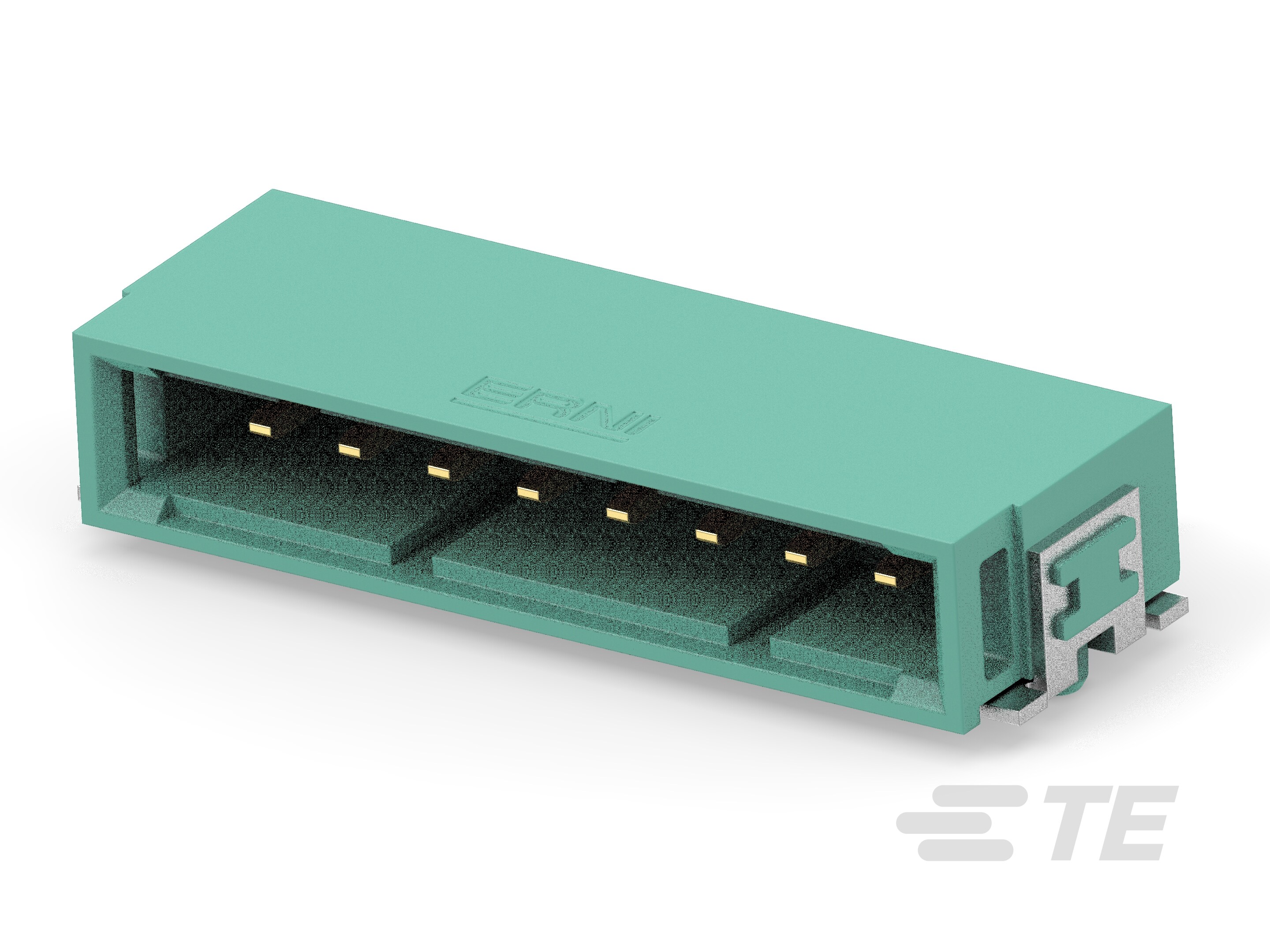

TE Connectivity AMP Connectors 284123-E	Copper Alloy	4.09 mm	0.161 in	Tin	All	UL94 V-0	-55 C	150 °C	Solder	Board to Cable/Wire	13 A	5.05 mm	0.199 in	Right Angle Surface Mount	Square		0.1 "	2.54 mm	Green	Male Pin			Header	Push-Pull	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Gold	8	Board Guide Solder Retention					1
TE Connectivity AMP Connectors 515253-E	Copper Alloy			Tin	All	UL94 V-0	-55 C	150 °C	Solder	Board to Cable/Wire	12 Amps			Right Angle Surface Mount	Square		0.1 "	2.54 mm	Black	Male Pin			Header	Push-Pull	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Gold	10	Solder Retention					1		157.5 Áin	4 Ám
