5744 Series

Manufacturer: BRADY

Catalog

B689 5744-I WHT/GRN STYLE I

Part	Features	Location	Applications	Width	Width	Shape	Color - Legend	Language	Length	Length	Print Type	Mounting Type	Application Specifics	Arrangement	Legend (Text)	Color - Background	Outside Pipe Diameter (Max) [diameter]	Outside Pipe Diameter (Max) [diameter]	Legend (Symbol Only)	Outside Pipe Diameter (Min)	Outside Pipe Diameter (Min) [Min]	Material - Body	Outside Pipe Diameter (Max) [Max] [diameter]	Outside Pipe Diameter (Max) [Max] [diameter]	Width [x]	Width [x]	Length [x]	Length [x]	Outside Pipe Diameter (Max) [Max]	Outside Pipe Diameter (Max) [Max]	Outside Pipe Diameter (Min) [Min]
BRADY 5744-I	Chemical Resistant	Outdoor	General	8 in	203.2 mm	Rectangle	White	63000 A 69000 A	9 in	228.6 mm	Pre-Printed	Snap On	Water Fluids	Text Only	Potable Water	Green	1.5 in	38.1 mm	Directional Arrow	60.33 mm	2.375 in	Plastic
BRADY 5744-O	Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	Outdoor	Pipe			Rectangle	White	63000 A 69000 A	8 in	203.2 mm	Pre-Printed	Snap On	Directionality	Symbol and Text	Potable Water	Green			Directional Arrow	34.93 mm	1.375 in	Plastic	0.5 in	12.7 mm	127 mm	127 mm

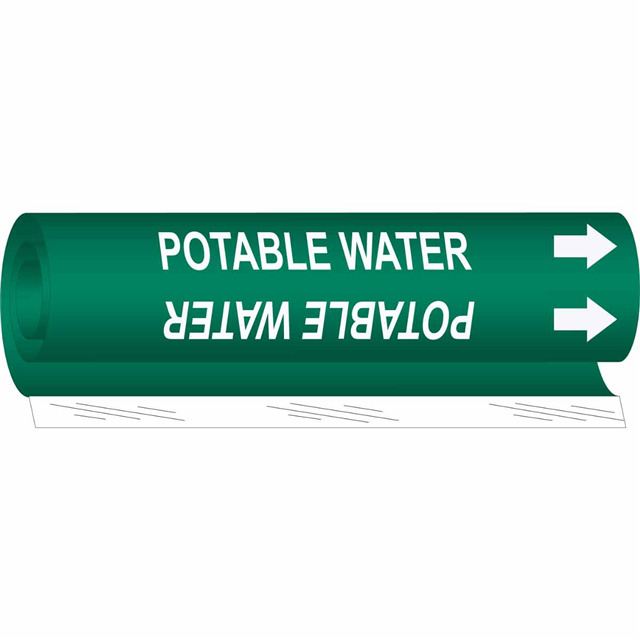

BRADY 5744-II	Chemical Resistant	Outdoor	Pipe	12 in	304.8 mm	Rectangle	White	63000 A 69000 A			Pre-Printed	Snap On	Water Fluids	Symbol and Text	Potable Water	Green			Directional Arrow		7.875 in	Plastic					660.4 mm	26 in	63.5 mm	2.5 in	200.03 mm
