1462047 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

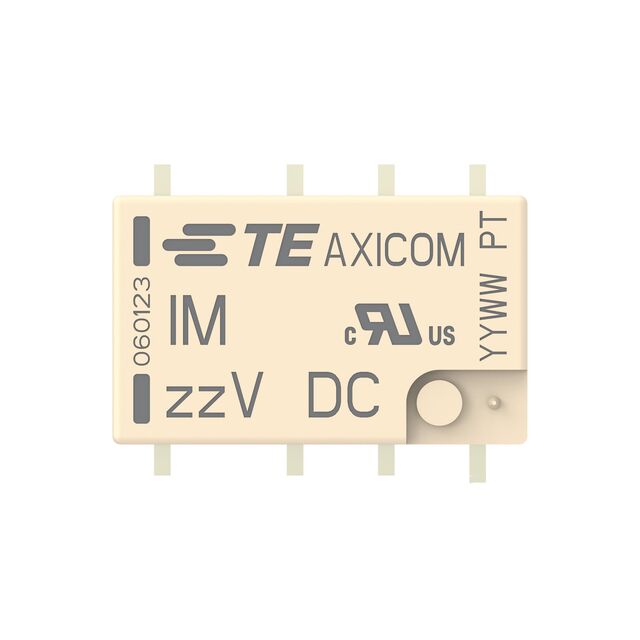

RELAY TELECOM DPDT 5A 2.4V
| Part | Coil Resistance | Operate Time | Release Time | Mounting Type | Coil Voltage | Coil Type | Seal Rating | Coil Current | Switching Voltage [Max] | Approval Agency | Contact Material | Contact Form | Relay Type | Termination Style | Contact Rating (Current) | Operating Temperature [Max] | Operating Temperature [Min] | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 58 Ohms | 3 ms | 3 ms | Surface Mount | 2.4 VDC | Latching Single Coil | Sealed - Hermetically | 41.7 mA | 220 VDC 250 VAC | UR VDE | Gold (Au) Silver Nickel (AgNi) | DPDT (2 Form C) | Telecom | Gull Wing | 5 A | 85 °C | -40 C | 60 W 62.5 VA |
