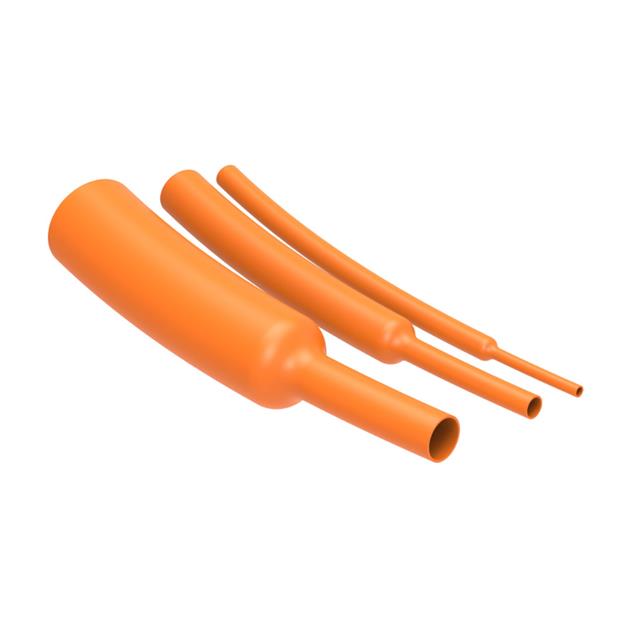

RAYCHEM VOLINSU EVSW Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

ORANGE SHRINK 2:1 RATIO METER

Part	Spool Size	Spool Size	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shrink Temperature	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Length	Type	Features	Material	Recovered Wall Thickness	Recovered Wall Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied	Spool Size [x]	Spool Size [x]
TE Connectivity AMP Connectors EVSW-26/12.7-3-SP	4921.3 ft	1500 m	26.01 mm	1.024 in	70 °C	12.7 mm	0.5 "	1	2	Enter Number of Meters in Order Quantity	Tubing Flexible	Flame Retardant	Polyolefin (PO) Irradiated	0.035 in	0.89 mm	-55 C	135 °C
TE Connectivity AMP Connectors EVSW-50/25-3-SP	2624.7 ft	800 m	1.969 in		70 °C	24.99 mm	0.984 in	1	2	Enter Number of Meters in Order Quantity	Tubing Flexible	Flame Retardant	Polyolefin (PO) Irradiated	0.045 in	1.14 mm	-55 C	135 °C	50 mm
TE Connectivity AMP Connectors EVSW-40/19-3-SP	2624.7 ft	800 m		1.575 "	70 °C	19 mm	0.748 "	1	2	Enter Number of Meters in Order Quantity	Tubing Flexible	Flame Retardant	Polyolefin (PO) Irradiated	0.04 in	1.02 mm	-55 C	135 °C		40.01 mm
TE Connectivity AMP Connectors EVSW-10/5-3-SP			10.01 mm	0.394 in	70 °C	4.5 mm	0.177 "	1	2	Enter Number of Meters in Order Quantity	Tubing Flexible	Flame Retardant	Polyolefin (PO) Irradiated	0.025 in	0.64 mm	-55 C	135 °C			3937 ft	1200 m
TE Connectivity AMP Connectors EVSW-12.7/6.4-3-SP	2952.8 ft	900 m	12.7 mm	0.5 "	70 °C	6.4 mm	0.252 in	1	2	Enter Number of Meters in Order Quantity	Tubing Flexible	Flame Retardant	Polyolefin (PO) Irradiated	0.025 in	0.64 mm	-55 C	135 °C
