HEV2AN Series

Catalog

POWER RELAY, DPST-NO, 6 VDC, 20 A, HE-V SERIES, THROUGH HOLE, NON LATCHING

Part	Coil Resistance	Contact Form	Approval Agency	Coil Current	Must Release Voltage	Load - Max Switching	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Coil Insulation	Contact Rating (Current)	Seal Rating	Operate Time	Must Operate Voltage	Contact Material	Release Time	Relay Type	Switching Voltage [Max]	Coil Type	Termination Style	Coil Voltage
Panasonic Electronic Components HEV2AN-P-DC6V	18.8 Ohms	DPST-NO (2 Form A)	cURus VDE	320 mA	0.3 VDC	20000 W	55 °C	-40 C	Through Hole	Class F	20 A	Sealed - Flux Protection	30 ms	4.2 VDC	Silver Nickel (AgNi)	10 ms	General Purpose	1000 VDC	Non Latching	PC Pin

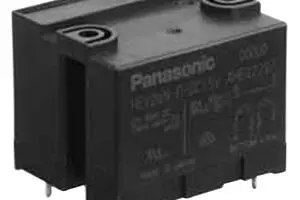

Panasonic Electronic Components HEV2AN-P-DC12V	75 Ohms	DPST-NO (2 Form A)	cURus VDE	160 mA	0.6 VDC	20000 W	55 °C	-40 C	Through Hole	Class F	20 A	Sealed - Flux Protection	30 ms	8.4 VDC	Silver Nickel (AgNi)	10 ms	General Purpose	1000 VDC	Non Latching	PC Pin	12 VDC
Panasonic Electronic Components HEV2AN-P-DC9V	42 Ohms	DPST-NO (2 Form A)	cURus VDE	213 mA	0.45 VDC	20000 W	55 °C	-40 C	Through Hole	Class F	20 A	Sealed - Flux Protection	30 ms	6.3 VDC	Silver Nickel (AgNi)	10 ms	General Purpose	1000 VDC	Non Latching	PC Pin	9 VDC
Panasonic Electronic Components HEV2AN-P-DC24V	300 Ohms	DPST-NO (2 Form A)	cURus VDE	80 mA	1.2 VDC	20000 W	55 °C	-40 C	Through Hole	Class F	20 A	Sealed - Flux Protection	30 ms	16.8 VDC	Silver Nickel (AgNi)	10 ms	General Purpose	1000 VDC	Non Latching	PC Pin	24 VDC
