C0G (NP0) Series

Catalog

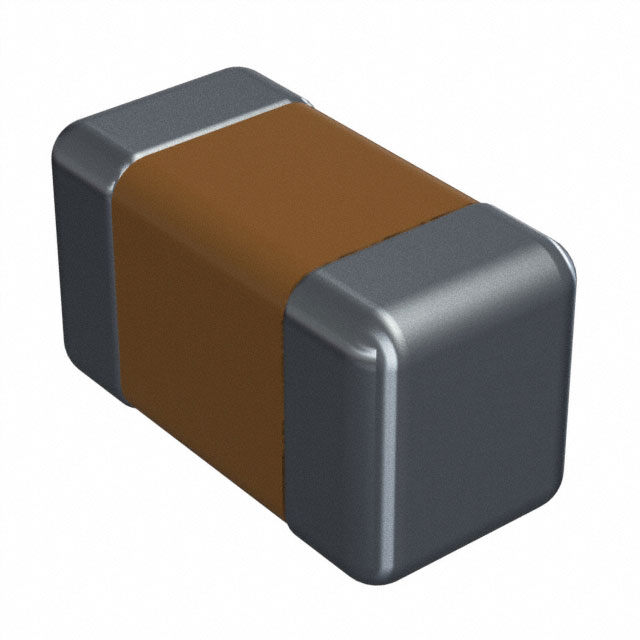

MULTILAYER CERAMIC CAPACITORS MLCC - SMD/SMT 50V 7PF C0G 0402 .5P F TOL

...

Part	Package / Case	Tolerance	Applications	Voltage - Rated	Temperature Coefficient	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Capacitance	Mounting Type	Thickness (Max) [Max]	Thickness (Max) [Max]	Thickness (Max)	Package / Case	Thickness (Max) [Max] [z]
KYOCERA AVX 04025A7R0DAT2A	0402 (1005 Metric)	0.5 pF	General Purpose	50 VDC	C0G NP0	-55 C	125 °C	0.02 in	0.5 mm	0.039 "	1 mm	7 pF	MLCC Surface Mount	0.022 in	0.56 mm
KYOCERA AVX 08055A5R0CAT2A	0805	0.25 pF	General Purpose	50 VDC	C0G NP0	-55 C	125 °C		0.049 " 1.25 mm		0.079 in 2.01 mm	5 pF	MLCC Surface Mount	0.037 in	0.94 mm
KYOCERA AVX 04025A111KAT4A	0402 (1005 Metric)	10 %	General Purpose	50 VDC	C0G NP0	-55 C	125 °C	0.02 in	0.5 mm	0.039 "	1 mm	110 pF	MLCC Surface Mount	0.022 in		0.55 mm
KYOCERA AVX 04023A6R2DAT2A	0402 (1005 Metric)	0.5 pF	General Purpose	25 VDC	C0G NP0	-55 C	125 °C	0.02 in	0.5 mm	0.039 "	1 mm	6.2 pF	MLCC Surface Mount	0.022 in	0.56 mm
KYOCERA AVX 08055A620GAT2A	0805	2 %	General Purpose	50 VDC	C0G NP0	-55 C	125 °C		0.049 " 1.25 mm		0.079 in 2.01 mm	62 pF	MLCC Surface Mount	0.037 in	0.94 mm
KYOCERA AVX 18122A182JAT2A	1812 (4532 Metric)	5 %	General Purpose	200 VDC	C0G NP0	-55 C	125 °C	0.126 in	3.2 mm	0.177 in	4.5 mm	1800 pF	MLCC Surface Mount	0.057 "	1.45 mm
KYOCERA AVX 04025A200FAT2A	0402 (1005 Metric)	1 %	General Purpose	50 VDC	C0G NP0	-55 C	125 °C	0.02 in	0.5 mm	0.039 "	1 mm	20 pF	MLCC Surface Mount	0.022 in	0.56 mm
KYOCERA AVX 06035A2R2KAT2A	0603	10 %	General Purpose	50 VDC	C0G NP0	-55 C	125 °C	0.032 in	0.81 mm	0.063 "	1.6 mm	2.2 pF	MLCC Surface Mount			0.9 mm	1608 Metric	0.035 in
KYOCERA AVX 08051A240JAT2A	0805	5 %	General Purpose	100 V	C0G NP0	-55 C	125 °C		0.049 " 1.25 mm		0.079 in 2.01 mm	24 pF	MLCC Surface Mount	0.037 in	0.94 mm
KYOCERA AVX 04025A5R4BAT2A	0402 (1005 Metric)	0.1 pF	General Purpose	50 VDC	C0G NP0	-55 C	125 °C	0.02 in	0.5 mm	0.039 "	1 mm	5.4 pF	MLCC Surface Mount	0.022 in		0.55 mm
