857-086 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 86POS 0.156

...

Part	Material - Insulation	Termination Rows [custom]	Flange Feature	Read Out	Contact Material	Number of Positions	Number of Rows [custom]	Contact Type	Color	Termination	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Number of Positions/Bay/Row	Contact Finish Thickness	Contact Finish Thickness	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Pitch	Pitch	Mounting Type	Card Type	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 857-086-540-207	Polyphenylene Sulfide (PPS)	2	Flush Mount M3 Threaded Insert Top Opening	Dual	Copper Alloy	86	2	Semi Bellows	Black	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	43	0.25 Ám	10 Áin	Female	125 °C	-40 C	3.96 mm	0.156 in	Through Hole	Non Specified - Dual Edge

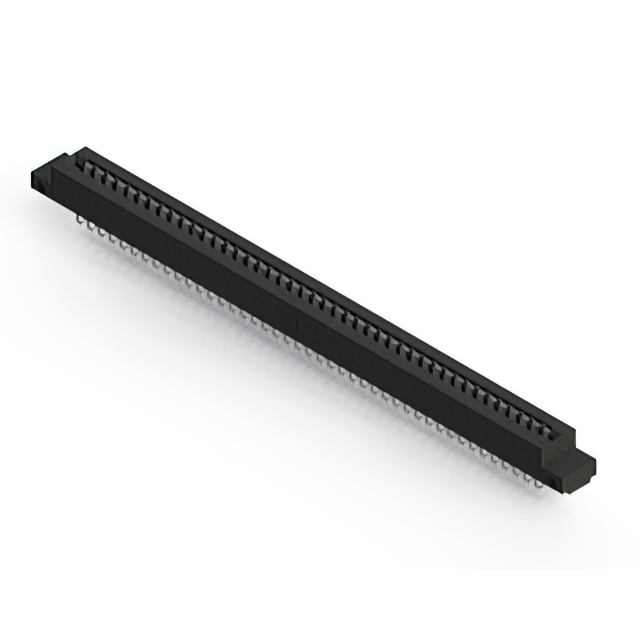

EDAC Inc. 857-086-459-212	Polyphenylene Sulfide (PPS)	2	Side Mount Opening Unthreaded	Single	Copper Alloy	86	2	Semi Bellows	Black	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Tin	43			Female	125 °C	-40 C	3.96 mm	0.156 in	Right Angle Through Hole	Non Specified - Dual Edge	0.128 "	3.25 mm
EDAC Inc. 857-086-460-208	Polyphenylene Sulfide (PPS)	2	4-40 Flush Mount Threaded Insert Top Opening	Dual	Copper Alloy	86	2	Semi Bellows	Black	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Tin	43			Female	125 °C	-40 C	3.96 mm	0.156 in	Board Edge Straddle Mount	Non Specified - Dual Edge			Card Extender

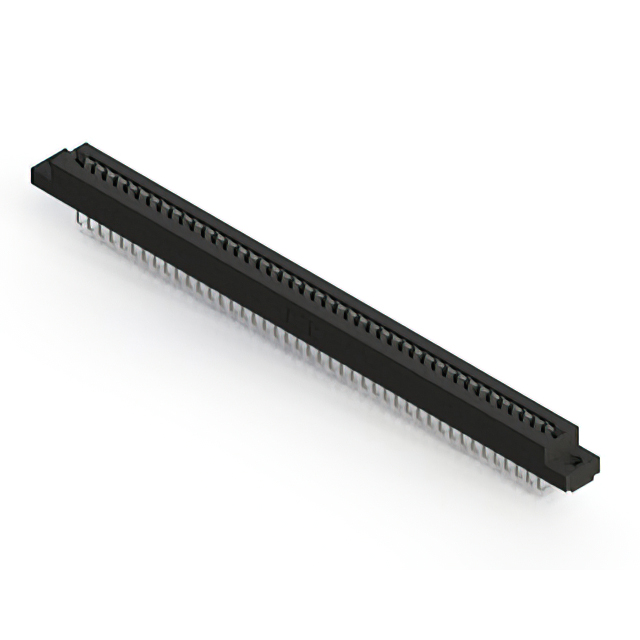

EDAC Inc. 857-086-458-204	Polyphenylene Sulfide (PPS)	2	Flush Mount Top Opening Unthreaded	Single	Copper Alloy	86	2	Semi Bellows	Black	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Tin	43			Female	125 °C	-40 C	3.96 mm	0.156 in	Right Angle Through Hole	Non Specified - Dual Edge	0.156 "	3.96 mm
EDAC Inc. 857-086-455-208	Polyphenylene Sulfide (PPS)	2	4-40 Flush Mount Threaded Insert Top Opening	Dual	Copper Alloy	86	2	Semi Bellows	Black	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Tin	43			Female	125 °C	-40 C	3.96 mm	0.156 in	Board Edge Straddle Mount	Non Specified - Dual Edge			Card Extender

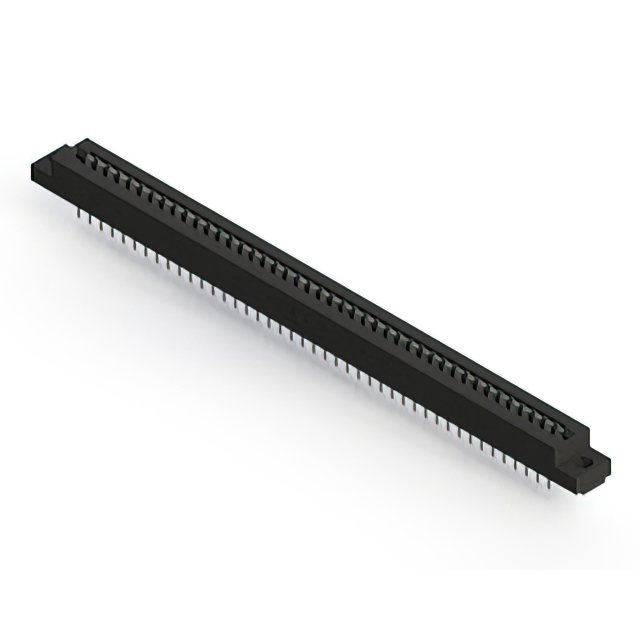

EDAC Inc. 857-086-420-204	Polyphenylene Sulfide (PPS)	2	Flush Mount Top Opening Unthreaded	Dual	Copper Alloy	86	2	Semi Bellows	Black	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Tin	43			Female	125 °C	-40 C	3.96 mm	0.156 in	Through Hole	Non Specified - Dual Edge	0.156 "	3.96 mm
EDAC Inc. 857-086-400-204	Polyphenylene Sulfide (PPS)	2	Flush Mount Top Opening Unthreaded	Dual	Copper Alloy	86	2	Semi Bellows	Black	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	Tin	43			Female	125 °C	-40 C	3.96 mm	0.156 in	Through Hole	Non Specified - Dual Edge	0.156 "	3.96 mm

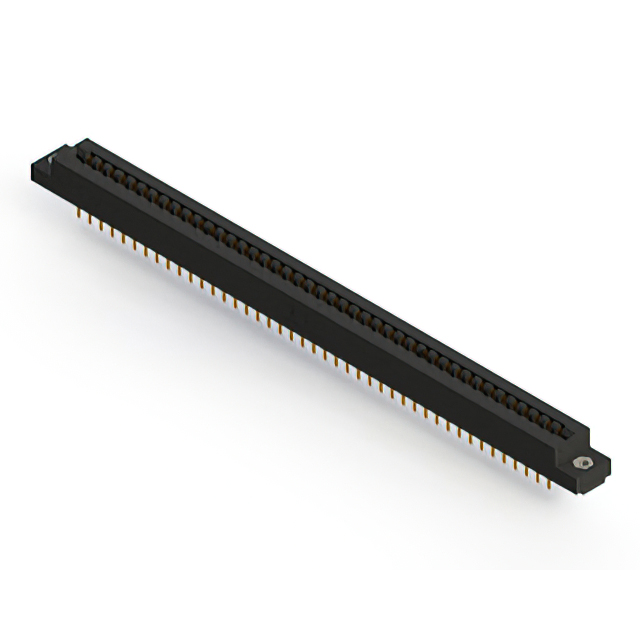

EDAC Inc. 857-086-520-207	Polyphenylene Sulfide (PPS)	2	Flush Mount M3 Threaded Insert Top Opening	Dual	Copper Alloy	86	2	Semi Bellows	Black	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	43	0.25 Ám	10 Áin	Female	125 °C	-40 C	3.96 mm	0.156 in	Through Hole	Non Specified - Dual Edge
EDAC Inc. 857-086-442-204	Polyphenylene Sulfide (PPS)	2	Flush Mount Top Opening Unthreaded	Dual	Copper Alloy	86	2	Semi Bellows	Black	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Tin	43			Female	125 °C	-40 C	3.96 mm	0.156 in	Through Hole	Non Specified - Dual Edge	0.156 "	3.96 mm
EDAC Inc. 857-086-442-203	Polyphenylene Sulfide (PPS)	2	Floating Bobbin Flush Mount	Dual	Copper Alloy	86	2	Semi Bellows	Black	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Tin	43			Female	125 °C	-40 C	3.96 mm	0.156 in	Through Hole	Non Specified - Dual Edge	0.116 "	2.95 mm
