FW Series
Manufacturer: Chemi-Con
Beta
⌘K

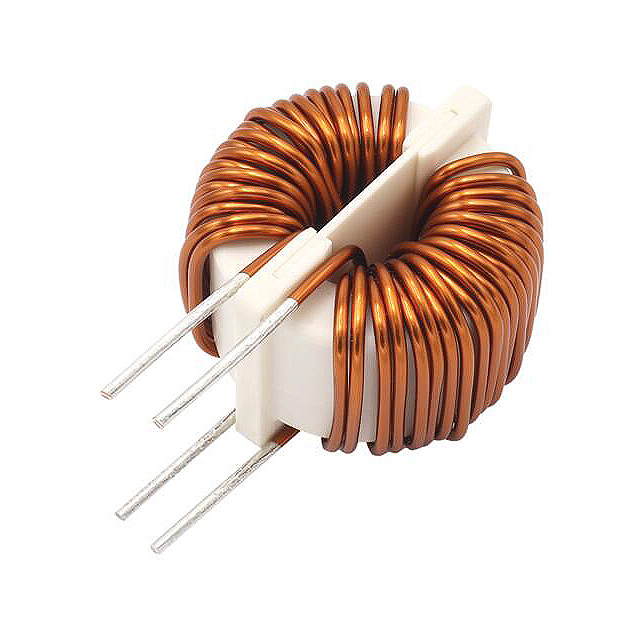

COMMON MODE CHOKES / FILTERS 700VDC 3.7MH 15A 36X39.5X29.5MM AEC-Q200
| Part | Inductance @ Frequency | Ratings | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Max) [Max] | Size / Dimension [diameter] | Size / Dimension [diameter] | Height (Max) [Max] [z] | Height (Max) [Max] [z] | Package / Case | Voltage Rating - DC | Filter Type | Mounting Type | Number of Lines | Diameter [diameter] | Diameter [diameter] | Core Type | Effective Length (le) mm [x] | Effective Area (Ae) mm² | Height [z] | Height [z] | Gap | Finish | Inductance Factor (Al) | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Chemi-Con | 3.7 mH | AEC-Q200 | 130 °C | -40 C | 15 A | 1.555 " | 39.5 mm | 36 mm | 1.417 in | Vertical No Base 4 PC Pin | 700 VDC | Power Line | Through Hole | 2 | |||||||||||

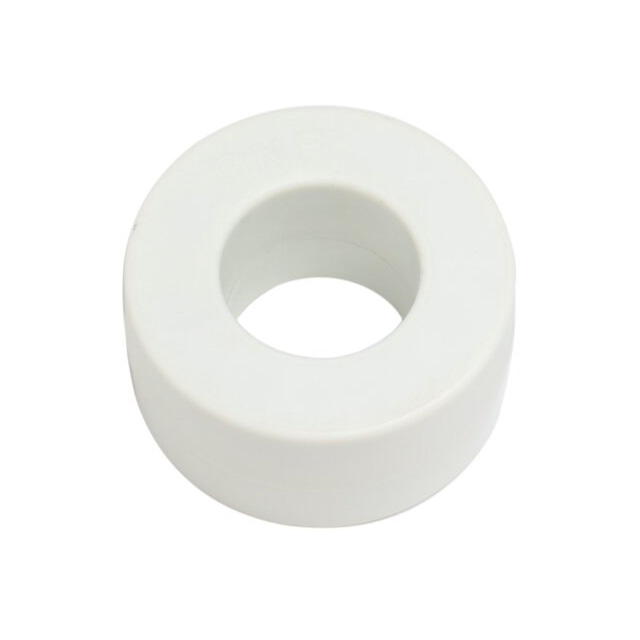

 Chemi-Con | 1.594 in | 40.5 mm | Toroid | 93.3 mm | 83 mm² | 18 mm | 0.709 in | Ungapped | Uncoated | 35.6 µH | Nanocrystalline |
