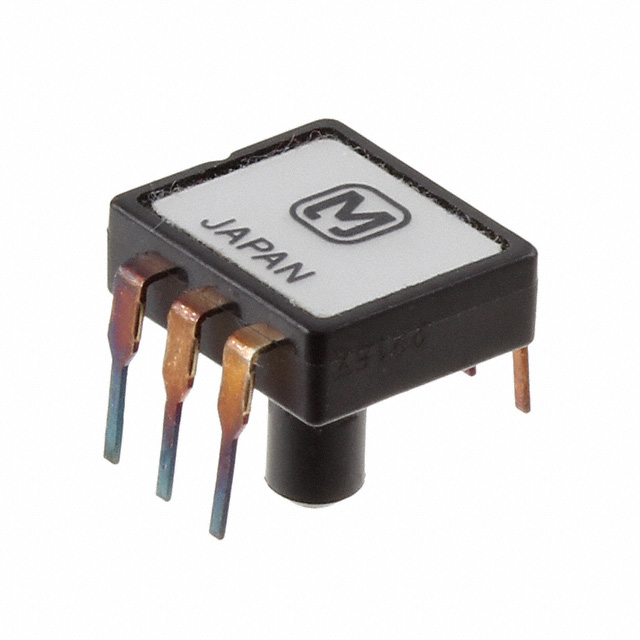

ADP123 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
SENSOR 7.11PSIG 0.12" 0.1V
| Part | Pressure Type | Operating Pressure | Operating Pressure | Port Size | Port Size | Port Size | Accuracy | Mounting Type | Output [Min] | Output [Max] | Port Style | Maximum Pressure [Max] | Maximum Pressure [Max] | Output Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Features | Package / Case | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | Vented Gauge | 7.11 PSI | 49 kPa | 3 mm | 0.12 in | Male Tube | 0.3 % | Through Hole | 0 mV | 100 mV | Barbless | 14.21 PSI | 98 kPa | Wheatstone Bridge | -20 ░C | 100 °C | PC Pin | Temperature Compensated | 6-DIP Module | Board Mount |
