3421 Series

Catalog

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 20 CONTACTS, CABLE MOUNT

Part	Cable Termination	Wire Type	Connector Type	Color	Contact Type	Mounting Type	Contact Finish	Row Spacing	Row Spacing	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Number of Positions	Pitch	Pitch	Features	Wire Gauge [Max]	Wire Gauge	Wire Gauge [Min]
3M Electronic Specialty 3421-7620	IDC	Ribbon Cable	Receptacle	Gray	Female Socket	Free Hanging (In-Line)	Gold	2.54 mm	0.1 "	30 Áin	0.76 Ám	2	20	0.1 "	2.54 mm	Closed End Polarizing Key Strain Relief
3M Electronic Specialty 3421-6600	IDC	Ribbon Cable	Receptacle	Gray	Female Socket	Free Hanging (In-Line)	Gold	2.54 mm	0.1 "	30 Áin	0.76 Ám	2	20	0.1 "	2.54 mm	Feed Through Polarizing Key	28 AWG	Stranded or Solid	26 AWG
3M Electronic Specialty 3421-6620	IDC	Ribbon Cable	Receptacle	Gray	Female Socket	Free Hanging (In-Line)	Gold	2.54 mm	0.1 "	30 Áin	0.76 Ám	2	20	0.1 "	2.54 mm	Feed Through Polarizing Key Strain Relief
3M Electronic Specialty 3421-H600	IDC	Ribbon Cable	Receptacle	Gray	Female Socket	Free Hanging (In-Line)	Gold	2.54 mm	0.1 "	30 Áin	0.76 Ám	2	20	0.1 "	2.54 mm	Feed Through Polarizing Key	28 AWG	Stranded or Solid	26 AWG

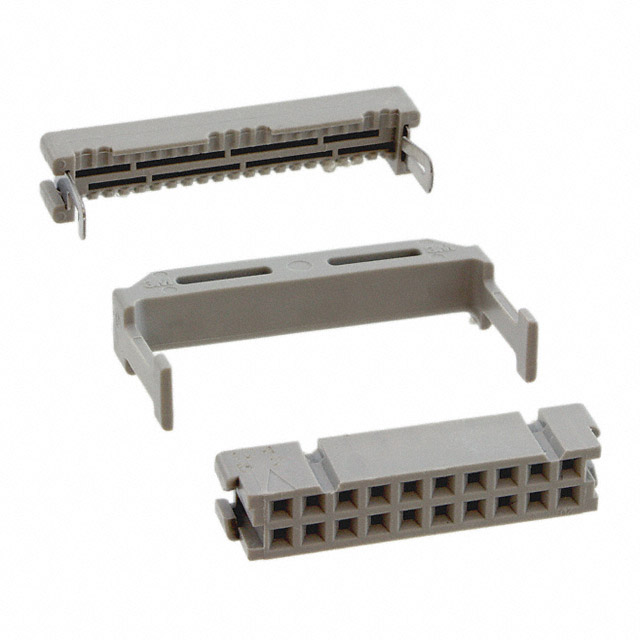

3M Electronic Specialty 3421-7020	IDC	Ribbon Cable	Receptacle	Gray	Female Socket	Free Hanging (In-Line)	Gold	2.54 mm	0.1 "	30 Áin	0.76 Ám	2	20	0.1 "	2.54 mm	Closed End Strain Relief
3M Electronic Specialty 3421-G600	IDC	Ribbon Cable	Receptacle	Gray	Female Socket	Free Hanging (In-Line)	Gold	2.54 mm	0.1 "	30 Áin	0.76 Ám	2	20	0.1 "	2.54 mm	Feed Through Polarizing Key	28 AWG	Stranded or Solid	26 AWG
3M Electronic Specialty 3421-7000	IDC	Ribbon Cable	Receptacle	Gray	Female Socket	Free Hanging (In-Line)	Gold	2.54 mm	0.1 "	30 Áin	0.76 Ám	2	20	0.1 "	2.54 mm	Closed End

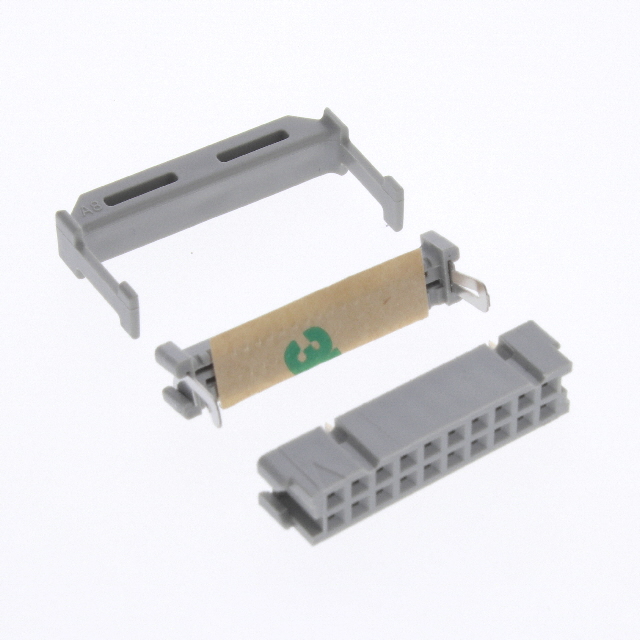

3M Electronic Specialty 3421-6020	IDC	Ribbon Cable	Receptacle	Gray	Female Socket	Free Hanging (In-Line)	Gold	2.54 mm	0.1 "	30 Áin	0.76 Ám	2	20	0.1 "	2.54 mm	Feed Through Strain Relief

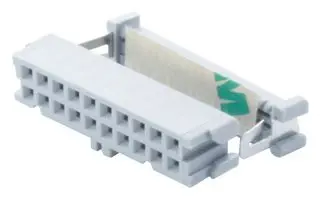

3M Electronic Specialty 3421-7600	IDC	Ribbon Cable	Receptacle	Gray	Female Socket	Free Hanging (In-Line)	Gold	2.54 mm	0.1 "	30 Áin	0.76 Ám	2	20	0.1 "	2.54 mm
