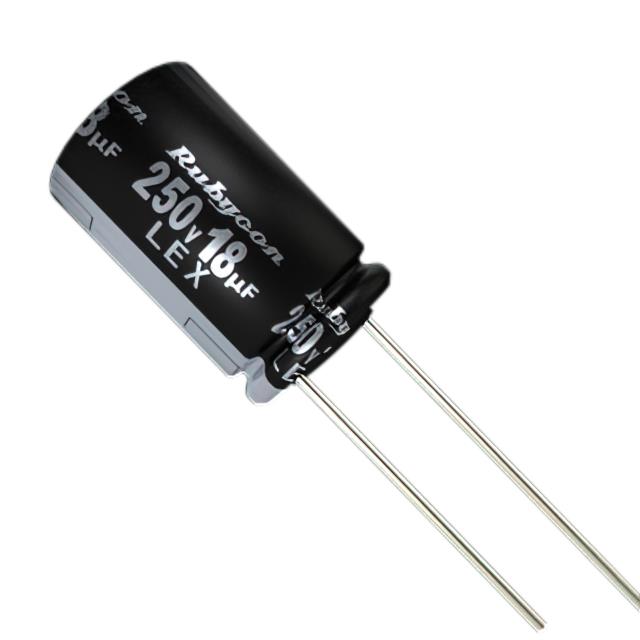

LEX Series

Manufacturer: Rubycon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED HIGH TEMPERATURE ELECTROLYTIC CAPACITORS

Part	Package / Case	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Lifetime @ Temp.	Polarization	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ripple Current @ Low Frequency	Applications	Tolerance	Ripple Current @ High Frequency	Capacitance	Lead Spacing	Lead Spacing	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Rubycon 160LEX10MEFC8X9	Can Radial	160 V	0.315 in	8 mm	125 °C	-40 C	4000 Hrs	Polar	11 mm	0.433 in	70 mA	General Purpose	20 %	133 mA	10 µF	0.138 in	3.5 mm	Through Hole
Rubycon 250LEX1R8MEFC6.3X11	Can Radial	250 V	0.248 "	6.3 mm	125 °C	-40 C	4000 Hrs	Polar	13 mm	0.512 "	33 mA	General Purpose	20 %	66 mA	1.8 µF	0.098 in	2.5 mm	Through Hole
Rubycon 200LEX10MEFC8X11.5	Can Radial	200 VDC	0.315 in	8 mm	125 °C	-40 C	5000 Hrs	Polar			80 mA	General Purpose	20 %	152 mA	10 µF	0.138 in	3.5 mm	Through Hole	0.531 in	13.5 mm
Rubycon 200LEX4R7MEFC6.3X11	Can Radial	200 VDC	0.248 "	6.3 mm	125 °C	-40 C	4000 Hrs	Polar	13 mm	0.512 "	49 mA	General Purpose	20 %	98 mA	4.7 µF	0.098 in	2.5 mm	Through Hole
Rubycon 200LEX6R8MEFC8X9	Can Radial	200 VDC	0.315 in	8 mm	125 °C	-40 C	4000 Hrs	Polar	11 mm	0.433 in	62 mA	General Purpose	20 %	117 mA	6.8 µF	0.138 in	3.5 mm	Through Hole
Rubycon 400LEX1R5MEFC8X9	Can Radial	400 V	0.315 in	8 mm	125 °C	-40 C	4000 Hrs	Polar	11 mm	0.433 in	30 mA	General Purpose	20 %	60 mA	1500 nF	0.138 in	3.5 mm	Through Hole
