U37F Series

Manufacturer: Chemi-Con

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SCREW TERMINAL 5600UF 420 VOLTS 20%

Part	Lifetime @ Temp.	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Package / Case	Ripple Current @ High Frequency	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Polarization	ESR (Equivalent Series Resistance)	Tolerance	Capacitance	Ripple Current @ Low Frequency	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance [Min]	Tolerance [Max]
Chemi-Con E37F421CPN562MEB7M	5000 Hrs	Chassis Mount	118 mm	4.646 in	85 °C	-40 C	General Purpose	Radial Can - Screw Terminals	24.111 A	420 V	3 in	76.2 mm	Polar	17 mOhm	20 %	5.6 mF	17.1 A	1.252 in	31.8 mm
Chemi-Con E37F401CPN392ME92M	5000 Hrs	Chassis Mount		93 mm	85 °C	-40 C	General Purpose	Radial Can - Screw Terminals	20.163 A	400 V	3 in	76.2 mm	Polar	21 mOhm	20 %	3900 µF	14.3 A	1.252 in	31.8 mm	3.661 in
Chemi-Con E37F451CPN103MFE3U	5000 Hrs	Chassis Mount			85 °C	-40 C	General Purpose	Radial Can - Screw Terminals		450 V	3.504 in	89 mm	Polar		20 %	10000 µF		1.252 in	31.8 mm		5.63 in	143 mm
Chemi-Con E37F251CDC123QEB7U	5000 Hrs	Chassis Mount			85 °C	-40 C	General Purpose	Radial Can - Screw Terminals		250 V	3 in	76.2 mm	Polar			12000 µF		1.252 in	31.8 mm		4.606 "	117 mm	-10 %	30 %
Chemi-Con E37F421CPN272MD92M	5000 Hrs	Chassis Mount		93 mm	85 °C	-40 C	General Purpose	Radial Can - Screw Terminals	14.241 A	420 V	2.5 in	63.5 mm	Polar	34 mOhm	20 %	2700 µF	10.1 A	1.126 "	28.6 mm	3.661 in

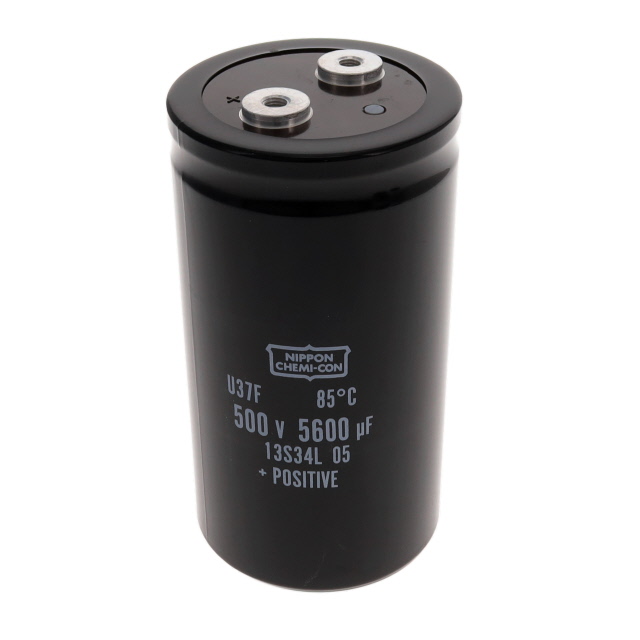

Chemi-Con E37F501CPN562MEE3U	5000 Hrs	Chassis Mount			85 °C	-40 C	General Purpose	Radial Can - Screw Terminals	24.111 A	500 V	3 in	76.2 mm	Polar	20 mOhm	20 %	5.6 mF	17.1 A	1.252 in	31.8 mm		5.669 in	144 mm
Chemi-Con E37F421CPS682MEE3U	5000 Hrs	Chassis Stud Mount			85 °C	-40 C	General Purpose	Radial Can - Screw Terminals	28.3 A	420 V	3 in	76.2 mm	Polar	14 mOhm	20 %	6800 µF	20.2 A	1.252 in	31.8 mm		5.669 in	144 mm
Chemi-Con E37F421CPN332MDA5M	5000 Hrs	Chassis Mount			85 °C	-40 C	General Purpose	Radial Can - Screw Terminals	16.497 A	420 V	2.5 in	63.5 mm	Polar	28 mOhm	20 %	3.3 mF	11.7 A	1.126 "	28.6 mm		4.173 in	106 mm
