1N400X Series

Catalog

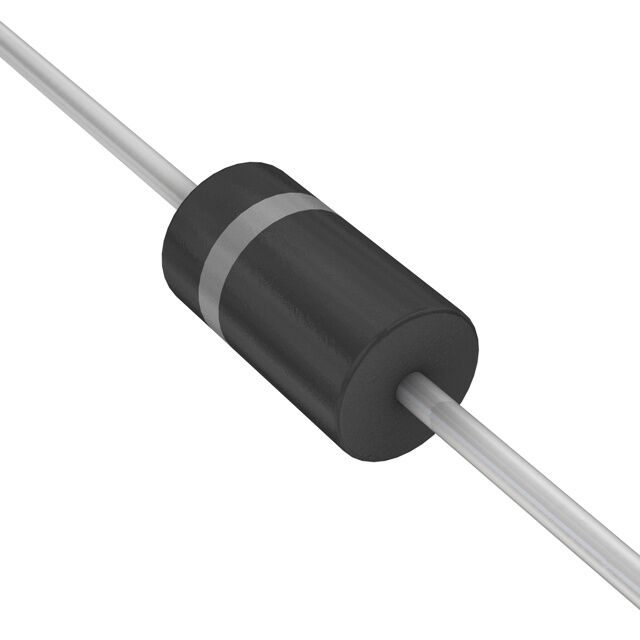

RECTIFIERS DIODE, DO-41, 1300V, 1A

Part	Current - Reverse Leakage	Mounting Type	Speed - Fast Recovery (Minimum)	Speed	Speed - Recovery Current	Speed - Recovery Time	Operating Temperature - Junction (Min)	Operating Temperature - Junction (Max)	Reverse Recovery Time (trr)	Current - Average Rectified (Io)	Package Name	Package / Case	Technology	Voltage - Forward (Vf) (Max)	Voltage - DC Reverse (Vr) (Max)	Qualification	Grade
Diotec Semiconductor 1N4007-13	5 µA	Through Hole	200 mA 500 ns	Standard Recovery	200 mA 200 mA	500 ns	-50 °C	175 °C	1500 ns	1 A	DO-204AC (DO-41)	Axial DO-204AC DO-41	Standard	1.1 V	1300 V
Diotec Semiconductor 1N4004GP-AQ	5 µA	Through Hole	200 mA 500 ns	Standard Recovery	200 mA 200 mA	500 ns	-50 °C	175 °C	1500 ns	1 A	DO-204AC (DO-41)	Axial DO-204AC DO-41	Standard	1.1 V	400 V	AEC-Q101	Automotive
Diotec Semiconductor 1N4006	5 µA	Through Hole	200 mA 500 ns	Standard Recovery	200 mA 200 mA	500 ns	-50 °C	175 °C	1500 ns	1 A	DO-204AC (DO-41)	Axial DO-204AC DO-41	Standard	1.1 V	800 V
Diotec Semiconductor 1N4007GP-AQ	5 µA 5 µA	Through Hole	200 mA 500 ns	Standard Recovery	200 mA 200 mA	500 ns	-50 °C	175 °C	1500 ns	1 A	DO-204AC (DO-41)	Axial DO-204AC DO-41	Standard	1.1 V	1 kV	AEC-Q101	Automotive
