9376-9113 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

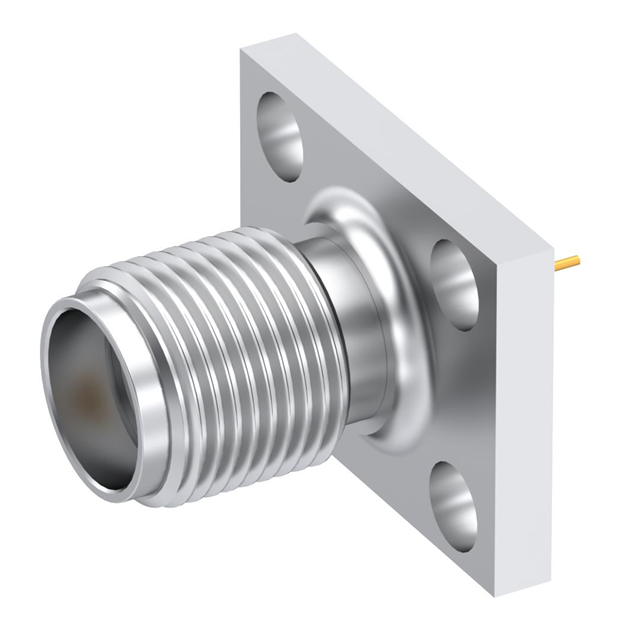

SMA F STR SQF
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Mating Cycles | Body Material | Center Contact Plating | Connector Style | Features | Contact Termination | Frequency - Max [Max] | Fastening Type | Mounting Feature | Number of Ports | Shield Termination | Center Contact Material | Connector Type | Mounting Type | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 500 | Stainless Steel | Gold | SMA | Extended Insulation | Solder | 18 GHz | Threaded | Flange | 1 | Solder | Beryllium Copper | Female Socket Jack | Panel Mount | 50 Ohms |
