MNU14 Series

Catalog

CONN TERM RCPT 14-16AWG CRIMP

Part	Material - Insulation	Contact Finish	Length - Overall [x]	Length - Overall [x]	Termination	Contact Material	Insulation	Diameter - Barrel [diameter]	Diameter - Barrel [diameter]	Terminal Type	Color	Wire Gauge [Min]	Wire Gauge [Max]	Insulation Diameter	Insulation Diameter	Features	Tab Thickness	Tab Thickness	Tab Width [x]	Tab Width [x]	Mounting Type	Gender
3M Electronic Specialty MNU14-156DFIK	Nylon Polyamide (PA)	Tin	25.91 mm	1.02 in	Crimp	Brass	Fully Insulated	0.156 in	3.96 mm	Female Receptacle (Socket)	Blue	14 AWG	16 AWG
3M Electronic Specialty MNU14-180DFIK-A	Nylon Polyamide (PA)	Tin	25.91 mm	1.02 in	Crimp	Brass	Fully Insulated			Female Receptacle (Socket)	Blue	14 AWG	16 AWG	0.145 in	3.68 mm	Butted Seam

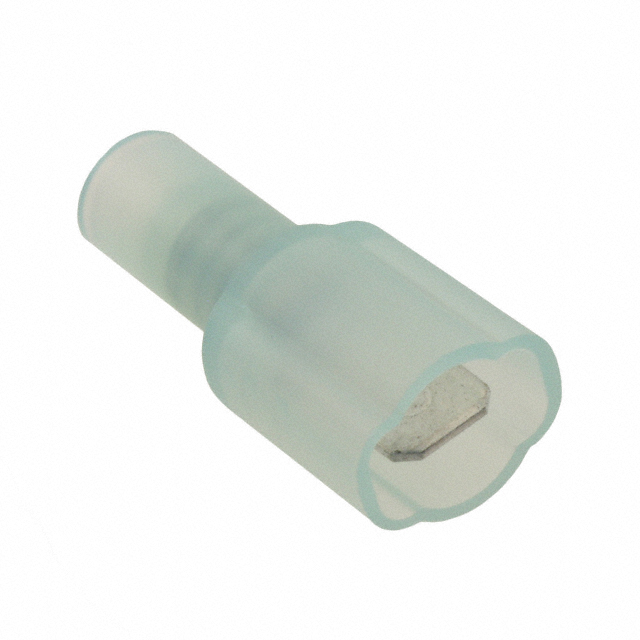

3M Electronic Specialty MNU14-187DMIX-BOTTLE		Tin	22.1 mm	0.87 in	Crimp	Copper ETP	Fully Insulated			Standard	Blue	14 AWG	16 AWG	0.145 in	3.68 mm	Butted Seam	0.02 in	0.51 mm	0.187 in	4.75 mm	Free Hanging (In-Line)	Male
3M Electronic Specialty MNU14-250DFIK		Tin	22.1 mm	0.87 in	Crimp	Brass	Fully Insulated			Standard	Blue	14 AWG	16 AWG	0.145 in	3.68 mm	Butted Seam	0.032 in	0.81 mm	0.25 in	6.35 mm	Free Hanging (In-Line)	Female
3M Electronic Specialty MNU14-250DMIX-BOTTLE		Tin	24.13 mm	0.95 "	Crimp	Copper ETP	Fully Insulated			Standard	Blue	14 AWG	16 AWG			Butted Seam	0.032 in	0.81 mm	0.25 in	6.35 mm	Free Hanging (In-Line)	Male
3M Electronic Specialty MNU14-187DFIK		Tin	20.57 mm	0.81 "	Crimp	Brass	Fully Insulated			Standard	Blue	14 AWG	16 AWG	0.145 in	3.68 mm	Butted Seam	0.02 in	0.51 mm	0.187 in	4.75 mm	Free Hanging (In-Line)	Female
