CLS0362 Series

Catalog

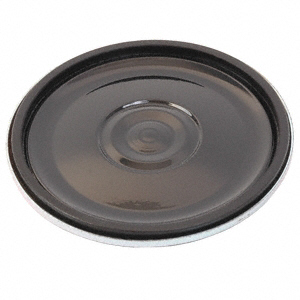

SPEAKER 8OHM 500MW TOP PORT 89DB

Part	Power - Max [Max]	Impedance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Efficiency - Testing	Frequency - Self Resonant	Efficiency - Type	Efficiency - dBA	Frequency Range [Min]	Frequency Range [Max]	Technology	Size / Dimension [diameter]	Size / Dimension [diameter]	Port Location	Type	Material - Cone	Termination	Power - Rated	Shape	Material - Magnet	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Same Sky (Formerly CUI Devices) CLS0362MA-1	1 W	8 Ohms	0.197 in	5 mm	500 mm 500 mW	550 Hz	Sound Pressure Level (SPL)	89 dBA	550 Hz	6 kHz	Magnetic	1.417 in	36 mm	Top	Low Profile	Polyester Polyethylene Terephthalate (PET)	Solder Pads	500 mW	Round	Nd-Fe-B
Same Sky (Formerly CUI Devices) CLS0362MA-1	1 W	8 Ohms	0.197 in	5 mm	500 mm 500 mW	550 Hz	Sound Pressure Level (SPL)	89 dBA	550 Hz	6 kHz	Magnetic	1.417 in	36 mm	Top	Low Profile	Polyester Polyethylene Terephthalate (PET)	Solder Pads	500 mW	Round	Nd-Fe-B
Same Sky (Formerly CUI Devices) CLS0362MA-1-L152	1 W	8 Ohms			500 mm 500 mW	550 Hz	Sound Pressure Level (SPL)	89 dBA	550 Hz	6 kHz	Magnetic	1.417 in	36 mm	Top	Low Profile	Polyester Polyethylene Terephthalate (PET)	Wire Leads	500 mW	Round	Nd-Fe-B	0.209 "	5.3 mm
Same Sky (Formerly CUI Devices) CLS0362MA-1-L152	1 W	8 Ohms			500 mm 500 mW	550 Hz	Sound Pressure Level (SPL)	89 dBA	550 Hz	6 kHz	Magnetic	1.417 in	36 mm	Top	Low Profile	Polyester Polyethylene Terephthalate (PET)	Wire Leads	500 mW	Round	Nd-Fe-B	0.209 "	5.3 mm
