Phantom Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

RF ANT 460MHZ DOME N FEM PAN MT

Part	VSWR	Height (Max) [z]	Height (Max) [z]	Frequency Group [Max]	Frequency Group	Frequency Group [Min]	Number of Bands	Power - Max [Max]	Mounting Type	Termination	Frequency (Center/Band)	Antenna Type	Gain	Frequency Range [Max]	Frequency Range [Min]	RF Family/Standard	Height (Max) [Max] [z]	Applications	Return Loss
TE Connectivity AMP Connectors TRAB4503P	2	105.03 mm	4.135 in	1 GHz	UHF	300 MHz	1	150 W	Panel Mount	N Type Female	460 MHz	Dome	3 dBi	470 MHz	450 MHz
TE Connectivity AMP Connectors TRA9023P		68.58 mm		1 GHz	UHF	300 MHz	1	150 W	Panel Mount	N Type Female	915 MHz	Dome	3 dBi	928 MHz	902 MHz	Cellular	2.7 in	GSM
TE Connectivity AMP Connectors ETRAB4063	2	86.36 mm	3.4 in	1 GHz	UHF	300 MHz	1		Base Mount	NMO	418 MHz	Whip Straight	3 dBi	430 MHz	406 MHz

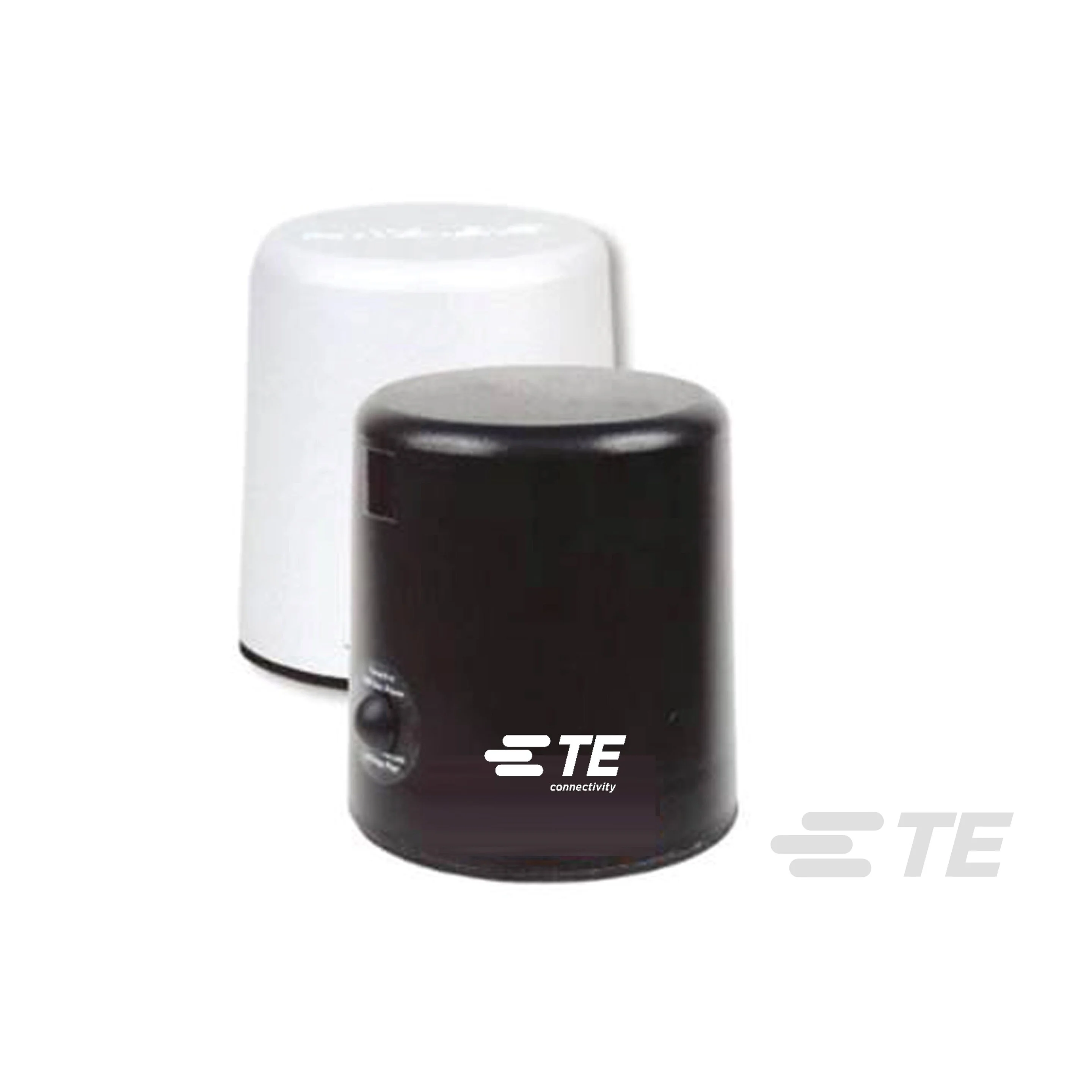

TE Connectivity AMP Connectors TRAT1420		88.9 mm			VHF (f < 300MHz)		1	60 W	Base Mount	NMO	151 MHz	Dome	0 dBi	160 MHz	142 MHz		3.5 in
TE Connectivity AMP Connectors TRA24003	2	58.42 mm	2.3 in				1	100 W	Base Mount	NMO	2.4 GHz	Dome	3 dBi	2.5 GHz	2.4 GHz	Cellular WiFi		GSM Wi-Fi
TE Connectivity AMP Connectors TRA8063M3PW-001	2.1	83.8 mm	3.299 in		Wide Band		3	100 W	Panel Mount	N Type Female	1.9 GHz 2.6 GHz 850 MHz	Dome	3 dBi 3.5 dBi 4 dBi	1.99 GHz 2.7 GHz 896 MHz	1.85 GHz 2.5 GHz 806 MHz				-10 dB
TE Connectivity AMP Connectors TRA24003P	2	58.42 mm	2.3 in				1	100 W	Panel Mount	N Type Female	2.4 GHz	Dome	3 dBi	2.5 GHz	2.4 GHz	Cellular WiFi		GSM Wi-Fi
TE Connectivity AMP Connectors TRAT1420		88.9 mm			VHF (f < 300MHz)		1	60 W	Base Mount	NMO	151 MHz	Dome	0 dBi	160 MHz	142 MHz		3.5 in
TE Connectivity AMP Connectors TRA24003P	2	58.42 mm	2.3 in				1	100 W	Panel Mount	N Type Female	2.4 GHz	Dome	3 dBi	2.5 GHz	2.4 GHz	Cellular WiFi		GSM Wi-Fi
TE Connectivity AMP Connectors TRA9023P		68.58 mm		1 GHz	UHF	300 MHz	1	150 W	Panel Mount	N Type Female	915 MHz	Dome	3 dBi	928 MHz	902 MHz	Cellular	2.7 in	GSM
