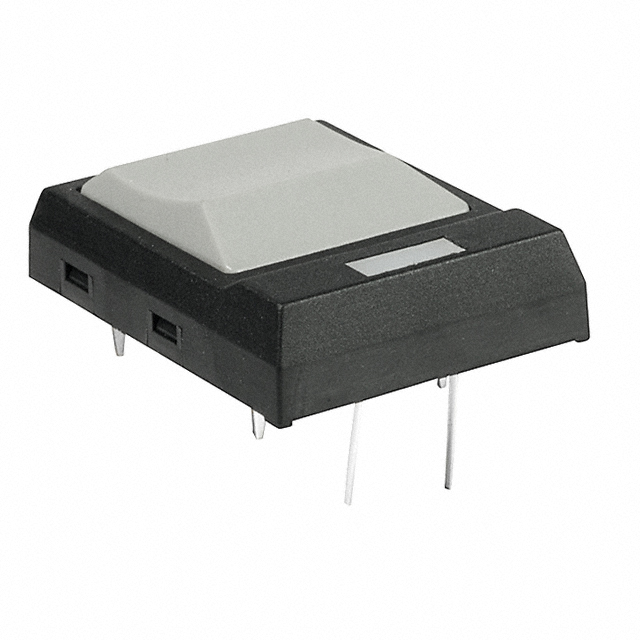

JF15RP3H Series
Manufacturer: NKK Switches
Beta
⌘K
ILLUMINATED ULTRA-THIN PROCESS SEALED TACTILE
| Part | Switch Travel | Mechanical Life | Actuator Material | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Switch Function | Features | Illumination Type, Color | Actuator Orientation | Illumination | Operating Force | Outline [x] | Outline [y] | Circuit | Termination Style | Actuator Height off PCB, Vertical [z] | Illumination Voltage (Nominal) | Contact Rating @ Voltage | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 0.8 mm | 500000 Cycles | Polyamide (PA) Nylon | Through Hole | -25 °C | 70 °C | Off-Mom | Process Sealed | Green LED | Top Actuated | Illuminated | 0.2 kgf | 22.8 mm | 17.7 mm | SPST-NO | PC Pin | 6.78 mm | 2 VDC | 0.05 A 24 VDC | Square Button |
