SS16 Series

Manufacturer: MCC (Micro Commercial Components)

Catalog

DIODE SCHOTTKY 60V 1A DO214AC

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Package / Case	Technology	Supplier Device Package	Capacitance @ Vr, F	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Current - Average Rectified (Io)	Speed	Mounting Type	Voltage - Forward (Vf) (Max) @ If [Max]	Qualification	Grade
MCC (Micro Commercial Components) SS16-LTP	60 V	500 µA	DO-214AC SMA	Schottky	DO-214AC (SMA)	110 pF	-55 °C	150 °C	1 A	200 mA 500 ns	Surface Mount	700 mV
MCC (Micro Commercial Components) SS16FL-TP	60 V	500 µA	DO-221AC SMA Flat Leads	Schottky	DO-221AC (SMA-FL)	110 pF	-55 °C	150 °C	1 A	200 mA 500 ns	Surface Mount	700 mV
MCC (Micro Commercial Components) SS16-TP	60 V	500 µA	DO-214AC SMA	Schottky	DO-214AC (SMA)		-55 °C	125 °C	1 A	200 mA 500 ns	Surface Mount	700 mV
MCC (Micro Commercial Components) SS16HE3-LTP	60 V	100 µA	DO-214AC SMA	Schottky	DO-214AC (SMA)	45 pF	-55 °C	150 °C	1 A	200 mA 500 ns	Surface Mount	700 mV	AEC-Q101	Automotive

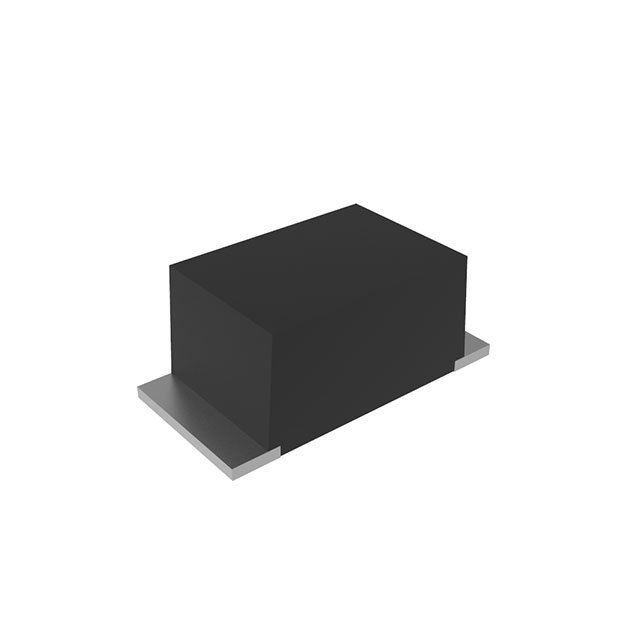

MCC (Micro Commercial Components) SS16FH-TP	60 V	500 µA	SC-90 SOD-323F	Schottky	SOD-323FH		-55 °C	150 °C	1 A	200 mA 500 ns	Surface Mount	700 mV
MCC (Micro Commercial Components) SS16-LTP	60 V	500 µA	DO-214AC SMA	Schottky	DO-214AC (SMA)	110 pF	-55 °C	150 °C	1 A	200 mA 500 ns	Surface Mount	700 mV
MCC (Micro Commercial Components) SS16E-TPS03	60 V	500 µA	DO-214AC SMA	Standard	SMAE	110 pF	-55 °C	150 °C	1 A	200 mA 500 ns	Surface Mount	700 mV
MCC (Micro Commercial Components) SS16-TP	60 V	500 µA	DO-214AC SMA	Schottky	DO-214AC (SMA)		-55 °C	125 °C	1 A	200 mA 500 ns	Surface Mount	700 mV
MCC (Micro Commercial Components) SS16FH-TP	60 V	500 µA	SC-90 SOD-323F	Schottky	SOD-323FH		-55 °C	150 °C	1 A	200 mA 500 ns	Surface Mount	700 mV
MCC (Micro Commercial Components) SS16FL-TP	60 V	500 µA	DO-221AC SMA Flat Leads	Schottky	DO-221AC (SMA-FL)	110 pF	-55 °C	150 °C	1 A	200 mA 500 ns	Surface Mount	700 mV
