0553-2 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .015-.022 HEX

Part	Operating Temperature [Min]	Operating Temperature [Max]	Length - Overall [x]	Length - Overall [x]	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Tail Type	Flange Diameter [diameter]	Flange Diameter [diameter]	Mounting Hole Diameter	Mounting Hole Diameter	Termination	Contact Finish	Socket Depth [z]	Socket Depth [z]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]
Mill-Max Manufacturing Corp. 0553-2-15-01-21-27-10-0	-55 C	125 °C	0.17 in	4.32 mm	30 Áin	0.76 Ám	Beryllium Copper	No Tail	1.4 mm	0.055 in	0.041 in	1.04 mm	Hex Press-Fit	Gold	0.154 in	3.91 mm	0.031 in	0.79 mm	0.38 mm	0.022 in	0.015 "	0.56 mm

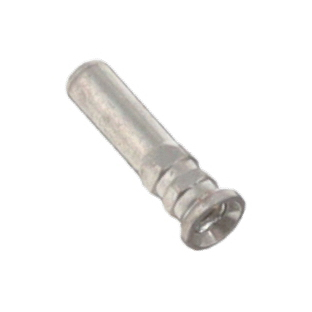

Mill-Max Manufacturing Corp. 0553-2-15-01-11-02-10-0	-55 C	125 °C	0.17 in	4.32 mm	100 µin	2.54 µm	Beryllium Copper	No Tail	1.4 mm	0.055 in	0.041 in	1.04 mm	Hex Press-Fit	Tin-Lead	0.154 in	3.91 mm	0.031 in	0.79 mm	0.38 mm	0.02 in	0.015 "		0.51 mm
Mill-Max Manufacturing Corp. 0553-2-15-15-21-14-10-0	-55 C	125 °C	0.17 in	4.32 mm	10 Áin	0.25 Ám	Beryllium Copper	No Tail	1.4 mm	0.055 in	0.041 in	1.04 mm	Hex Press-Fit	Gold	0.154 in	3.91 mm	0.031 in	0.79 mm	0.38 mm	0.02 in	0.015 "		0.51 mm
Mill-Max Manufacturing Corp. 0553-2-15-01-21-14-10-0	-55 C	125 °C	0.17 in	4.32 mm	10 Áin	0.25 Ám	Beryllium Copper	No Tail	1.4 mm	0.055 in	0.041 in	1.04 mm	Hex Press-Fit	Gold	0.154 in	3.91 mm	0.031 in	0.79 mm	0.38 mm	0.022 in	0.015 "	0.56 mm

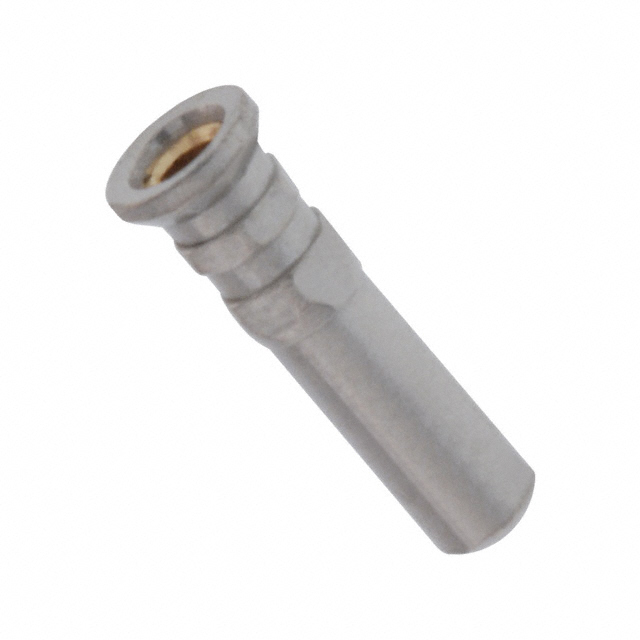

Mill-Max Manufacturing Corp. 0553-2-15-15-11-27-10-0	-55 C	125 °C	0.17 in	4.32 mm	30 Áin	0.76 Ám	Beryllium Copper	No Tail	1.4 mm	0.055 in	0.041 in	1.04 mm	Hex Press-Fit	Gold	0.154 in	3.91 mm	0.031 in	0.79 mm	0.38 mm	0.02 in	0.015 "		0.51 mm
Mill-Max Manufacturing Corp. 0553-2-15-80-11-27-10-0	-55 C	125 °C	0.17 in	4.32 mm	30 Áin	0.76 Ám	Beryllium Copper	No Tail	1.4 mm	0.055 in	0.041 in	1.04 mm	Hex Press-Fit	Gold	0.154 in	3.91 mm	0.031 in	0.79 mm	0.38 mm	0.02 in	0.015 "		0.51 mm
Mill-Max Manufacturing Corp. 0553-2-15-15-21-27-10-0	-55 C	125 °C	0.17 in	4.32 mm	30 Áin	0.76 Ám	Beryllium Copper	No Tail	1.4 mm	0.055 in	0.041 in	1.04 mm	Hex Press-Fit	Gold	0.154 in	3.91 mm	0.031 in	0.79 mm	0.38 mm	0.022 in	0.015 "	0.56 mm
Mill-Max Manufacturing Corp. 0553-2-15-80-21-14-10-0	-55 C	125 °C	0.17 in	4.32 mm	10 Áin	0.25 Ám	Beryllium Copper	No Tail	1.4 mm	0.055 in	0.041 in	1.04 mm	Hex Press-Fit	Gold	0.154 in	3.91 mm	0.031 in	0.79 mm	0.38 mm	0.02 in	0.015 "		0.51 mm
Mill-Max Manufacturing Corp. 0553-2-15-01-11-27-10-0	-55 C	125 °C	0.17 in	4.32 mm	30 Áin	0.76 Ám	Beryllium Copper	No Tail	1.4 mm	0.055 in	0.041 in	1.04 mm	Hex Press-Fit	Gold	0.154 in	3.91 mm	0.031 in	0.79 mm	0.38 mm	0.02 in	0.015 "		0.51 mm
Mill-Max Manufacturing Corp. 0553-2-15-01-11-14-10-0	-55 C	125 °C	0.17 in	4.32 mm	10 Áin	0.25 Ám	Beryllium Copper	No Tail	1.4 mm	0.055 in	0.041 in	1.04 mm	Hex Press-Fit	Gold	0.154 in	3.91 mm	0.031 in	0.79 mm	0.38 mm	0.02 in	0.015 "		0.51 mm
