16282-3S Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

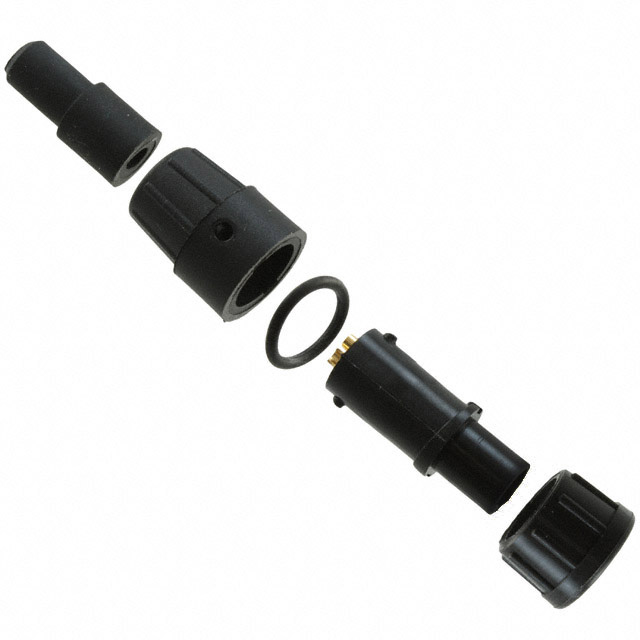

CIRCULAR CONNECTOR, MICRO-CON-X SERIES, CABLE MOUNT RECEPTACLE, 3 CONTACTS, SOLDER SOCKET, BAYONET
| Part | Applications | Contact Material | Backshell Material, Plating | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Features | Material Flammability Rating | Primary Material | Ingress Protection | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Orientation | Contact Finish - Mating | Connector Type | Mounting Type | Voltage Rating | Shielding | Color | Current Rating (Amps) | Cable Opening [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Data Industrial Instrumentation Medical | Copper Alloy | Thermoplastic | 0.14 in | 2.29 mm | 0.09 in | 3.56 mm | Backshell | UL94 HB | Plastic | IP67 - Dust Tight Waterproof | Bayonet Lock | 85 °C | -40 C | Keyed | Gold | Plug Female Sockets | Free Hanging (In-Line) | 600 VAC | Unshielded | Black | 7.5 A | |
 SWITCHCRAFT/CONXALL | Data Industrial Instrumentation Medical | Copper Alloy | Thermoplastic | 0.2 " | 4.57 mm | 0.18 " | Backshell | UL94 HB | Plastic | IP67 - Dust Tight Waterproof | Bayonet Lock | 85 °C | -40 C | Keyed | Gold | Plug Female Sockets | Free Hanging (In-Line) | 600 VAC | Unshielded | Black | 7.5 A | 5.08 mm |
