ADW110 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K

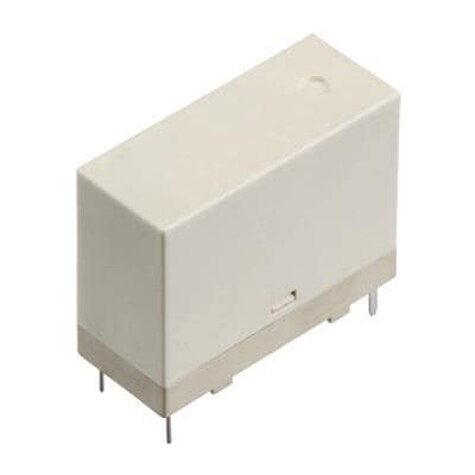

POWER RELAY, SPST-NO, 3 VDC, 8 A, DW(ADW1) SERIES, THROUGH HOLE, LATCHING SINGLE COIL
| Part | Coil Resistance | Load - Max Switching [Max] | Coil Current | Mounting Type | Approval Agency | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Relay Type | Coil Type | Contact Form | Switching Voltage [Max] | Must Operate Voltage | Contact Material | Seal Rating | Release Time | Coil Insulation | Contact Rating (Current) | Operate Time | Load - Max Switching | Coil Voltage | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 45 Ohms | 2000 VA | 66.7 mA | Through Hole | CQC cURus VDE | PC Pin | 85 °C | -40 C | General Purpose | Latching Single Coil | SPST-NO (1 Form A) | 250 VAC | 2.4 VDC | Silver Tin Oxide (AgSnO) | Sealed - Flux Protection | 15 ms | Class F | 8 A | 15 ms | |||
 Panasonic Electronic Components | 405 Ohms | 22.2 mA | Through Hole | CQC cURus VDE | PC Pin | 85 °C | -40 C | General Purpose | Latching Single Coil | SPST-NO (1 Form A) | 277 VAC | 7.2 VDC | Silver Tin Oxide (AgSnO) | Sealed - Flux Protection | 15 ms | Class F | 16 A | 15 ms | 4432 VA | 9 VDC | ||
 Panasonic Electronic Components | 45 Ohms | 2000 VA | 66.7 mA | Through Hole | CQC cURus VDE | PC Pin | 85 °C | -40 C | General Purpose | Latching Single Coil | SPST-NO (1 Form A) | 250 VAC | 2.4 VDC | Silver Tin Oxide (AgSnO) | Sealed - Flux Protection | 15 ms | Class F | 8 A | 15 ms | IEC Compliant | ||
 Panasonic Electronic Components | 180 Ohms | 33.3 mA | Through Hole | CQC cURus VDE | PC Pin | 85 °C | -40 C | General Purpose | Latching Single Coil | SPST-NO (1 Form A) | 277 VAC | 4.8 VDC | Silver Tin Oxide (AgSnO) | Sealed - Flux Protection | 15 ms | Class F | 16 A | 15 ms | 4432 VA | IEC Compliant | ||
Panasonic Electronic Components | 405 Ohms | 22.2 mA | Through Hole | CQC cURus VDE | PC Pin | 85 °C | -40 C | General Purpose | Latching Single Coil | SPST-NO (1 Form A) | 277 VAC | 7.2 VDC | Silver Tin Oxide (AgSnO) | Sealed - Flux Protection | 15 ms | Class F | 16 A | 15 ms | 4432 VA | 9 VDC | IEC Compliant | |
 Panasonic Electronic Components | 405 Ohms | 2000 VA | 22.2 mA | Through Hole | CQC cURus VDE | PC Pin | 85 °C | -40 C | General Purpose | Latching Single Coil | SPST-NO (1 Form A) | 250 VAC | 7.2 VDC | Silver Tin Oxide (AgSnO) | Sealed - Flux Protection | 15 ms | Class F | 8 A | 15 ms | 9 VDC | ||
Panasonic Electronic Components | 180 Ohms | 33.3 mA | Through Hole | CQC cURus VDE | PC Pin | 85 °C | -40 C | General Purpose | Latching Single Coil | SPST-NO (1 Form A) | 277 VAC | 4.8 VDC | Silver Tin Oxide (AgSnO) | Sealed - Flux Protection | 15 ms | Class F | 16 A | 15 ms | 4432 VA | |||
 Panasonic Electronic Components | 125 Ohms | 2000 VA | 40 mA | Through Hole | CQC cURus VDE | PC Pin | 85 °C | -40 C | General Purpose | Latching Single Coil | SPST-NO (1 Form A) | 250 VAC | 4 VDC | Silver Tin Oxide (AgSnO) | Sealed - Flux Protection | 15 ms | Class F | 8 A | 15 ms | 5 VDC | ||
 Panasonic Electronic Components | 125 Ohms | 2000 VA | 40 mA | Through Hole | CQC cURus VDE | PC Pin | 85 °C | -40 C | General Purpose | Latching Single Coil | SPST-NO (1 Form A) | 250 VAC | 4 VDC | Silver Tin Oxide (AgSnO) | Sealed - Flux Protection | 15 ms | Class F | 8 A | 15 ms | 5 VDC | IEC Compliant |
