WH/WN Series

Manufacturer: Ohmite

Catalog

WIREWOUND RESISTORS - THROUGH HOLE 1W 150 OHMS 1%

Part	Size / Dimension [diameter]	Size / Dimension [x]	Number of Terminations [custom]	Temperature Coefficient	Tolerance	Composition	Supplier Device Package	Features	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Power (Watts)	Resistance	Power (Watts)	Size / Dimension [x]	Size / Dimension [diameter]

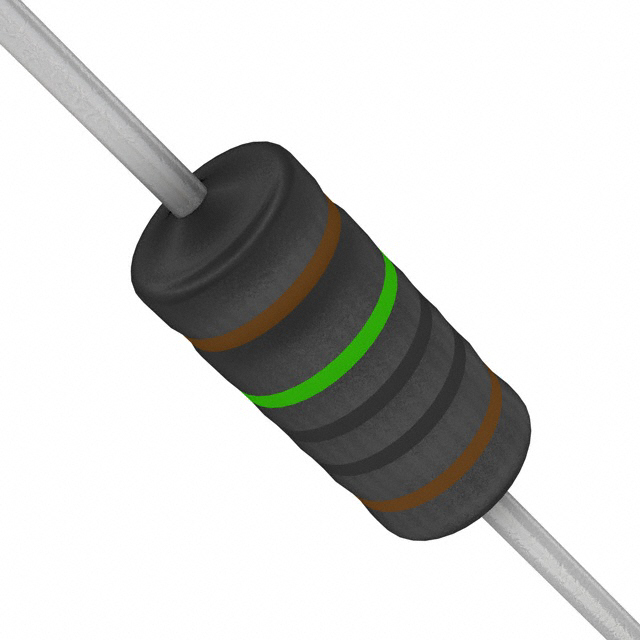

Ohmite WNB150FET	0.13 " 3.3 mm	0.276 " 7 mm	2	20 ppm/°C	1 %	Wirewound	Axial	Non-Inductive	-55 C	150 °C	Axial	1 W	150 Ohms
Ohmite WNA250FET	2.54 mm	5.08 mm	2	20 ppm/°C	1 %	Wirewound	Axial	Non-Inductive	-55 C	150 °C	Axial	0.5 W	250 Ohms	0.5 W	0.2 in	0.1 in
Ohmite WHE5K0FET	7.5 mm	20 mm	2	20 ppm/°C	1 %	Wirewound	Axial		-55 C	150 °C	Axial	5 W	5 kOhms		0.787 "	0.295 in

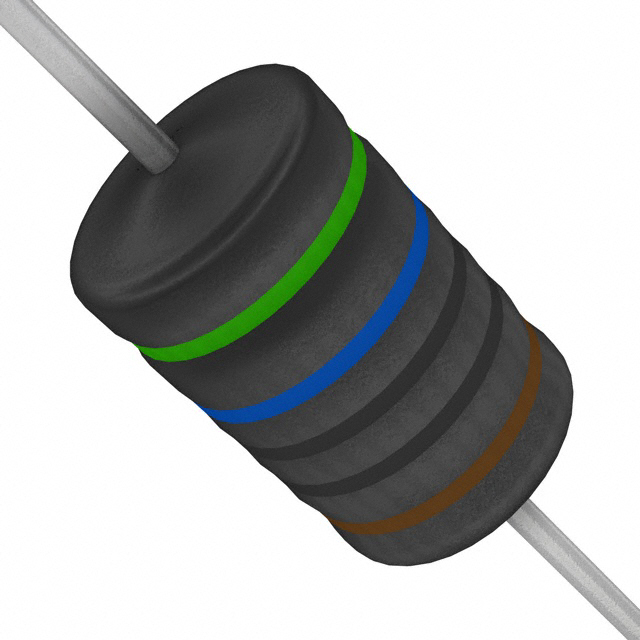

Ohmite WHC560FET	4.57 mm	11.4 mm	2	20 ppm/°C	1 %	Wirewound	Axial		-55 C	150 °C	Axial	2 W	560 Ohms		0.449 "	0.18 in
Ohmite WHA750FET	2.54 mm	5.08 mm	2	20 ppm/°C	1 %	Wirewound	Axial		-55 C	150 °C	Axial	0.5 W	750 Ohms	0.5 W	0.2 in	0.1 in
Ohmite WHC750FET	4.57 mm	11.4 mm	2	20 ppm/°C	1 %	Wirewound	Axial	Non-Inductive	-55 C	150 °C	Axial	2 W	750 Ohms		0.449 "	0.18 in
Ohmite WHC1R0FET	4.57 mm	11.4 mm	2	50 ppm/░C	1 %	Wirewound	Axial		-55 C	150 °C	Axial	2 W	1 Ohms		0.449 "	0.18 in

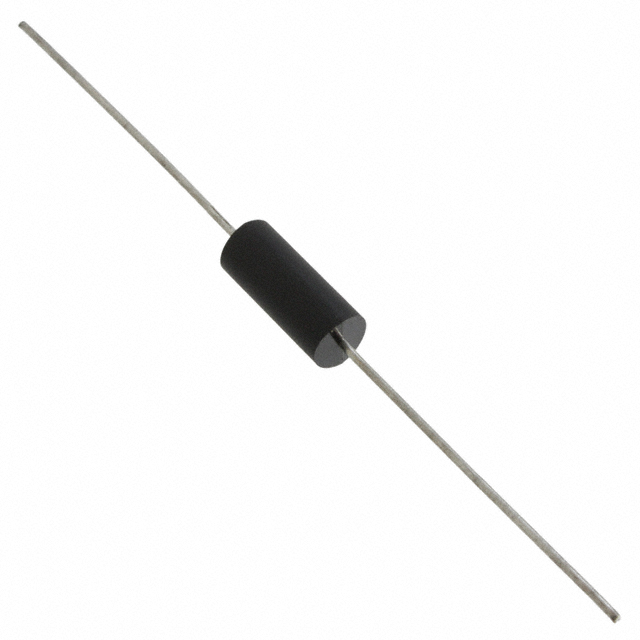

Ohmite WHD100FET	5.5 mm	13.54 mm	2	20 ppm/°C	1 %	Wirewound	Axial	Non-Inductive	-55 C	150 °C	Axial	3 W	100 Ohms		0.533 in	0.217 in

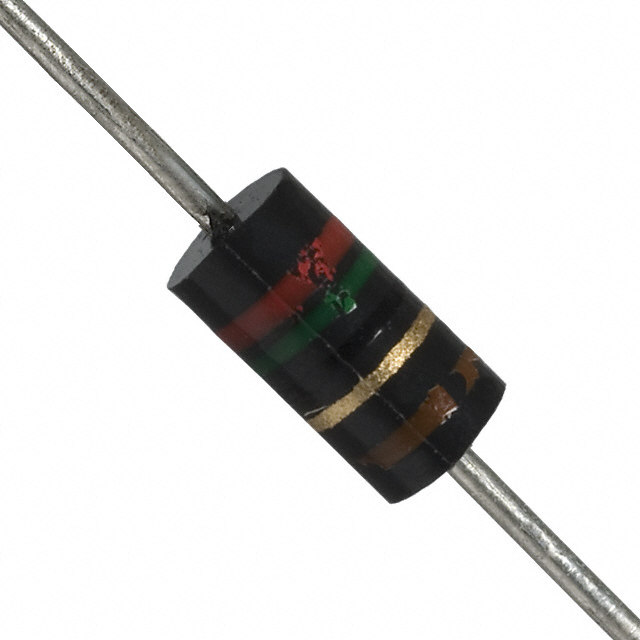

Ohmite WHA25RFET	2.54 mm	5.08 mm	2	20 ppm/°C	1 %	Wirewound	Axial		-55 C	150 °C	Axial	0.5 W	25 Ohms	0.5 W	0.2 in	0.1 in
Ohmite WNB10RFET	0.13 " 3.3 mm	0.276 " 7 mm	2	50 ppm/░C	1 %	Wirewound	Axial	Non-Inductive	-55 C	150 °C	Axial	1 W	10 Ohms
