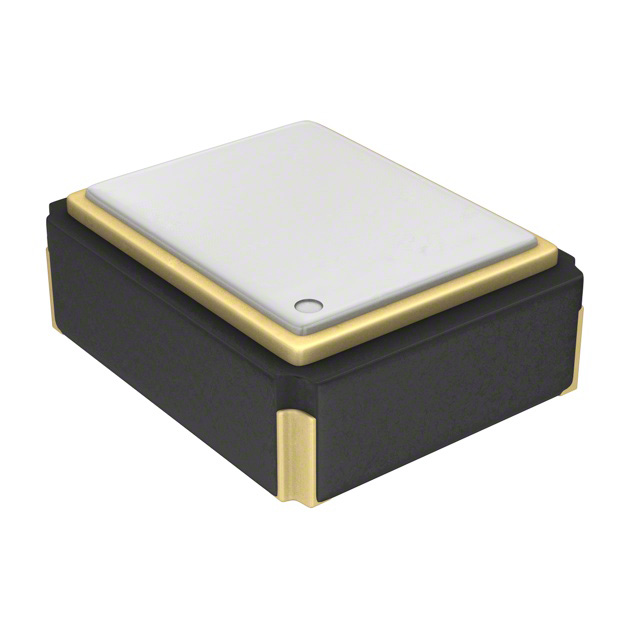

7Z Series

Catalog

TCXO OSCILLATORS 26.000MHZ SMD TCXO 2.0 X 1.6 X 0.75MM

Part	Height - Seated (Max) [Max]	Height - Seated (Max)	Base Resonator [custom]	Type	Current - Supply (Max) [Max]	Frequency Stability	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Output	Frequency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Supply
TXC CORPORATION 7Z-26.000MCS-T	0.031 in	0.8 mm	Crystal	VCTCXO	2 mA	2 ppm	Surface Mount	4-SMD No Lead	85 °C	-30 ░C	Clipped Sine Wave	26 MHz	1.6 mm	0.079 in	0.063 "	2 mm	2.5 V
TXC CORPORATION 7Z-40.000MDG-T	0.031 in	0.8 mm	Crystal	TCXO	2 mA	100 ppm	Surface Mount	4-SMD No Lead	85 °C	-40 C	Clipped Sine Wave	40 MHz	1.6 mm	0.079 in	0.063 "	2 mm	1.8 V
