ADS7142-Q1 Series

Automotive 2-channel 12-bit 140-kSPS I2C-compatible ADC with programmable threshold and host wake-up

Catalog

Automotive 2-channel 12-bit 140-kSPS I2C-compatible ADC with programmable threshold and host wake-up

Part	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Package / Case	Qualification	Supplier Device Package	Number of Inputs	Grade	Ratio - S/H:ADC	Input Type	Configuration	Architecture	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Number of A/D Converters	Sampling Rate (Per Second)	Data Interface	Mounting Type	Reference Type	Number of Bits	Operating Temperature [Max]	Operating Temperature [Min]

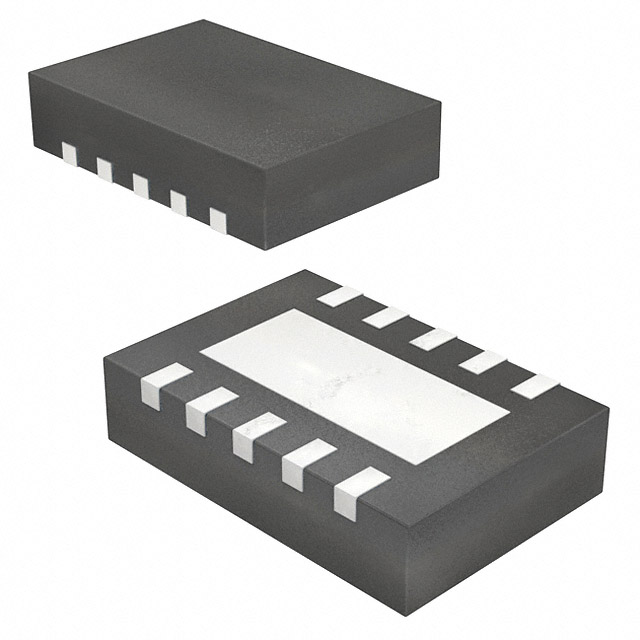

Texas Instruments ADS7142QDQCRQ1	1.65 V	3.6 V	10-WFDFN Exposed Pad	AEC-Q100	10-WSON (3x2)	2	Automotive	1:1	Pseudo-Differential	MUX-ADC	SAR	1.65 V	3.6 V	1	140 k per second	I2C	Surface Mount	Internal	12 bits	125 °C	-40 °C
Texas Instruments ADS7142IRUGT	1.65 V	3.6 V	10-XFQFN		10-X2QFN (2x1.5)	2		0:1	Pseudo-Differential Single Ended	MUX-ADC	SAR	1.65 V	3.6 V	1	140 k per second	I2C	Surface Mount	Supply	12 bits	125 °C	-40 °C
Texas Instruments ADS7142IRUGR	1.65 V	3.6 V	10-XFQFN		10-X2QFN (2x1.5)	2		0:1	Pseudo-Differential Single Ended	MUX-ADC	SAR	1.65 V	3.6 V	1	140 k per second	I2C	Surface Mount	Supply	12 bits	125 °C	-40 °C

Catalog

Automotive 2-channel 12-bit 140-kSPS I2C-compatible ADC with programmable threshold and host wake-up

Key Features

• Standalone, Nanopower Sensor Monitor forCost-sensitive DesignsSmall Package Size: 1.5 mm x 2 mmEfficient Host Sleep and Wake-upAutonomous Monitoring at 900 nWWindowed Comparator for Event-triggered Host Wake-upData Buffering during Host SleepIndependent Sensor Configuration and CalibrationDual-Channel, Pseudo-Differential, or Ground-Sense Input ConfigurationProgrammable Thresholds for CalibrationInternal Calibration improves Offset and DriftFalse Trigger PreventionProgrammable Thresholds per ChannelProgrammable Hysteresis for Noise ImmunityEvent Counter for Transient RejectionDeep Data AnalysisData Buffer for Fault DiagnosticsHigh Precision Mode for 16-bit AccuracyOne-Shot Mode for Fast Data CaptureI2C™ InterfaceCompatible from 1.65 V to 3.6 V8 Configurable AddressesUp to 3.4 MHz (High Speed)Wide Operating RangeAnalog Supply: 1.65 V to 3.6 VTemperature Range: –40°C to 125°CStandalone, Nanopower Sensor Monitor forCost-sensitive DesignsSmall Package Size: 1.5 mm x 2 mmEfficient Host Sleep and Wake-upAutonomous Monitoring at 900 nWWindowed Comparator for Event-triggered Host Wake-upData Buffering during Host SleepIndependent Sensor Configuration and CalibrationDual-Channel, Pseudo-Differential, or Ground-Sense Input ConfigurationProgrammable Thresholds for CalibrationInternal Calibration improves Offset and DriftFalse Trigger PreventionProgrammable Thresholds per ChannelProgrammable Hysteresis for Noise ImmunityEvent Counter for Transient RejectionDeep Data AnalysisData Buffer for Fault DiagnosticsHigh Precision Mode for 16-bit AccuracyOne-Shot Mode for Fast Data CaptureI2C™ InterfaceCompatible from 1.65 V to 3.6 V8 Configurable AddressesUp to 3.4 MHz (High Speed)Wide Operating RangeAnalog Supply: 1.65 V to 3.6 VTemperature Range: –40°C to 125°C

Description

The ADS7142-Q1 is a 12-bit, 140-kSPS successive-approximation register (SAR) analog-to-digital converter (ADC) that can autonomously monitor signals while maximizing system power, reliability, and performance. The device implements event-triggered interrupts per channel using a digital window comparator with programmable high and low thresholds, hysteresis, and event counter. The device includes a dual-channel analog multiplexer in front of a SAR ADC followed by an internal data buffer for converting and capturing data from sensors. The ADS7142-Q1 is available in a 10-pin WSON package and can achieve low power consumption of only 900 nW. The small form-factor and low-power consumption make this device designed for space-constrained applications. The ADS7142-Q1 is a 12-bit, 140-kSPS successive-approximation register (SAR) analog-to-digital converter (ADC) that can autonomously monitor signals while maximizing system power, reliability, and performance. The device implements event-triggered interrupts per channel using a digital window comparator with programmable high and low thresholds, hysteresis, and event counter. The device includes a dual-channel analog multiplexer in front of a SAR ADC followed by an internal data buffer for converting and capturing data from sensors. The ADS7142-Q1 is available in a 10-pin WSON package and can achieve low power consumption of only 900 nW. The small form-factor and low-power consumption make this device designed for space-constrained applications.
