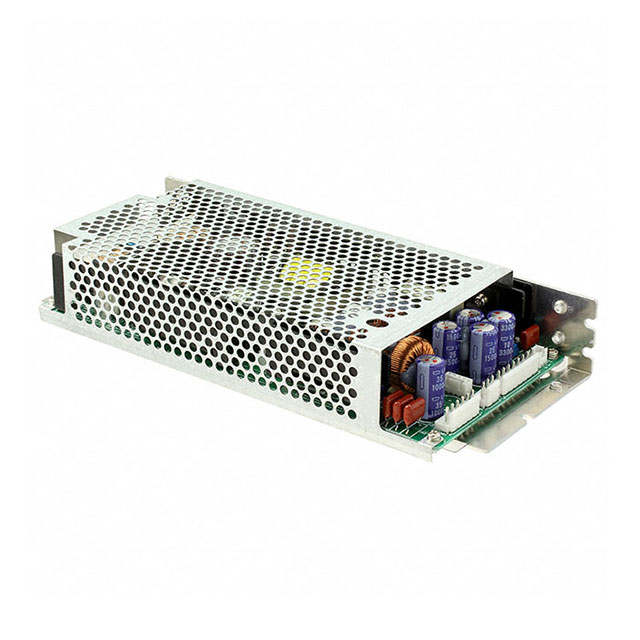

ZWQ80 Series

Catalog

AC/DC ENCLOSED POWER SUPPLY (PSU), 4 OUTPUTS, 80 W, 5 V, 8 A, 12 V, 2 A

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency	Type	Current - Output 2	Voltage - Output 3	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 4	Current - Output 3	Voltage - Isolation	Current - Output 4	Applications	Mounting Type	Features	Efficiency	Voltage - Output 2	Number of Outputs	Current - Output 1	Power (Watts)	Voltage - Output 1

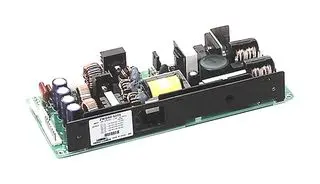

TDK Corporation ZWQ80-5222/A	-10 °C	60 °C	265 VAC	85 VAC	CE	Enclosed	2 A	-12 V	8.27 in	1.38 in	35 mm	3.68 in	93.5 mm	210 mm	12 V	2 A	3000 V	3 A	ITE (Commercial)	Chassis Mount	Adjustable Output PFC Universal Input	72 %	12 V	4	8 A	80 W	5 V
TDK Corporation ZWQ80-5224/L	-10 °C	60 °C	265 VAC	85 VAC	CE	Open Frame	2 A	-12 V	8.27 in	1.38 in	35 mm	3.68 in	93.5 mm	210 mm	24 V	2 A	3000 V	1.5 A	ITE (Commercial)	Chassis Mount	Adjustable Output PFC Universal Input	72 %	12 V	4	8 A	80 W	5 V
TDK Corporation ZWQ80-5224/A	-10 °C	60 °C	265 VAC	85 VAC	CE	Enclosed	2 A	-12 V	8.27 in	1.38 in	35 mm	3.68 in	93.5 mm	210 mm	24 V	2 A	3000 V	1.5 A	ITE (Commercial)	Chassis Mount	Adjustable Output PFC Universal Input	72 %	12 V	4	8 A	80 W	5 V
TDK Corporation ZWQ80-5225/A	-10 °C	60 °C	265 VAC	85 VAC	CE	Enclosed	2 A	-12 V	8.27 in	1.38 in	35 mm	3.68 in	93.5 mm	210 mm	5 V	2 A	3000 V	7 A	ITE (Commercial)	Chassis Mount	Adjustable Output PFC Universal Input	72 %	12 V	4	8 A	80 W	5 V
TDK Corporation ZWQ80-5225/L	-10 °C	60 °C	265 VAC	85 VAC	CE	Open Frame	2 A	-12 V	8.27 in	1.38 in	35 mm	3.68 in	93.5 mm	210 mm	5 V	2 A	3000 V	7 A	ITE (Commercial)	Chassis Mount	Adjustable Output PFC Universal Input	72 %	12 V	4	8 A	80 W	5 V
