ASPI Series

Catalog

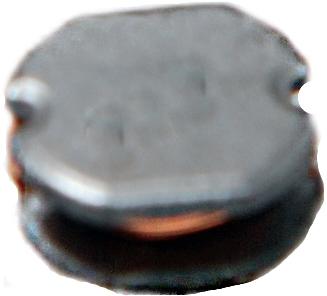

INDUCTOR POWER UNSHIELDED WIREWOUND 220UH 10% 1KHZ 0.35A 1.57OHM DCR T/R

Part	DC Resistance (DCR) [Max]	Package / Case	Mounting Type	Inductance Frequency - Test	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Type	Shielding	Material - Core	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current Rating (Amps)	Inductance	Tolerance	Height - Seated (Max) [Max] [z]	DC Resistance (DCR)	Current - Saturation (Isat)	Supplier Device Package	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]
Abracon LLC ASPI-0504-221K-T	1.57 Ohm	Nonstandard	Surface Mount	1 kHz	5.8 mm	0.205 "	0.228 in	5.2 mm	Drum Core Wirewound	Unshielded	Ferrite	85 °C	-40 C	4.5 mm	0.177 in	350 mA	220 µH	10 %
Abracon LLC ASPI-1367-3R3M-T		Nonstandard	Surface Mount	200 kHz	0.551 in	12.9 mm	14 mm	0.508 in	Drum Core Wirewound	Shielded	Ferrite	125 °C	-40 C	0.264 in		15 A	3.3 µH	20 %	6.7 mm	6.8 mOhm	29 A
Abracon LLC ASPI-0628-3R0N-T1		Nonstandard	Surface Mount	100 kHz	0.236 in	6 mm	6 mm	0.236 "	Drum Core Wirewound	Shielded	Ferrite	120 °C	-25 °C			3.4 A	3 ÁH	30 %		23 mOhm	3.6 A	0628
Abracon LLC ASPI-0504-470K-T		Nonstandard	Surface Mount	2.52 MHz	5.8 mm	0.205 "	0.228 in	5.2 mm	Wirewound	Unshielded		85 °C	-40 C	4.85 mm	0.191 in	0.72 A	47 µH	10 %
Abracon LLC ASPI-0705-271K-T	1.11 Ohm	Nonstandard	Surface Mount	1 kHz	0.307 "	7 mm	7.8 mm	0.276 in	Drum Core Wirewound	Unshielded	Ferrite	85 °C	-40 C			0.42 A	270 µH	10 %					0.217 "	5.5 mm
Abracon LLC ASPI-0504-102K-T	14.4 Ohm	Nonstandard	Surface Mount	1 kHz	5.8 mm	0.205 "	0.228 in	5.2 mm	Wirewound	Unshielded		85 °C	-40 C	4.85 mm	0.191 in	150 mA	1 mH	10 %
Abracon LLC ASPI-0504-330M-T	230 mOhm	Nonstandard	Surface Mount	2.52 MHz	5.8 mm	0.205 "	0.228 in	5.2 mm	Wirewound	Unshielded		85 °C	-40 C	4.85 mm	0.191 in	880 mA	33 µH	20 %
Abracon LLC ASPI-7318-R68M-T	5.5 mOhm	Nonstandard	Surface Mount	200 kHz	0.287 "		7.3 mm	0.268 "	Drum Core Wirewound	Shielded	Ferrite	125 °C	-55 C	3 mm	0.118 "	15.5 A	0.68 µH	20 %			22 A				6.8 mm
Abracon LLC ASPI-0840-101M-T	403 mOhm	Nonstandard	Surface Mount	100 kHz	0.315 in	8 mm	8 mm	0.315 in	Drum Core Wirewound	Shielded	Ferrite	85 °C	-40 C			1 A	100 µH	20 %			1 A		0.169 in	4.3 mm
Abracon LLC ASPI-2512-4R7M-T2		Nonstandard	Surface Mount	100 kHz	0.098 in	2 mm	2.5 mm	0.079 in	Drum Core Wirewound	Shielded	Ferrite	120 °C	-25 °C	1.2 mm	0.047 "	0.81 A	4.7 ÁH	20 %		338 mOhm	1.05 A
