R180540 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

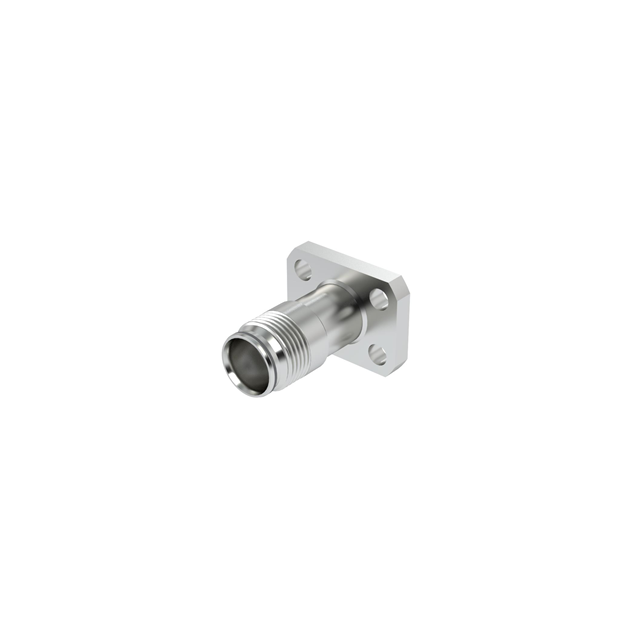

NEX10 F STR RECT P PIN C50
| Part | Body Material | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Voltage Rating | Mounting Type | Features | Connector Style | Fastening Type | Frequency - Max [Max] | Mounting Feature | Contact Termination | Impedance | Connector Type | Number of Ports | Center Contact Material | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Brass | Silver | -55 C | 125 °C | Polytetrafluoroethylene (PTFE) | 500 V | Panel Mount | Extended Insulation | NEX10 | Threaded | 20 GHz | Flange | Solder | 50 Ohms | Female Socket Jack | 1 | Beryllium Copper | Solder |
