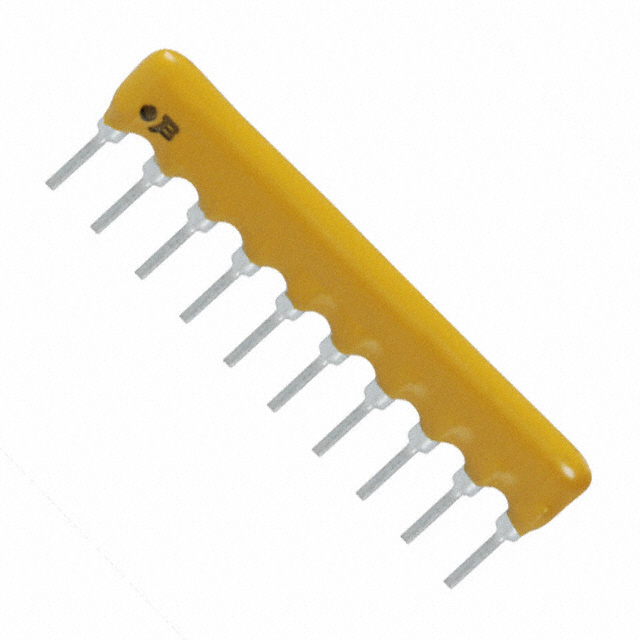

4610X Series
Manufacturer: Bourns Inc.
Beta
⌘K
RES ARRAY 5 RES 10 OHM 10SIP
| Part | Temperature Coefficient | Circuit Type | Resistance (Ohms) [custom] | Supplier Device Package | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Tolerance | Mounting Type | Number of Pins | Operating Temperature [Min] | Operating Temperature [Max] | Number of Resistors | Package / Case | Power Per Element | Tolerance | Resistance (Ohms) | Number of Resistors [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 250 ppm/°C | Isolated | 10 Ohms | 10-SIP | 0.998 in | 25.35 mm | 0.098 in | 2.49 mm | 5.08 mm | 0.2 in | ±1Ohm | Through Hole | 10 | -55 C | 125 °C | 5 | 10-SIP | 300 mW | |||
Bourns Inc. | 250 ppm/°C | Isolated | 5.6 Ohms | 10-SIP | 0.998 in | 25.35 mm | 0.098 in | 2.49 mm | 5.08 mm | 0.2 in | Through Hole | 10 | -55 C | 125 °C | 5 | 10-SIP | 300 mW | 5 % | |||
Bourns Inc. | 100 ppm/°C | Bussed | 10-SIP | 0.998 in | 25.35 mm | 0.098 in | 2.49 mm | 5.08 mm | 0.2 in | Through Hole | 10 | -55 C | 125 °C | 9 | 10-SIP | 200 mW | 2 % | 82 kOhms | |||
Bourns Inc. | 100 ppm/°C | Isolated | 10-SIP | 0.998 in | 25.35 mm | 0.098 in | 2.49 mm | 5.08 mm | 0.2 in | Through Hole | 10 | -55 C | 125 °C | 5 | 10-SIP | 300 mW | 2 % | 82 kOhms | |||
 Bourns Inc. | 100 ppm/°C | Bussed | 10-SIP | 0.998 in | 25.35 mm | 0.098 in | 2.49 mm | 5.08 mm | 0.2 in | Through Hole | 10 | -55 C | 125 °C | 9 | 10-SIP | 200 mW | 2 % | 360 Ohms | |||
Bourns Inc. | 100 ppm/°C | Bussed | 820 Ohms | 10-SIP | 0.998 in | 25.35 mm | 0.098 in | 2.49 mm | 5.08 mm | 0.2 in | Through Hole | 10 | -55 C | 125 °C | 9 | 10-SIP | 200 mW | 2 % | |||
Bourns Inc. | 100 ppm/°C | Dual Terminator | 10-SIP | 0.998 in | 25.35 mm | 0.098 in | 2.49 mm | 5.08 mm | 0.2 in | Through Hole | 10 | -55 C | 125 °C | 10-SIP | 200 mW | 2 % | 16 | ||||
Bourns Inc. | 100 ppm/°C | Bussed | 10-SIP | 0.998 in | 25.35 mm | 0.098 in | 2.49 mm | 5.08 mm | 0.2 in | Through Hole | 10 | -55 C | 125 °C | 9 | 10-SIP | 200 mW | 2 % | 8.2 kOhms | |||
Bourns Inc. | 100 ppm/°C | Bussed | 10-SIP | 0.998 in | 25.35 mm | 0.098 in | 2.49 mm | 5.08 mm | 0.2 in | Through Hole | 10 | -55 C | 125 °C | 9 | 10-SIP | 200 mW | 2 % | 2 kOhms | |||
Bourns Inc. | 100 ppm/°C | Isolated | 10-SIP | 0.998 in | 25.35 mm | 0.098 in | 2.49 mm | 5.08 mm | 0.2 in | Through Hole | 10 | -55 C | 125 °C | 5 | 10-SIP | 300 mW | 2 % | 8.2 kOhms |
