039769 Series
Manufacturer: Molex
Beta
⌘K

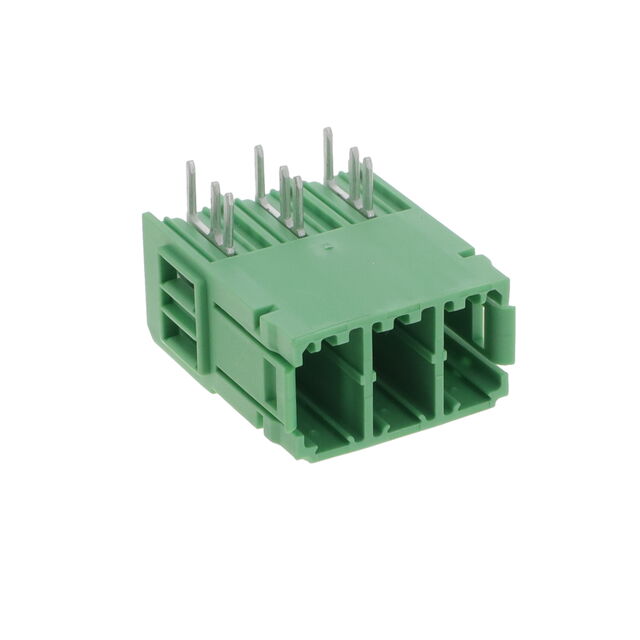

7.62MM LRG HDR HORZ GRN 3CKT
| Part | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Positions Per Level | Material Flammability Rating | Contact Mating Finish | Voltage - UL | Number of Levels | Type | Current - UL | Mounting Type | Header Orientation | Contact Tail Length | Contact Tail Length | Contact Material | Color | Insulation Height | Insulation Height | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 0.3 in | 7.62 mm | -40 °C | 105 ░C | Solder | 3 | UL94 V-0 | Tin | 300 V | 1 | Header Female Sockets | 41 A | Through Hole | 90° Right Angle | 5 mm | 0.197 in | Copper Alloy | Green | 14.3 mm | 0.563 in | |
Molex | 0.3 in | 7.62 mm | -40 °C | 105 ░C | Solder | 6 | UL94 V-0 | Tin | 300 V | 1 | Header Female Sockets | 41 A | Through Hole | 90° Right Angle | 5 mm | 0.197 in | Copper Alloy | Green | 14.3 mm | 0.563 in | 6 |
