A3U-TBY Series

Catalog

SWITCH PUSHBUTTON DPDT 0.1A 30V

Part	Electrical Life	Mechanical Life	Mounting Type	Color - Actuator/Cap	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Current Rating (Amps)	Circuit	Actuator Marking	Termination Style	Actuator Type	Panel Cutout Dimensions [diameter]	Switch Function	Ingress Protection	Type

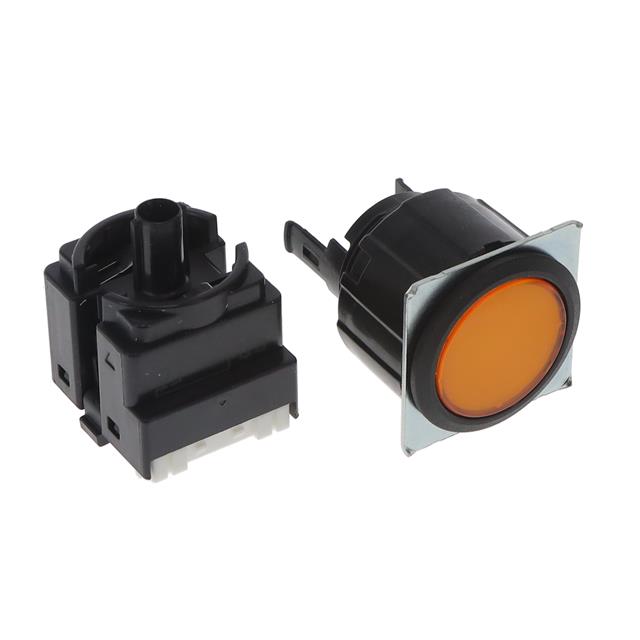

Omron Automation and Safety A3U-TBY-A2C-5M	200000 Cycles	1000000 Cycles	Panel Mount Front	Clear	-20 ░C	70 °C	30 V	100 mA	DPDT	No Marking	Connector	Button Flush Round	25.2 mm	On-Mom	IP65	Standard

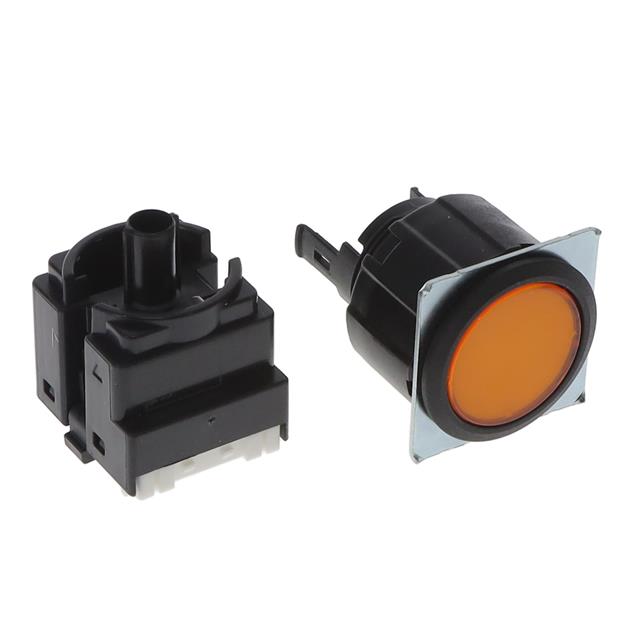

Omron Automation and Safety A3U-TBY-A1C-5M	200000 Cycles	1000000 Cycles	Panel Mount Front	Clear	-20 ░C	70 °C	30 V	100 mA	SPDT	No Marking	Connector	Button Flush Round	25.2 mm	On-Mom	IP65	Standard
Omron Automation and Safety A3U-TBY-A2C-M	200000 Cycles	1000000 Cycles	Panel Mount Front	Clear	-20 ░C	70 °C	30 V	100 mA	DPDT	No Marking	Connector	Button Flush Round	25.2 mm	On-Mom	IP40	Standard
Omron Automation and Safety A3U-TBY-A1C-M	200000 Cycles	1000000 Cycles	Panel Mount Front	Clear	-20 ░C	70 °C	30 V	100 mA	SPDT	No Marking	Connector	Button Flush Round	25.2 mm	On-Mom	IP40	Standard
