AR0603JR Series

Manufacturer: YAGEO

Catalog

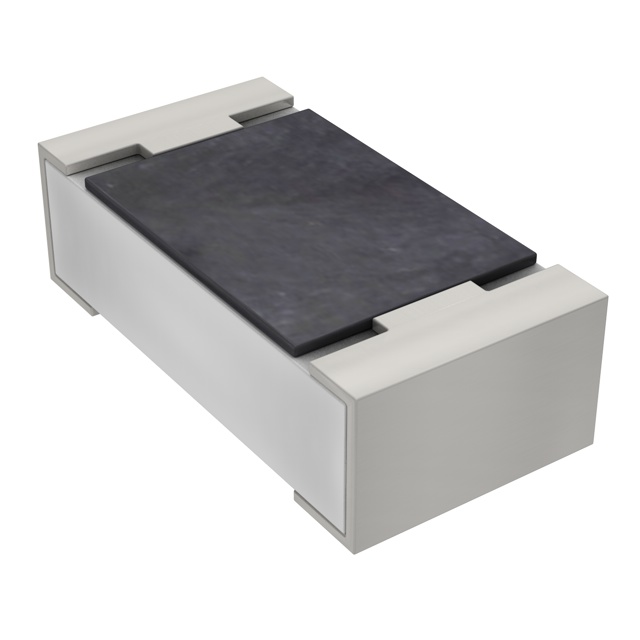

RES SMD 4.7K OHM 5% 1/10W 0603

Part	Package / Case	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Power (Watts)	Power (Watts)	Number of Terminations [custom]	Resistance	Temperature Coefficient	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Features	Composition	Operating Temperature [Max]	Operating Temperature [Min]
YAGEO AR0603JR-074K7L	1608 Metric	0603	0.55 mm	0.022 in	0.1 W	0.1 W	2	4.7 kOhms	100 ppm/°C	5 %	0.031 in	1.6 mm	0.8 mm	0.063 "	Moisture Resistant	Thick Film	155 C	-55 C
YAGEO AR0603JR-0718KL	1608 Metric	0603	0.55 mm	0.022 in	0.1 W	0.1 W	2	18 kOhms	100 ppm/°C	5 %	0.031 in	1.6 mm	0.8 mm	0.063 "	Moisture Resistant	Thick Film	155 C	-55 C
YAGEO AR0603JR-0722KL	1608 Metric	0603	0.55 mm	0.022 in	0.1 W	0.1 W	2	22 kOhms	100 ppm/°C	5 %	0.031 in	1.6 mm	0.8 mm	0.063 "	Moisture Resistant	Thick Film	155 C	-55 C
YAGEO AR0603JR-071K2L	1608 Metric	0603	0.55 mm	0.022 in	0.1 W	0.1 W	2	1.2 kOhms	100 ppm/°C	5 %	0.031 in	1.6 mm	0.8 mm	0.063 "	Moisture Resistant	Thick Film	155 C	-55 C
YAGEO AR0603JR-071K5L	1608 Metric	0603	0.55 mm	0.022 in	0.1 W	0.1 W	2	1500 Ohms	100 ppm/°C	5 %	0.031 in	1.6 mm	0.8 mm	0.063 "	Moisture Resistant	Thick Film	155 C	-55 C
YAGEO AR0603JR-07270RL	1608 Metric	0603	0.55 mm	0.022 in	0.1 W	0.1 W	2	270 Ohms	100 ppm/°C	5 %	0.031 in	1.6 mm	0.8 mm	0.063 "	Moisture Resistant	Thick Film	155 C	-55 C
YAGEO AR0603JR-07200RL	1608 Metric	0603	0.55 mm	0.022 in	0.1 W	0.1 W	2	200 Ohms	100 ppm/°C	5 %	0.031 in	1.6 mm	0.8 mm	0.063 "	Moisture Resistant	Thick Film	155 C	-55 C
YAGEO AR0603JR-073KL	1608 Metric	0603	0.55 mm	0.022 in	0.1 W	0.1 W	2	3 kOhms	100 ppm/°C	5 %	0.031 in	1.6 mm	0.8 mm	0.063 "	Moisture Resistant	Thick Film	155 C	-55 C
YAGEO AR0603JR-07390KL	1608 Metric	0603	0.55 mm	0.022 in	0.1 W	0.1 W	2	390 kOhms	100 ppm/°C	5 %	0.031 in	1.6 mm	0.8 mm	0.063 "	Moisture Resistant	Thick Film	155 C	-55 C
YAGEO AR0603JR-0727KL	1608 Metric	0603	0.55 mm	0.022 in	0.1 W	0.1 W	2	27 kOhms	100 ppm/°C	5 %	0.031 in	1.6 mm	0.8 mm	0.063 "	Moisture Resistant	Thick Film	155 C	-55 C
