KSC541 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 32V

Part	Actuator Height off PCB, Vertical [z]	Actuator Orientation	Illumination	Actuator Type	Outline [y]	Outline [x]	Switch Travel	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Features	Operating Force	Mechanical Life	Mounting Type	Contact Rating @ Voltage	Switch Function	Ingress Protection
Littelfuse/Commercial Vehicle Products KSC541G	5.6 mm	Top or Side Actuated	Non-Illuminated	Standard	6.2 mm	6.2 mm	0.25 mm 0.5 mm	SPST-NO	85 °C	-40 °C	Gull Wing	Sealed	300 gf	10000 Steps	Surface Mount	0.05 A	Off-Mom	IP50

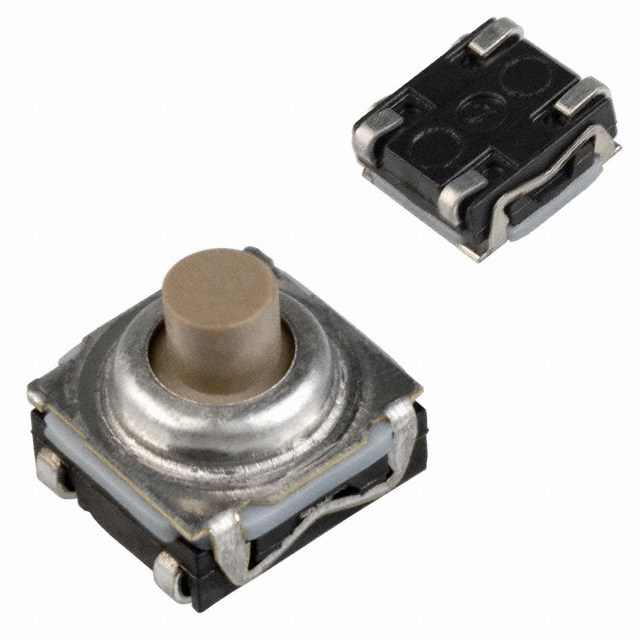

Littelfuse/Commercial Vehicle Products KSC541J ROHS	5.6 mm	Top or Side Actuated	Non-Illuminated	Standard	6.2 mm	6.2 mm	0.25 mm 0.5 mm	SPST-NO	85 °C	-40 °C	J Lead	Sealed	300 gf	10000 Steps	Surface Mount	0.05 A	Off-Mom	IP50
Littelfuse/Commercial Vehicle Products KSC541J	5.6 mm	Top or Side Actuated	Non-Illuminated	Standard	6.2 mm	6.2 mm	0.25 mm 0.5 mm	SPST-NO	85 °C	-40 °C	J Lead	Sealed	300 gf	10000 Steps	Surface Mount	0.05 A	Off-Mom	IP50
